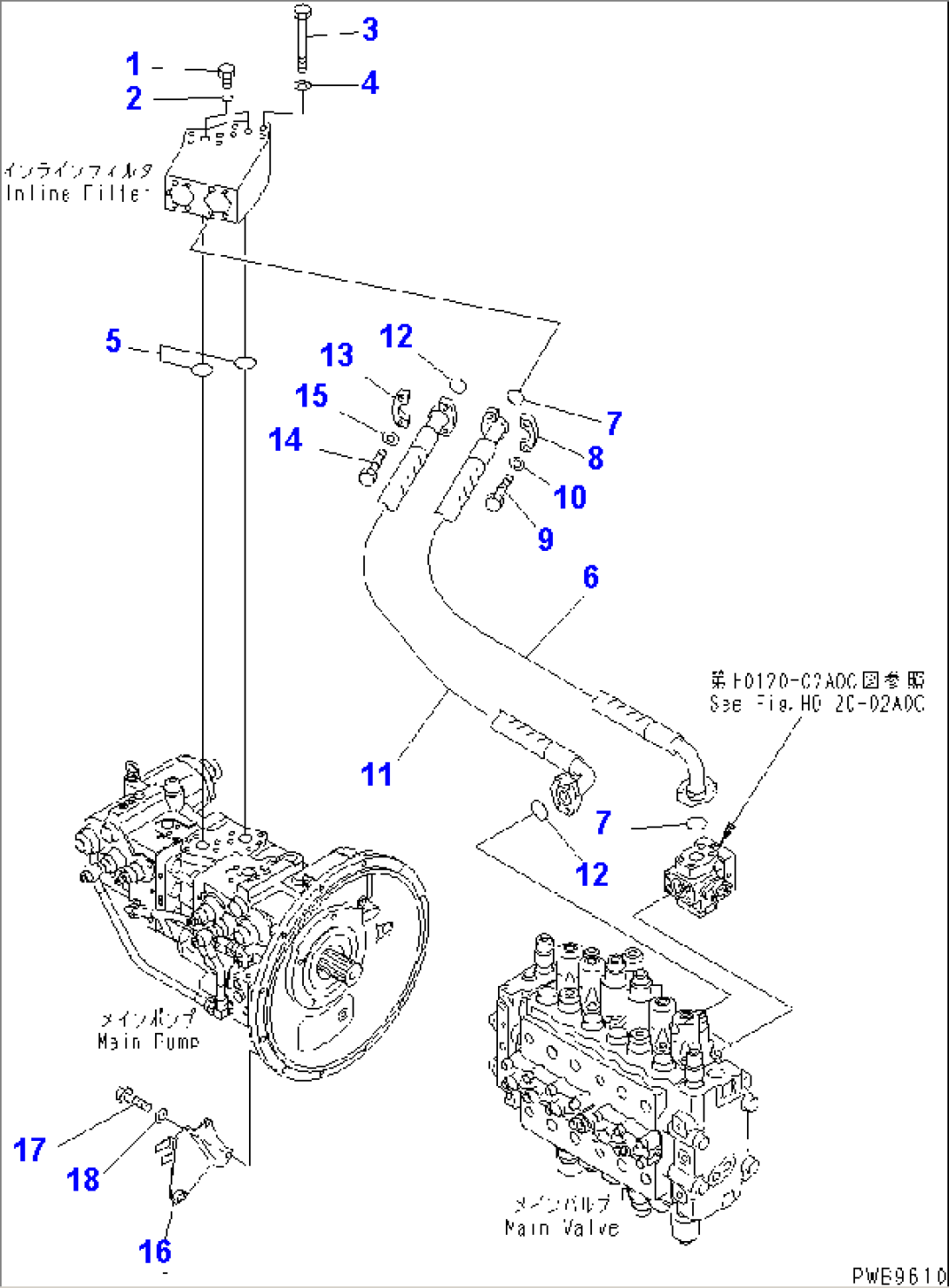

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07040-11409 | PLUG | 10247- | |
| 2 | 07002-11423 | O-RING | 10247- | |
| 3 | 01011-81010 | BOLT | 10247- | |
| 4 | 01643-51032 | WASHER | 10001- | |
| 5 | 21T-09-11470 | O-RING | 10247- | |
| 6 | 20Y-62-21451 | HOSE | 10001- | |
| 7 | 21T-09-11460 | O-RING | 10001- | |
| 8 | 07371-31049 | FLANGE | 10001- | |
| 9 | 07372-21035 | BOLT | 10001- | |
| 10 | 01643-51032 | WASHER | 10001- | |
| 11 | 20Y-62-A1460 | HOSE | 10247- | |
| 12 | 21T-09-11460 | O-RING | 10001- | |
| 13 | 07371-31049 | FLANGE | 10001- | |
| 14 | 07372-21035 | BOLT | 10001- | |
| 15 | 01643-51032 | WASHER | 10001- | |
| 16 | 20Y-62-27640 | BRACKET | 10177- | |
| 17 | 01010-81045 | BOLT | 10177- | |
| 18 | 01643-31032 | WASHER | 10177- |
