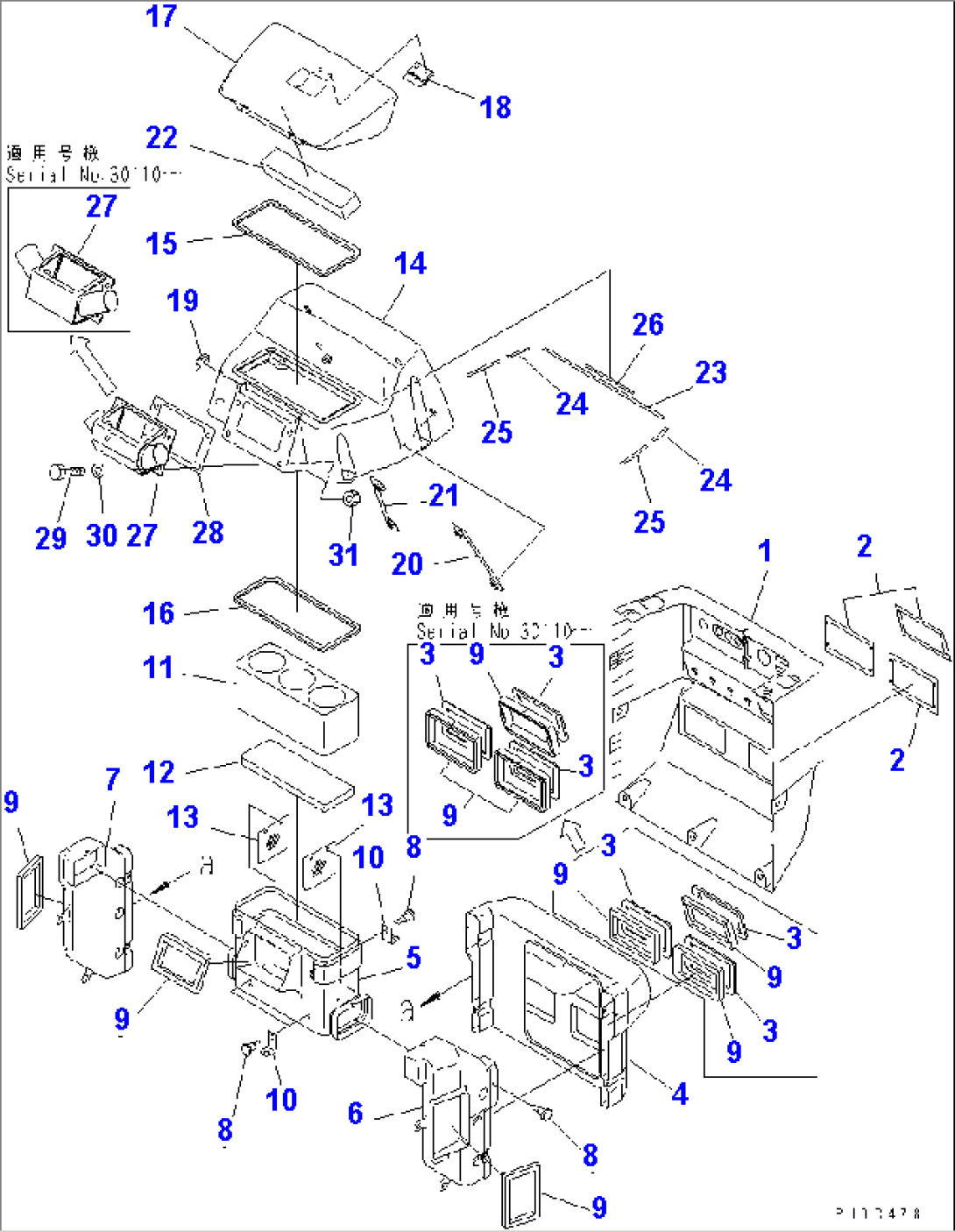

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12G-Z11-1560 | DASHBOARD ASS'Y | 30101- | |
| 2 | 12G-Z11-1620 | TAPE | 30101- | |
| 3 | 12G-Z11-1720 | SEAL | 30101- | |
| 12G-Z11-1651 | AIR DUCT ASS'Y | 30110- | ||
| 12G-Z11-1650 | AIR DUCT ASS'Y | 30101-30109 | ||
| 4 | 12G-Z11-1660 | DUCT | 30101- | |
| 5 | 14X-54-18330 | DUCT | 30101- | |
| 6 | 14X-54-18340 | DUCT | 30101- | |
| 7 | 14X-54-18350 | DUCT | 30101- | |
| 8 | 14X-54-18360 | RIVET | 30110- | |
| 14X-54-18360 | RIVET | 30101-30109 | ||
| 9 | 421-56-21230 | FINISHER | 30110- | |
| 14X-54-18370 | SEAL | 30101-30109 | ||
| 10 | 14X-54-18390 | STAY | 30101- | |
| 11 | 14X-54-18410 | CUSHION | 30101- | |
| 12 | 14X-54-18420 | CUSHION | 30101- | |
| 13 | 14X-54-18460 | NET | 30110- | |
| 14X-54-18460 | NET | 30101-30109 | ||
| 12G-Z11-1520 | METER COVER ASS'Y | 30101- | ||
| 14 | 12G-Z11-1530 | METER COVER | 30101- | |
| 15 | 14X-54-18571 | PACKING | 30101- | |
| 16 | 14X-54-18580 | SEAL | 30101- | |
| 17 | 14X-54-18530 | METER COVER CAP | 30101- | |
| 18 | 14X-54-18540 | LOCK ASS'Y | 30101- | |
| 19 | 14X-54-18551 | E-RING | 30101- | |
| 20 | 14X-54-19140 | PLATE | 30101- | |
| 21 | 14X-54-19150 | PLATE | 30101- | |
| 22 | 14X-54-18660 | CUSHION | 30101- | |
| 23 | 14X-54-18670 | FELT | 30101- | |
| 24 | 14X-54-18680 | FELT | 30101- | |
| 25 | 14X-54-18860 | FELT | 30101- | |
| 26 | 14X-54-18870 | FELT | 30101- | |
| 27 | 12G-Z11-1552 | BRACKET | 30110- | |
| 12G-Z11-1550 | BRACKET | 30101-30109 | ||
| 28 | 12G-Z11-1710 | TAPE | 30101- | |
| 29 | 01010-80620 | BOLT | 30101- | |
| 30 | 01643-30623 | WASHER | 30101- | |
| 31 | 01594-00606 | NUT | 30101- |
