| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-815-2110 | EDGE,CENTER (L=2073MM) | 50001- | |
| 2 | 421-815-1121 | EDGE,SIDE (L=546MM) | 50001- | |
| 3 | 02090-11485 | BOLT | 50001- | |
| 4 | 02290-11422 | NUT | 50001- | |
| 5 | 01643-32260 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa470 3 s/n 50001 52999 (overseas version)
- Work equipment
- Cutting edge(#50001 )
Поиск по каталогу

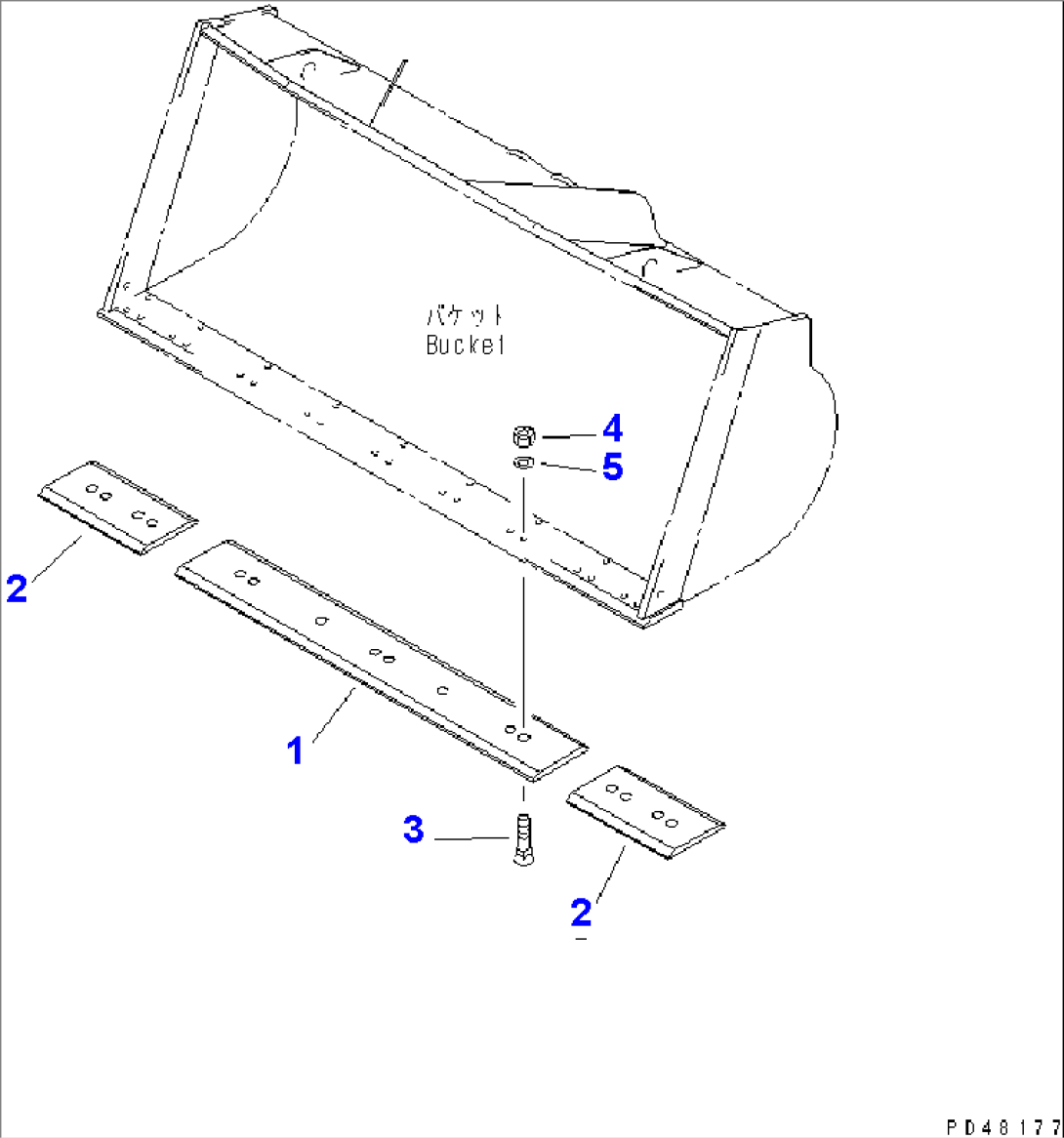

CUTTING EDGE(#50001-)
