| Item | Part No. | Part Name | Qty | Serial No. |
| (20Y-979-3712) | UNIT ASS'Y | K32001- | ||

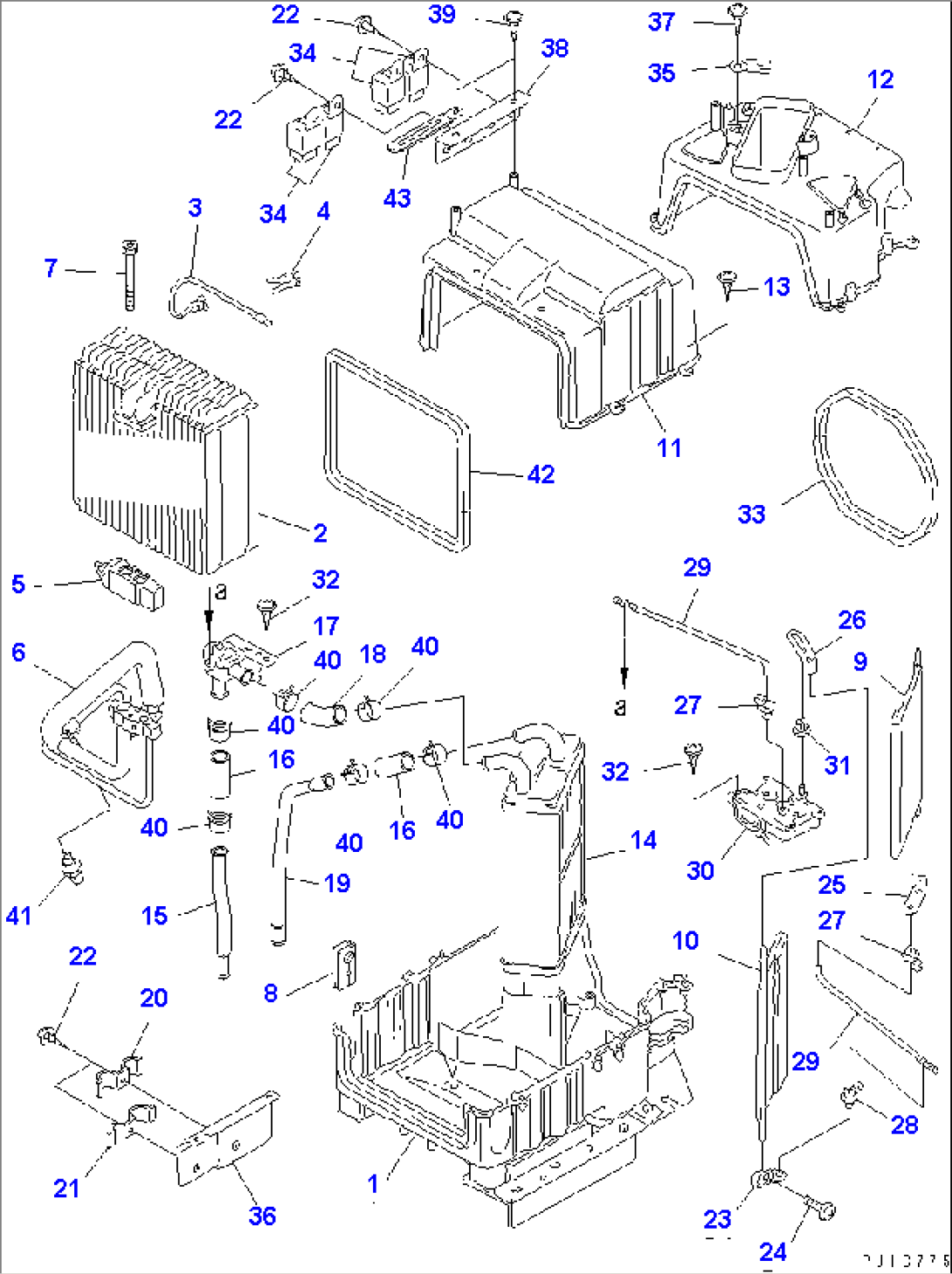

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1979-11A1 T0 Y1979-41A1. | ||||
| THE DENSO PART NUMBER IS THAT ND IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| ND445800-9056 | .CORE UNIT ASS'Y | K32001- | ||
| 1 | ND245420-4095 | ..CASE | K32001- | |
| 2 | ND447600-0651 | ..EVAPORATOR | K32001- | |
| ND949142-0030 | ...O-RING | K32001- | ||
| 3 | ND077500-0710 | ..THERMISTOR | K32001- | |
| 4 | ND246690-2840 | ..CLAMP | K32001- | |
| 5 | ND447500-1390 | .VALVE | K32001- | |
| 6 | ND446870-1990 | .TUBE | K32001- | |
| ND949142-0030 | ...O-RING | K32001- | ||
| ND949142-0010 | ...O-RING | K32001- | ||
| 7 | ND949046-2150 | ..BOLT | K32001- | |
| 8 | ND146984-5680 | ..GROMMET | K32001- | |
| 9 | ND116730-0490 | ..DOOR ASS'Y | K32001- | |
| 10 | ND116730-0500 | ..DOOR ASS'Y | K32001- | |
| 11 | ND245420-6002 | ..CASE ASS'Y | K32001- | |
| 12 | ND116452-6061 | ..CASE | K32001- | |
| 13 | ND949001-1730 | ..SCREW | K32001- | |
| 14 | ND116420-2782 | ..CORE ASS'Y | K32001- | |
| 15 | ND116427-5920 | ..PIPE | K32001- | |
| 16 | 195-979-4841 | ..HOSE | K32001- | |
| 17 | ND113600-9301 | ..VALVE ASS'Y | K32001- | |
| 18 | ND017265-5480 | ..HOSE | K32001- | |
| 19 | ND116427-5930 | ..PIPE | K32001- | |
| 20 | ND246780-4220 | ..CLAMP | K32001- | |
| 21 | ND246780-4000 | ..CLAMP | K32001- | |
| 22 | ND949001-2690 | ..SCREW | K32001- | |
| 23 | ND017732-3041 | ..LEVER | K32001- | |
| 24 | ND91370-03081 | ..SCREW | K32001- | |
| 25 | ND017732-3060 | ..LEVER | K32001- | |
| 26 | ND017732-4600 | ..LEVER | K32001- | |
| 27 | 17M-911-3330 | ..BUSHING | K32001- | |
| 28 | 17M-911-3290 | ..CLAMP | K32001- | |
| 29 | ND116662-3780 | ..SHAFT | K32001- | |
| 30 | ND063700-6390 | ..SERVO MOTOR ASS'Y | K32001- | |
| 31 | 195-Z11-6280 | ..BUSHING | K32001- | |
| 32 | ND90930-05201 | ..SCREW | K32001- | |
| 33 | ND146668-4880 | ..PACKING | K32001- | |
| 34 | ND056800-3130 | ..RELAY ASS'Y | K32001- | |
| 35 | ND017660-3490 | ..BRACKET | K32001- | |
| 36 | ND146525-3990 | ..BRACKET | K32001- | |
| 37 | ND90930-05121 | ..SCREW | K32001- | |
| 38 | ND146525-4000 | ..BRACKET | K32001- | |
| 39 | ND90930-06141 | ..SCREW | K32001- | |
| 40 | ND949351-0860 | ..CLIP | K32001- | |
| 41 | ND443440-0030 | ..SWITCH | K32001- | |
| ND949142-0160 | ...O-RING | K32001- | ||
| ND949142-0040 | ...O-RING | K32001- | ||
| 42 | ND146668-2030 | ..PACKING | K32001- | |
| 43 | ND146691-2790 | ..CLAMP | K32001- |
