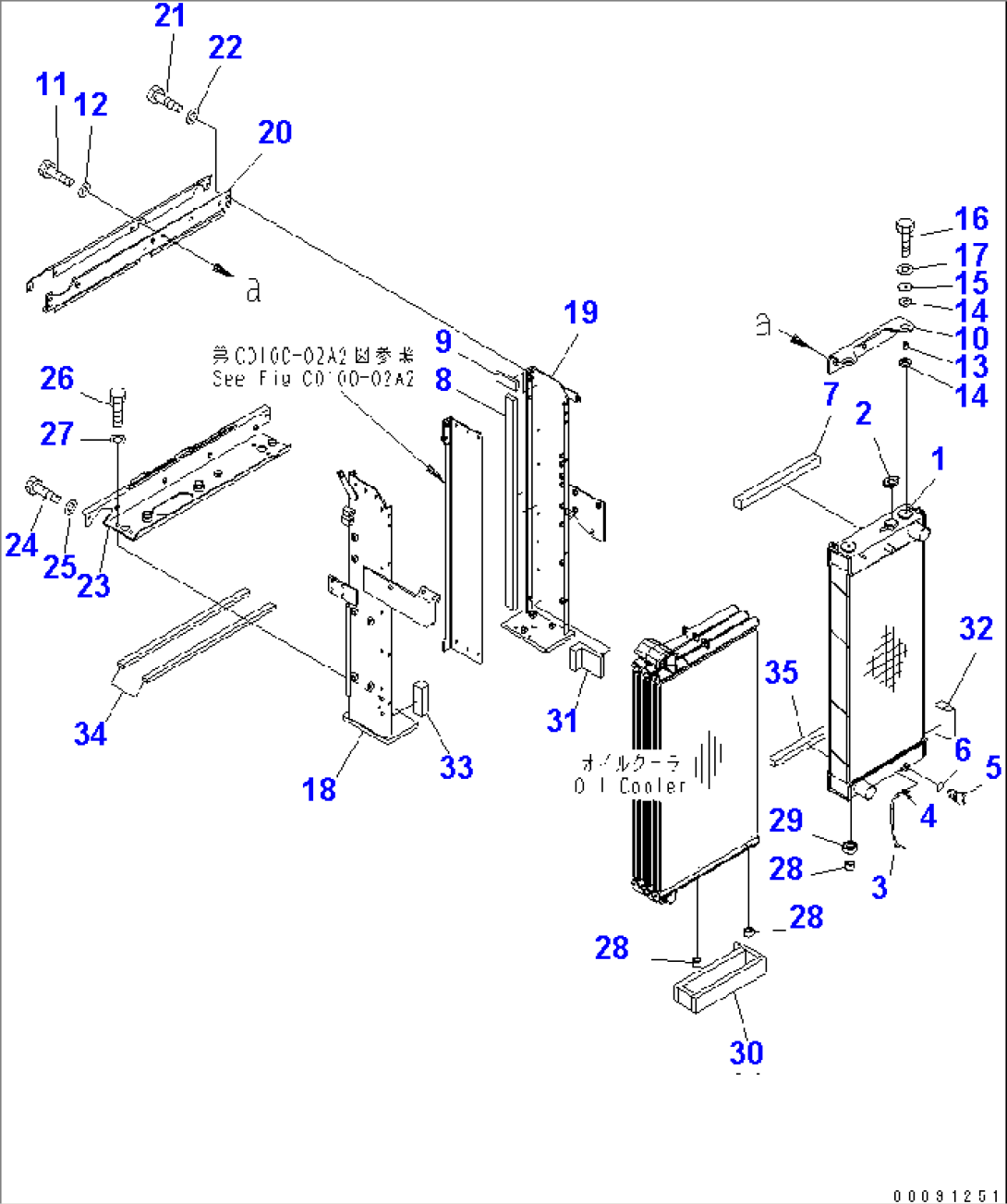

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-03-75121 | RADIATOR ASS'Y | 52049-@ | |
| 2 | 208-03-61460 | CAP | 50001-@ | |
| 3 | 205-03-71230 | HOSE | 50001-@ | |
| 4 | 20Y-03-11330 | CLIP | 50001-@ | |
| 5 | 205-03-63420 | PLUG | 50001-@ | |
| 6 | 07000-41007 | O-RING | 50001-@ | |
| 7 | 208-03-71731 | SEAL | 52049-@ | |
| 8 | 208-03-71810 | SEAL | 50001-@ | |
| 9 | 208-03-71840 | SEAL | 50001-@ | |
| 10 | 207-03-76450 | BRACKET | 52049-@ | |
| 11 | 01010-81235 | BOLT | 52049-@ | |
| 12 | 01643-31032 | WASHER | 52049-@ | |
| 13 | 14X-03-51640 | SPACER | 52049-@ | |
| 14 | 14X-03-51621 | CUSHION | 52049-@ | |
| 15 | 14X-03-51770 | WASHER | 52049-@ | |
| 16 | 01010-81055 | BOLT | 52049-52113 | |
| 17 | 01643-31032 | WASHER | 52049-52113 | |
| 18 | 208-03-72281 | FRAME | 51270-@ | |
| 19 | 208-03-72291 | FRAME | 51270-@ | |
| 20 | 208-03-71211 | FRAME | 52049-@ | |
| 21 | 01010-81225 | BOLT | 50001-@ | |
| 22 | 01643-31232 | WASHER | 50001-@ | |
| 23 | 208-03-71221 | FRAME | 50001-@ | |
| 24 | 01010-81025 | BOLT | 50001-@ | |
| 25 | 01643-31032 | WASHER | 50001-@ | |
| 26 | 01010-81020 | BOLT | 50001-@ | |
| 27 | 01643-31032 | WASHER | 50001-@ | |
| 28 | 22B-03-12590 | CUSHION | 50001-@ | |
| 29 | 208-03-71380 | CUSHION | 50001-@ | |
| 30 | 208-03-71480 | SEAL | 50001-@ | |
| 31 | 208-03-71490 | SEAL | 50001-@ | |
| 32 | 208-03-71780 | SEAL | 50001-@ | |
| 33 | 208-03-71790 | SEAL | 50001-@ | |
| 34 | 208-03-71821 | SEAL | 50001-@ | |
| 35 | 208-03-71830 | SEAL | 50001-@ |
