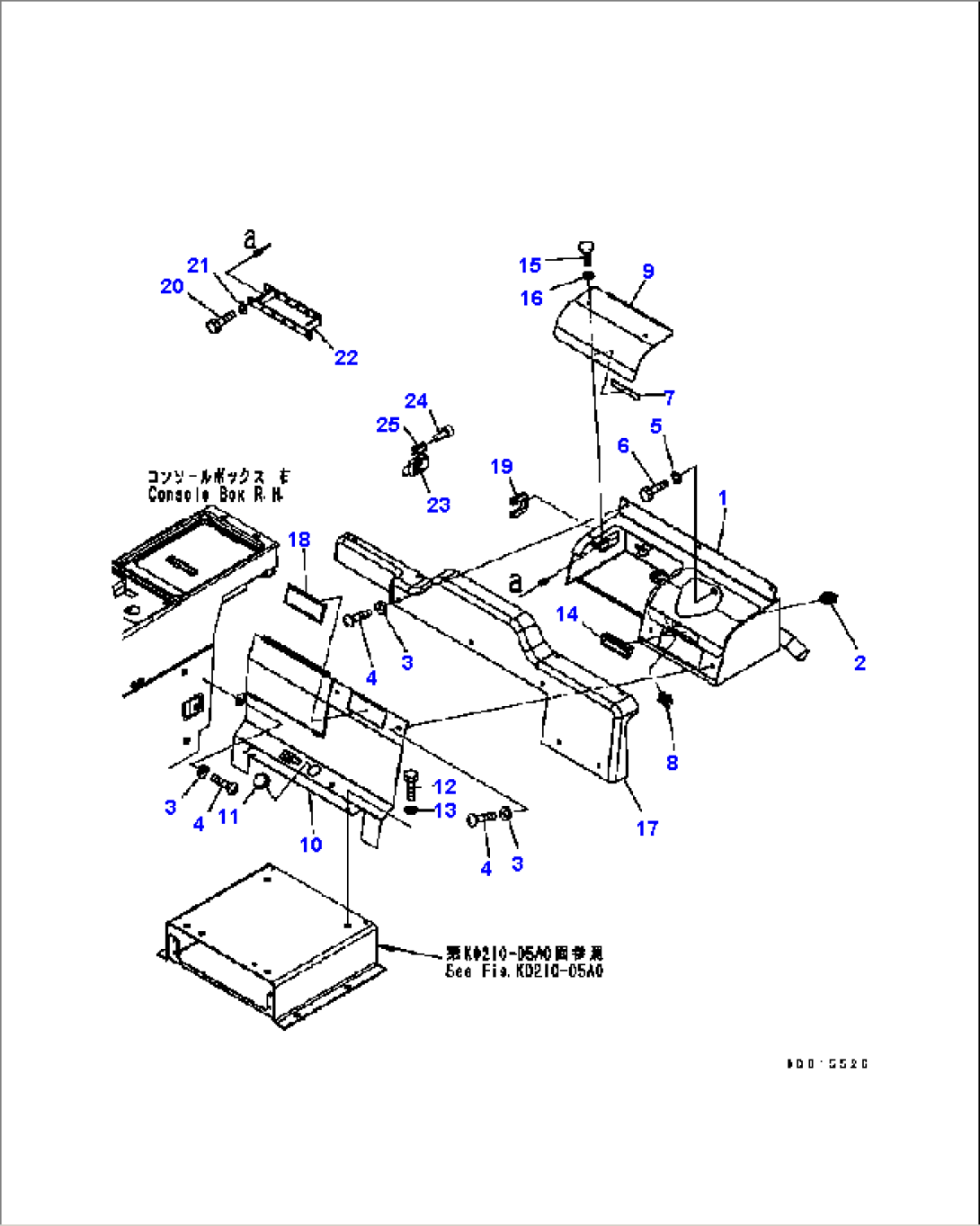

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-32323 | CONSOLE BOX | B10001- | |
| 2 | 23S-55-51530 | CLIP | B10001- | |
| 3 | 418-926-3490 | WASHER | B10001- | |
| 4 | 01225-70616 | SCREW | B10001- | |
| 5 | 01643-31032 | WASHER | B10001- | |
| 6 | 01010-81020 | BOLT | B10001- | |
| 7 | 418-54-22190 | CUSHION | B10001- | |
| 8 | 23S-55-51530 | CLIP | B10001- | |
| 9 | 418-54-32341 | COVER | B10001- | |
| 10 | 418-54-32332 | COVER | B10001- | |
| 11 | 09415-02512 | CAP | B10001- | |
| 12 | 01010-80616 | BOLT | B10001- | |
| 13 | 01643-30623 | WASHER | B10001- | |
| 14 | 421-54-22750 | HANDLE | B10001- | |
| 15 | 421-09-21260 | SCREW | B10001- | |
| 16 | 01023-70316 | SCREW | B10001- | |
| 17 | 418-54-32725 | COVER | B10001- | |
| 18 | 424-09-12610 | COVER | B10001- | |
| 19 | 421-54-22520 | FINISHER | B12299- | |
| 421-54-22520 | FINISHER | B10001-B12298 | ||
| 20 | 01010-80614 | BOLT | B10001- | |
| 21 | 01643-30623 | WASHER | B10001- | |
| 22 | 418-54-32931 | BRACKET | B10001- | |
| 23 | 419-06-31541 | WIRING HARNESS | B10001- | |
| 24 | 08191-00770 | PLUG | B10922- | |
| 08191-00770 | PLUG | B10001-B10921 | ||
| 25 | 08192-22200 | CONNECTOR | B10922- | |
| 08192-22200 | CONNECTOR | B10001-B10921 |
