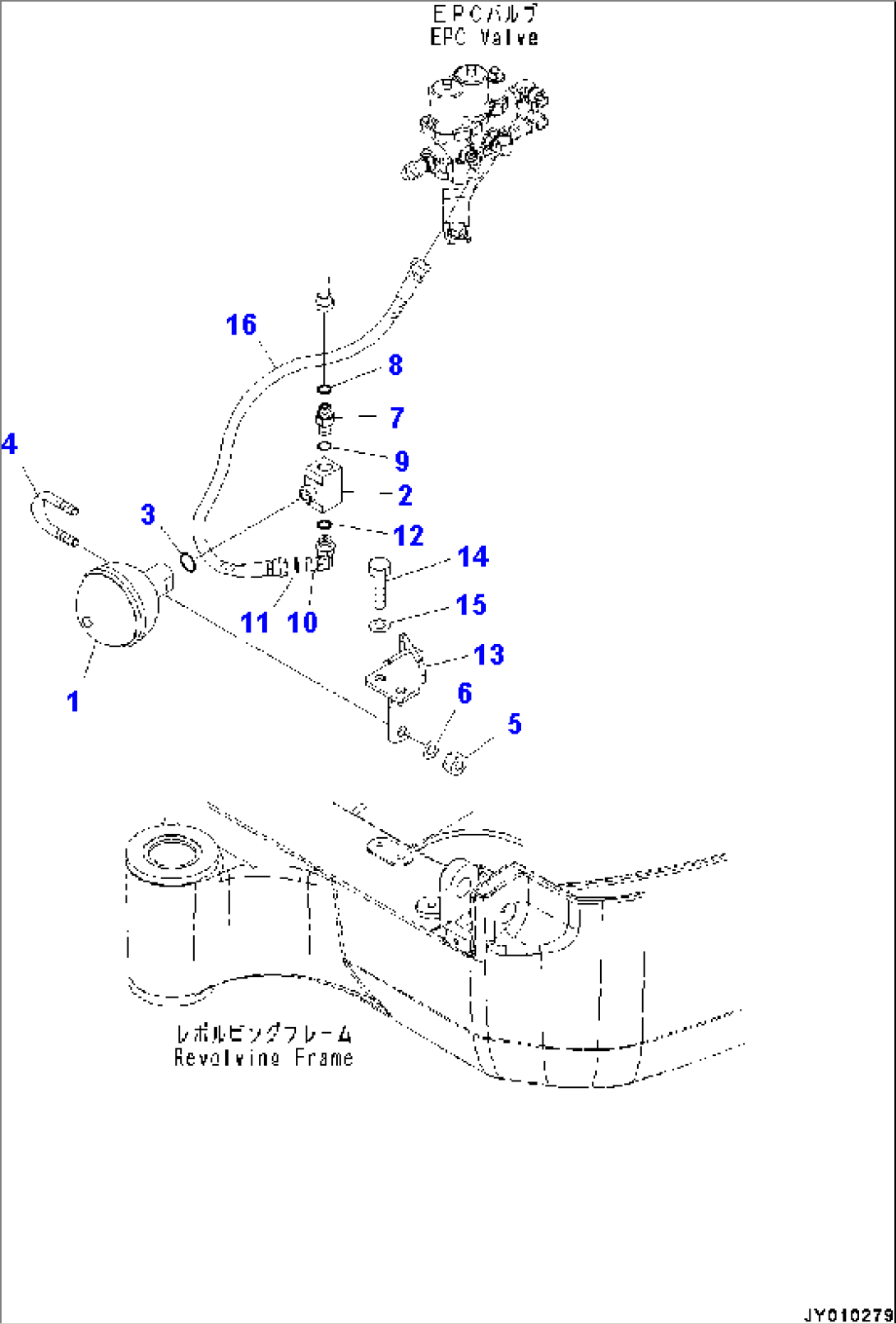

| Item | Part No. | Part Name | Qty | Serial No. |
| 22J-62-37130 | Valve Assembly | 20001-22446 | ||
| 1 | 22J-60-25600 | Valve, Solenoid | 20001-22446 | |
| 2 | 01252-60550 | Bolt | 20001-22446 | |
| 3 | 22J-62-35521 | Bracket | 20001-22446 | |
| 4 | 22L-62-29130 | Nipple | 20014-22446 | |
| 4 | 11Y-62-12140 | Nipple | 20001-20013 | |
| 5 | 02896-11008 | O-ring | 20001-22446 | |
| 6 | 22L-62-29150 | Elbow | 20014-22446 | |
| 6 | 21W-62-43970 | Elbow | 20001-20013 | |
| 7 | 02896-11008 | O-ring | 20001-22446 | |
| 8 | 22J-62-26590 | Hose | 20001-22446 | |
| 9 | 21U-62-34760 | Band, Red | 20001-22446 | |
| 9 | 21U-62-34710 | Band, Yellow | 20001-22446 | |
| 10 | 22J-62-35430 | Hose | 20001-22446 | |
| 11 | 21U-62-34750 | Band, Blue | 20001-22446 | |
| 11 | 21U-62-34710 | Band, Yellow | 20001-22446 | |
| 12 | 20U-62-26170 | Sheet | 20077-22446 | |
| 13 | 08034-20823 | Band | 20077-22446 | |
| 14 | 22J-62-36330 | Hose | 20001-22446 | |
| 15 | 22J-62-26320 | Hose | 20001-22446 | |
| 16 | 22J-62-36680 | Hose | 20001-22446 | |
| 17 | 22J-62-36670 | Hose | 20001-22446 | |
| 18 | 20P-62-72380 | Sheet | 20001-20368 | |
| 19 | 08034-20823 | Band | 20001-20368 | |
| 20 | 01010-81025 | Bolt | 20001-20368 | |
| 21 | 01643-31032 | Washer | 20001-20368 |
