| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-23-20003) | TRANSMISSION ASS'Y | 53023- | ||
| (\0\714-23-20002) | TRANSMISSION ASS'Y | 51897-53022 | ||
| (714-23-20001) | TRANSMISSION ASS'Y | 51561-51896 | ||
| (714-23-20000) | TRANSMISSION ASS'Y | 51501-51560 | ||

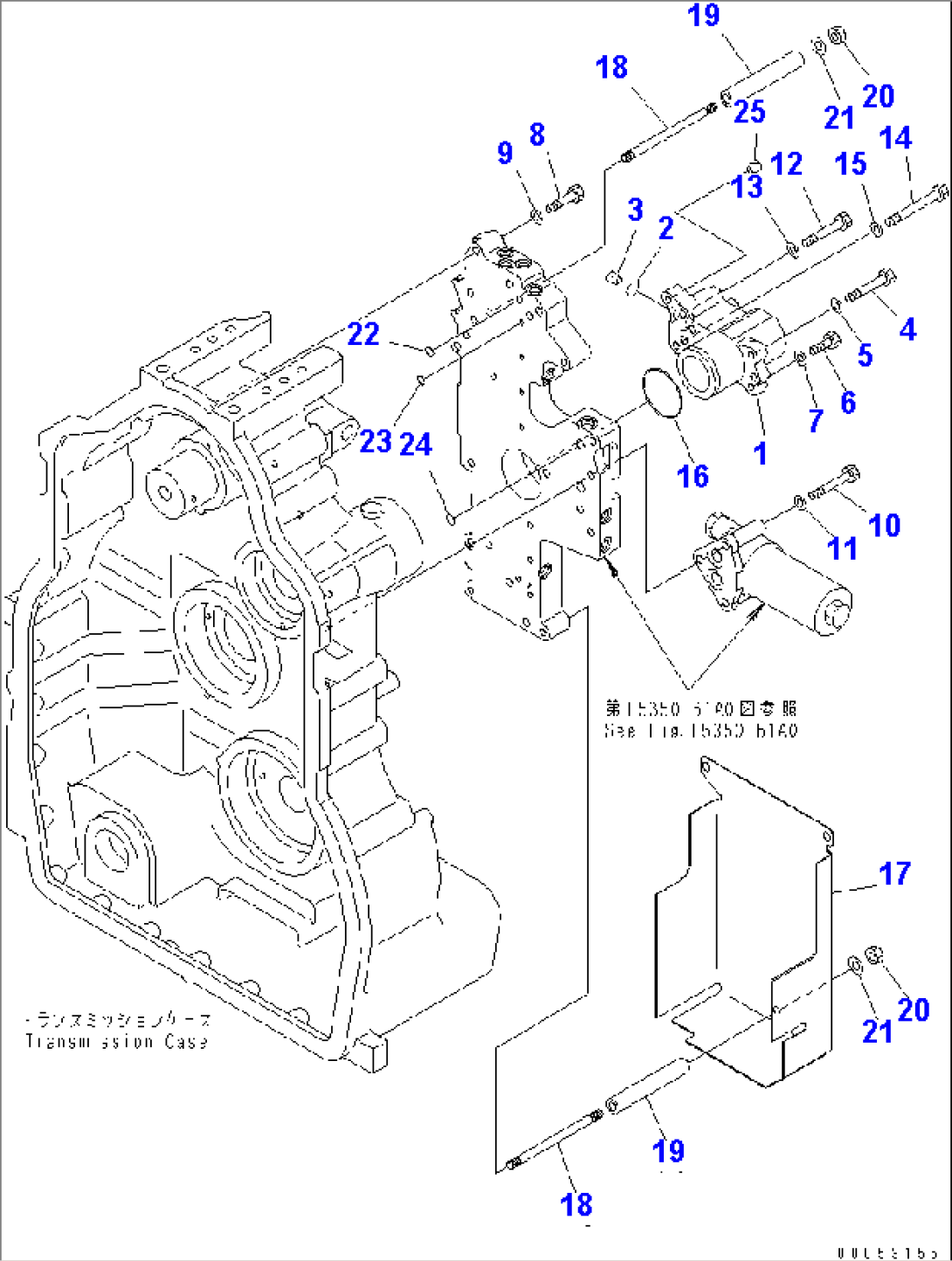

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F5350-51A0 TO F5350-71A0. | ||||
| 1 | 714-23-15810 | RETAINER | 51501- | |
| 2 | 07000-72015 | O-RING (K1) | 51501- | |
| 3 | 07043-70211 | PLUG | 51501- | |
| 4 | 01010-81075 | BOLT | 51501- | |
| 5 | 01643-31032 | WASHER | 51501- | |
| 6 | 01010-81035 | BOLT | 51501- | |
| 7 | 01643-31032 | WASHER | 51501- | |
| 8 | 01010-81055 | BOLT | 51501- | |
| 9 | 01643-31032 | WASHER | 51501- | |
| 10 | 01011-81020 | BOLT | 51501- | |
| 11 | 01643-31032 | WASHER | 51501- | |
| 12 | 01010-81075 | BOLT | 51501- | |
| 13 | 01643-31032 | WASHER | 51501- | |
| 14 | 01011-81015 | BOLT | 51501- | |
| 15 | 01643-31032 | WASHER | 51501- | |
| 16 | 07000-72065 | O-RING (K1) | 51501- | |
| 17 | 714-23-25821 | COVER | (100485)- | |
| 17 | 714-23-25820 | COVER | 51501-(100484) | |
| 18 | 714-23-25940 | STUD | 51501- | |
| 19 | 6218-21-7280 | SPACER | 51501- | |
| 20 | 01580-01008 | NUT | 51501- | |
| 21 | 01643-31032 | WASHER | 51501- | |
| 22 | 07000-72015 | O-RING (K1) | 51501- | |
| 23 | 07000-71009 | O-RING (K1) | 51501- | |
| 24 | 07000-72022 | O-RING (K1) | 51501- | |
| 25 | 07049-01012 | PLUG | (100282)- |
