| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-23-20003) | TRANSMISSION ASS'Y | 53023- | ||
| (\0\714-23-20002) | TRANSMISSION ASS'Y | 51897-53022 | ||
| (714-23-20001) | TRANSMISSION ASS'Y | 51561-51896 | ||
| (714-23-20000) | TRANSMISSION ASS'Y | 51501-51560 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F5350-51A0 TO F5350-71A0. | ||||

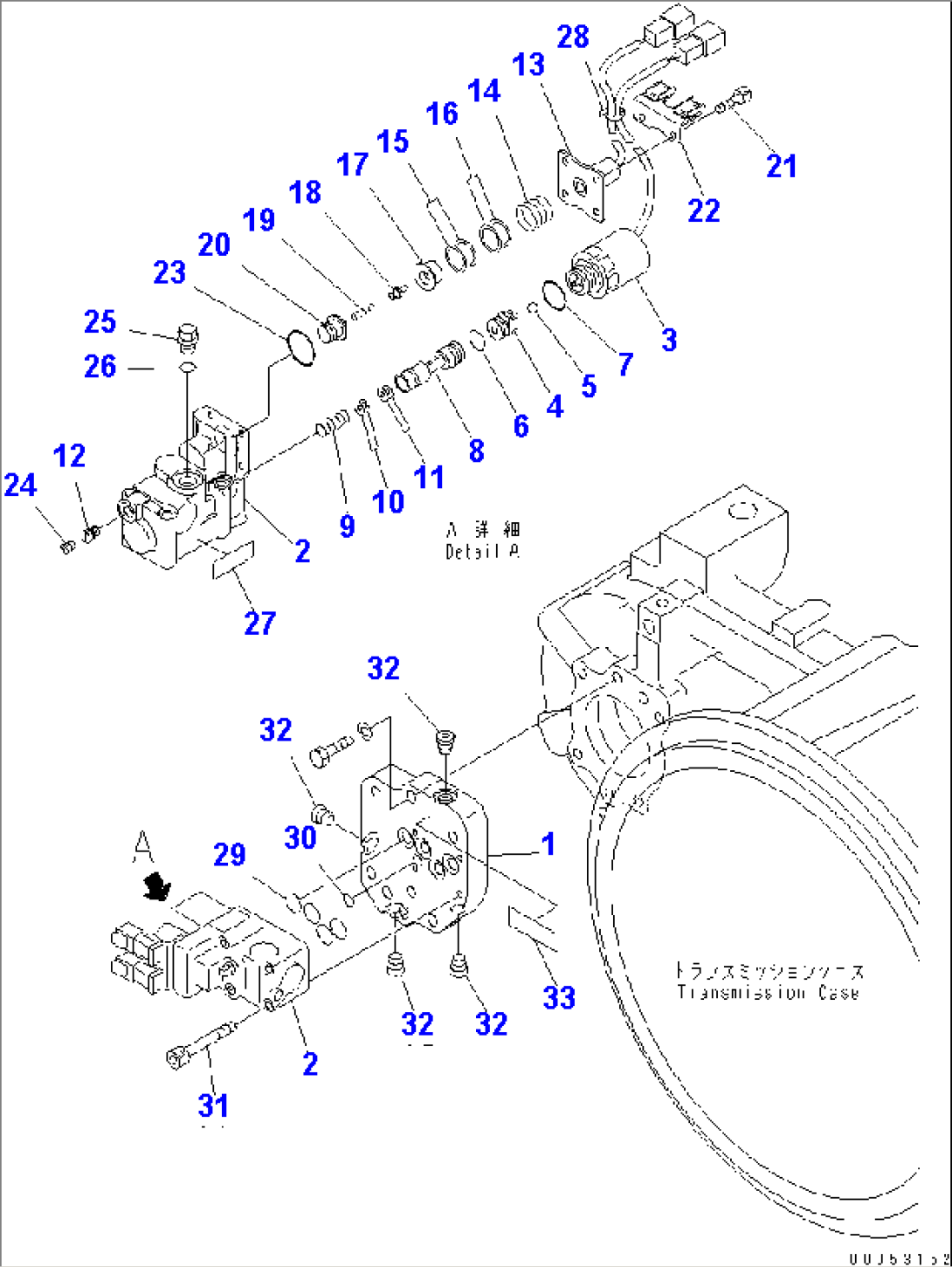

| 714-23-25201 | VALVE ASS'Y | 51501- | ||
| (\2\714-23-25200) | VALVE ASS'Y | (51501-51650) | ||
| 1 | 714-23-15112 | VALVE SEAT | 51501- | |
| 714-23-15601 | ECMV GROUP | 51501- | ||
| (\2\714-23-15600) | ECMV GROUP | (51501-51650) | ||
| 2 | \6\ | BODY | 51501- | |
| 3 | \6\ | SOLENOID | 51501- | |
| 4 | \6\ | VALVE | 51501- | |
| 5 | \6\ | BALL | 51501- | |
| 6 | \6\ | O-RING | 51501- | |
| 7 | \6\ | O-RING | 51501- | |
| 8 | \6\ | SPOOL | 51501- | |
| 9 | \6\ | SPRING | 51501- | |
| 10 | \6\ | SHIM, 0.5MM | 51501- | |
| 11 | \6\ | SHIM, 0.2MM | 51501- | |
| 12 | \6\ | PLUG | 51501- | |
| 13 | \6\ | SWITCH ASS'Y | 51501- | |
| 13 | \6\ | SWITCH ASS'Y | 51501-51650 | |
| 14 | \6\ | SPRING | 51501- | |
| 15 | \6\ | SHIM, 0.5MM | 51501- | |
| 16 | \6\ | SHIM, 0.2MM | 51501- | |
| 17 | \6\ | SPRING SEAT | 51501- | |
| 18 | \6\ | PIN | 51501- | |
| 18 | \6\ | PIN | 51501-51650 | |
| 19 | \6\ | SPRING | 51501- | |
| 20 | \6\ | SLEEVE | 51501- | |
| 21 | 01252-60510 | BOLT | 51501- | |
| 22 | 714-23-15690 | BRACKET | 51501- | |
| 23 | \6\ | O-RING | 51501- | |
| 24 | \6\ | PLUG | 51501- | |
| 25 | 708-8E-16150 | PLUG | 51501- | |
| 26 | 07002-61023 | O-RING (K2) | 51501- | |
| 27 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 51501- | |
| 28 | 08034-00310 | BAND | 51501- | |
| 29 | 07000-72015 | O-RING (K2) | 51501- | |
| 30 | 07000-71007 | O-RING (K2) | 51501- | |
| 31 | 01252-70650 | BOLT | 51501- | |
| 32 | 07043-70211 | PLUG | 51501- | |
| 33 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 51501- |
