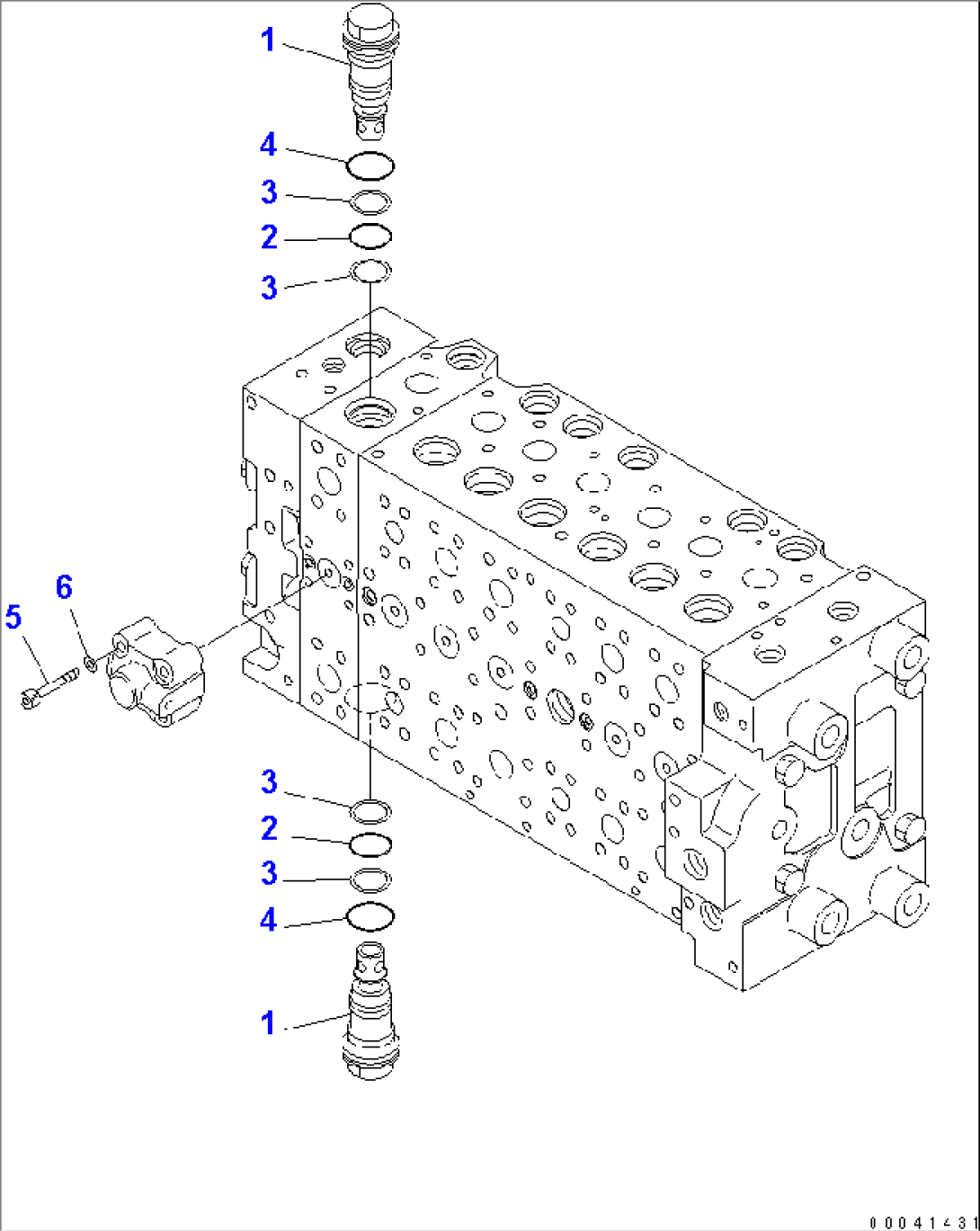

| Item | Part No. | Part Name | Qty | Serial No. |
| (723-47-24303) | VALVE ASS'Y | 25060- | ||
| (723-47-24300) | VALVE ASS'Y | 20001-25059 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-19A0. | ||||
| \6\ | BODY SUB ASS'Y | 20001- | ||
| 1 | 723-46-40500 | VALVE ASS'Y | 20001- | |
| 2 | 700-93-11320 | O-RING | 20001- | |
| 3 | 723-46-41950 | RING | 20001- | |
| 4 | 07002-13634 | O-RING | 20001- | |
| 5 | 01252-60845 | BOLT | 20001- | |
| 6 | 01643-50823 | WASHER | 20001- |
