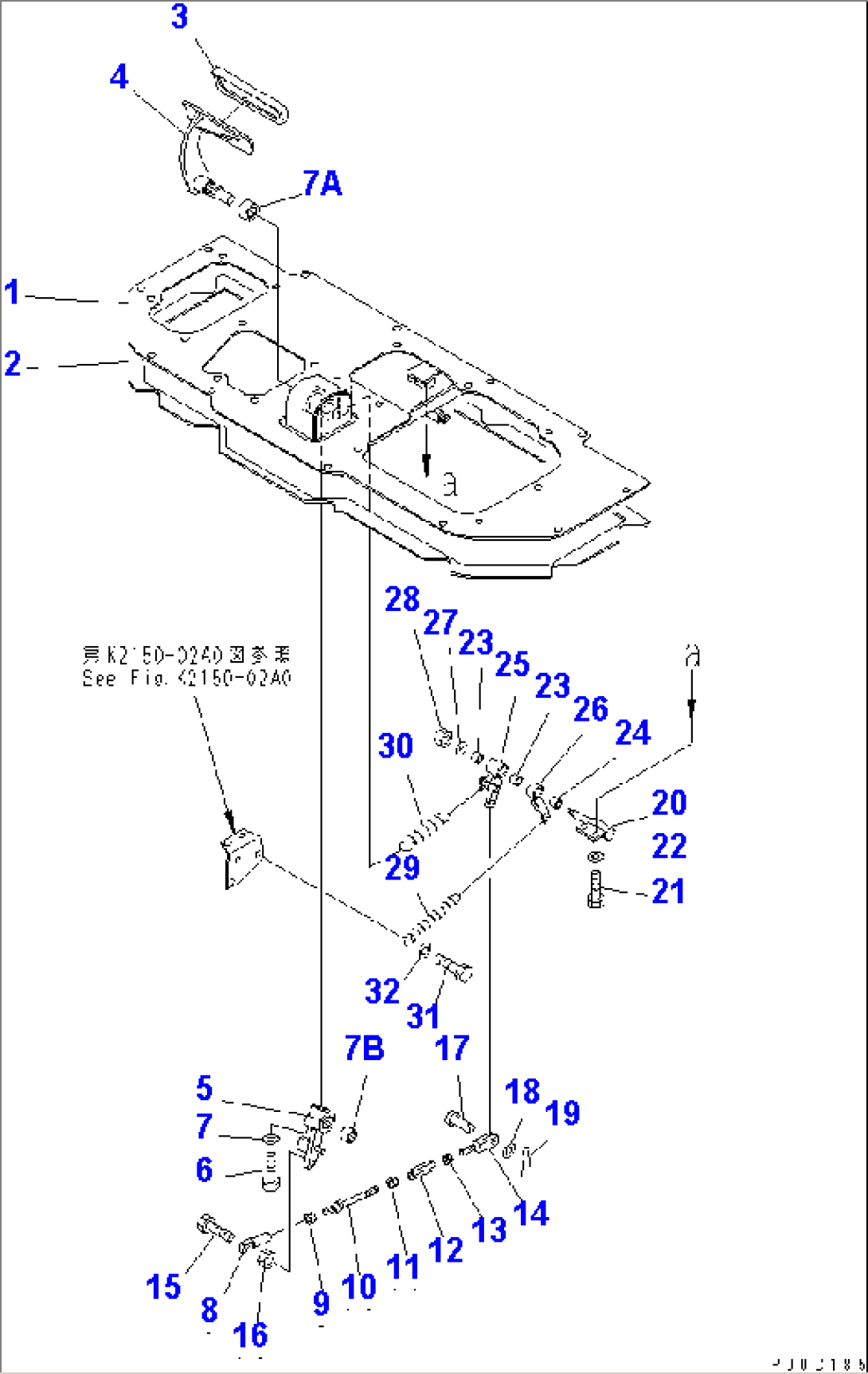

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-54-12810 | FLOOR | 5001- | |
| 2 | 11Y-54-13321 | SHEET | 5001- | |
| 3 | 14X-43-12110 | PEDAL CAP | 5001- | |
| 4 | 124-43-55110 | PEDAL | 5001- | |
| 5 | 11Y-43-11830 | LEVER | 5001- | |
| 6 | 01010-81245 | BOLT | 5001- | |
| 7 | 01643-51232 | WASHER | 5001- | |
| 7A | 06124-03020 | BEARING | 5001- | |
| 7B | 06124-02020 | BEARING | 5001- | |
| 8 | 04216-21045 | JOINT | 5001- | |
| 9 | 01583-11006 | NUT | 5001- | |
| 10 | 04248-31015 | ROD | 5001- | |
| 11 | 01508-41006 | NUT | 5001- | |
| 12 | 120-43-26180 | BUCKLE | 5001- | |
| 13 | 01583-11006 | NUT | 5001- | |
| 14 | 04244-41006 | ROD | 5001- | |
| 15 | 01010-31030 | BOLT | 5001- | |
| 16 | 01580-11008 | NUT | 5001- | |
| 17 | 04205-11030 | PIN | 5001- | |
| 18 | 01640-21016 | WASHER | 5001- | |
| 19 | 04050-13020 | PIN | 5001- | |
| 20 | 11Y-43-11612 | BRACKET | 5001- | |
| 21 | 01010-80820 | BOLT | 5001- | |
| 22 | 01643-30823 | WASHER | 5001- | |
| 23 | 06123-01414 | BEARING | 5001- | |
| 24 | 06124-01416 | BEARING | 5001- | |
| 25 | 11Y-43-11622 | LEVER | 5001- | |
| 26 | 11Y-43-11631 | LEVER | 5001- | |
| 27 | 113-43-23230 | WASHER | 5001- | |
| 28 | 01596-00807 | NUT | 5001- | |
| 29 | 11Y-43-11810 | SPRING | 5001- | |
| 30 | 417-06-13432 | SPRING | 5001- | |
| 31 | 01010-81030 | BOLT | 5001- | |
| 32 | 01580-11008 | NUT | 5001- |
