| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-23-20052 | AXLE ASS'Y | 2462- | ||
| \1\56B-23-20051 | AXLE ASS'Y | 2001-2461 | ||
| (\2\56B-23-20050) | AXLE ASS'Y | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A1 TO F3450-13A1. | ||||
| 56B-23-11050 | DIFFERENTIAL ASS'Y | 2001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3450-01A1 TO F3450-04A1. | ||||

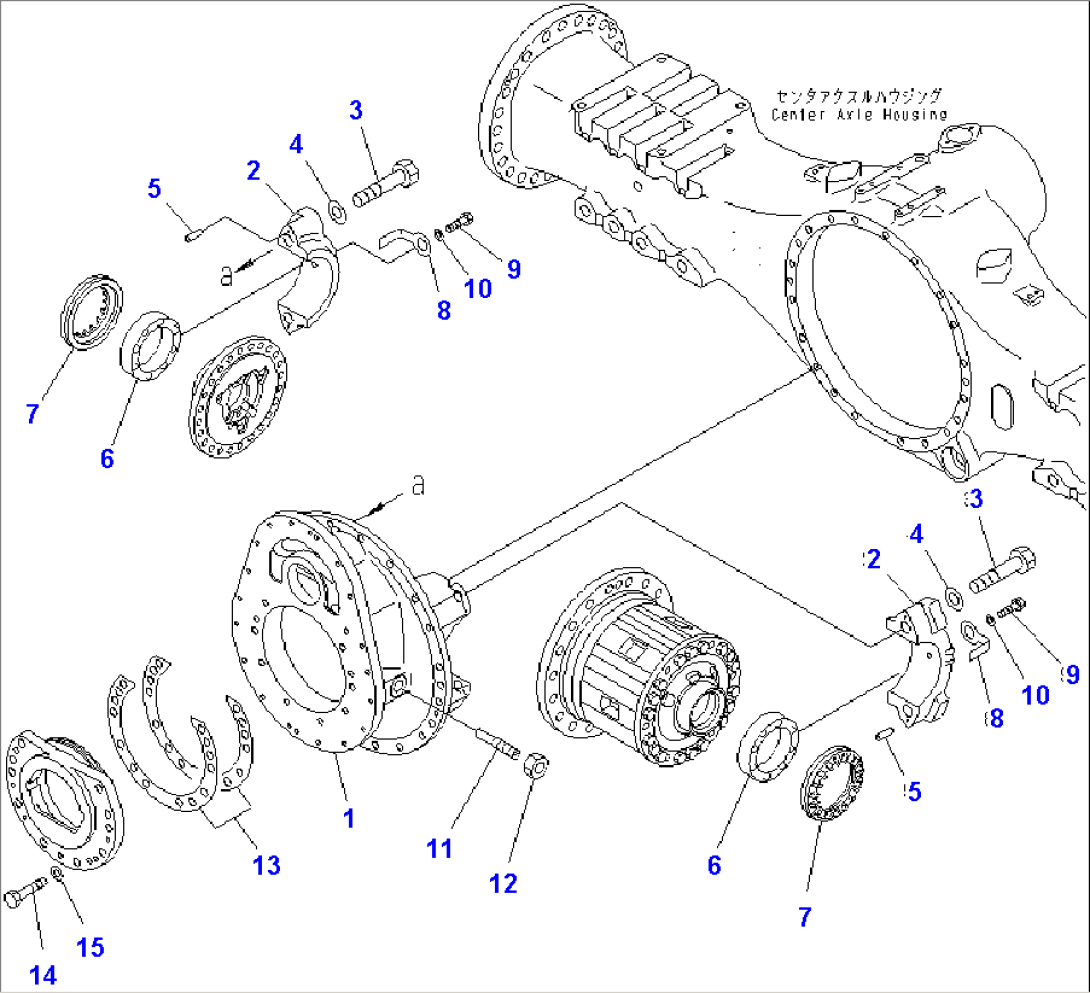

| 56B-23-11160 | CARRIER ASS'Y | 2001- | ||
| 1 | \6\ | CARRIER | 2001- | |
| 2 | \6\ | CAP | 2001- | |
| 3 | \6\ | BOLT | 2001- | |
| 4 | \6\ | WASHER | 2001- | |
| 5 | \6\ | PIN | 2001- | |
| 6 | 567-22-71180 | BEARING | 2001- | |
| 7 | 567-22-71140 | NUT | 2001- | |
| 8 | 421-22-11150 | LOCK | 2001- | |
| 9 | 01010-61435 | BOLT | 2001- | |
| 10 | 01643-31445 | WASHER | 2001- | |
| 11 | 421-22-11180 | BOLT | 2001- | |
| 12 | 01583-12414 | NUT | 2001- | |
| 13 | 56B-23-16360 | SHIM, 0.15MM | 2001- | |
| 13 | 56B-23-16370 | SHIM, 0.2MM | 2001- | |
| 13 | 56B-23-16380 | SHIM, 0.3MM | 2001- | |
| 13 | 56B-23-16390 | SHIM, 0.8MM | 2001- | |
| 14 | 01010-61655 | BOLT | 2001- | |
| 15 | 01643-51645 | WASHER | 2001- |
