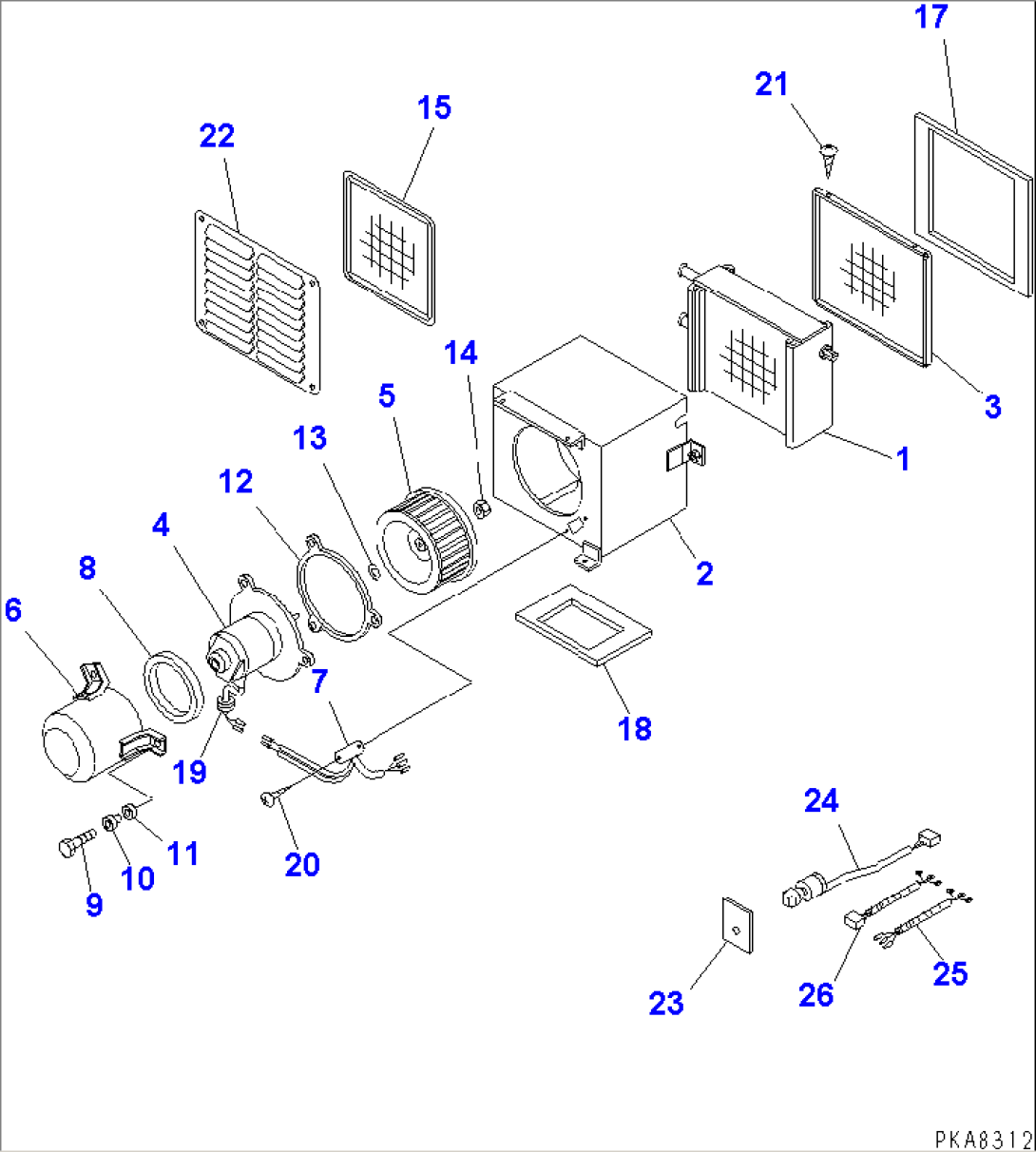

| Item | Part No. | Part Name | Qty | Serial No. |
| 113-X79-3150 | CAR HEATER ASS'Y | 62454- | ||
| 1 | ND116420-0230 | UNIT ASS'Y | 62454- | |
| 2 | ND116450-0330 | CASE ASS'Y | 62454- | |
| 3 | ND116620-0191 | PARTS SUB ASS'Y | 62454- | |
| 4 | ND162500-3950 | MOTOR ASS'Y | 62454- | |
| 5 | ND016551-0190 | FAN ASS'Y | 62454- | |
| 6 | ND116620-0370 | PARTS SUB ASS'Y | 62454- | |
| 7 | ND146810-4060 | RESISTOR | 62454- | |
| 8 | ND146623-7130 | PACKING | 62454- | |
| 9 | ND949040-2540 | BOLT | 62454- | |
| 10 | ND016657-0380 | INSERT | 62454- | |
| 11 | ND146625-0240 | BUSHING | 62454- | |
| 12 | ND016824-6000 | PACKING | 62454- | |
| 13 | ND949011-7650 | WASHER | 62454- | |
| 14 | ND949056-2230 | NUT | 62454- | |
| 15 | ND140670-0370 | FILTER ASS'Y | 62454- | |
| 17 | ND146623-7141 | PACKING | 62454- | |
| 18 | ND146623-7151 | PACKING | 62454- | |
| 19 | ND949320-3670 | GROMMET | 62454- | |
| 20 | ND90930-04121 | SCREW | 62454- | |
| 21 | ND90930-04061 | SCREW | 62454- | |
| 22 | ND116621-0881 | PLATE | 62454- | |
| 23 | ND146741-3180 | ORNAMENT | 62454- | |
| 24 | ND054000-7720 | SWITCH ASS'Y | 62454- | |
| 25 | ND017650-1380 | WIRE ASS'Y | 62454- | |
| 26 | ND017650-1390 | WIRE ASS'Y | 62454- |
