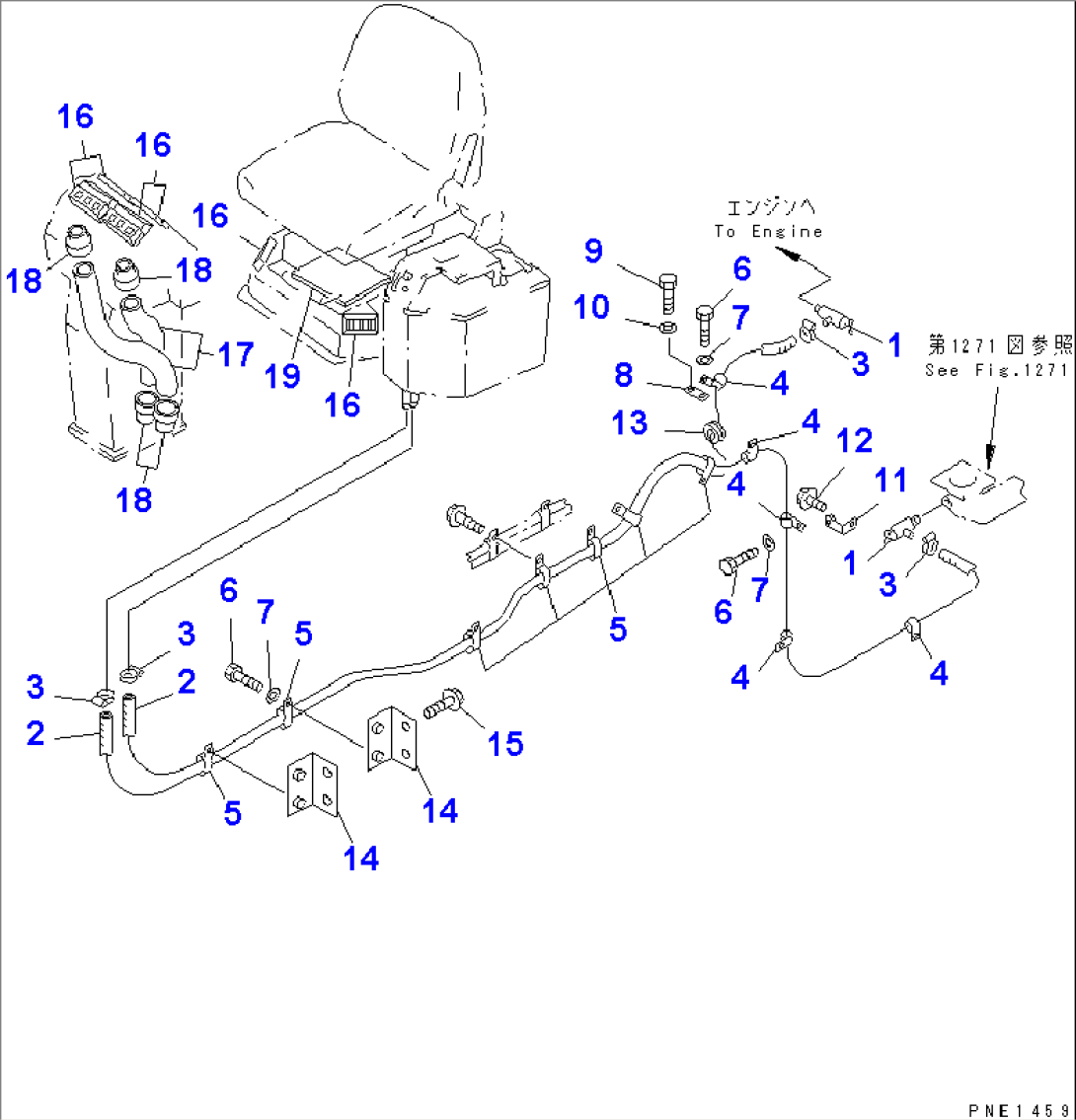

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-10000 | VALVE | 10001- | |
| 2 | 09483-00547 | HOSE | 10001- | |
| 3 | 07280-02523 | CLAMP | .- | |
| 3 | \0\07281-00259 | CLAMP | 10001-. | |
| 4 | 04434-52512 | CLIP | 10001- | |
| 5 | 421-07-11550 | CLIP | 10001- | |
| 6 | 01010-81016 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- | |
| 8 | 426-01-11310 | BRACKET | 10001- | |
| 9 | 01010-51020 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001- | |
| 11 | 427-43-11370 | BRACKET | 10001- | |
| 12 | 01435-01016 | BOLT | 10001- | |
| 13 | 425-06-12630 | GROMMET | 10001- | |
| 14 | 428-963-1161 | BRACKET | 10001- | |
| 15 | 01435-01220 | BOLT | 10001- | |
| 16 | 421-07-23870 | GRILLE | .- | |
| 16 | 421-07-12512 | GRILLE ASS'Y | 10001-. | |
| 17 | 421-07-12831 | HOSE | 10001- | |
| 18 | 421-07-12810 | CONNECTOR | 10001- | |
| 19 | 423-07-11110 | INSULATOR | 10001- |
