| Item | Part No. | Part Name | Qty | Serial No. |

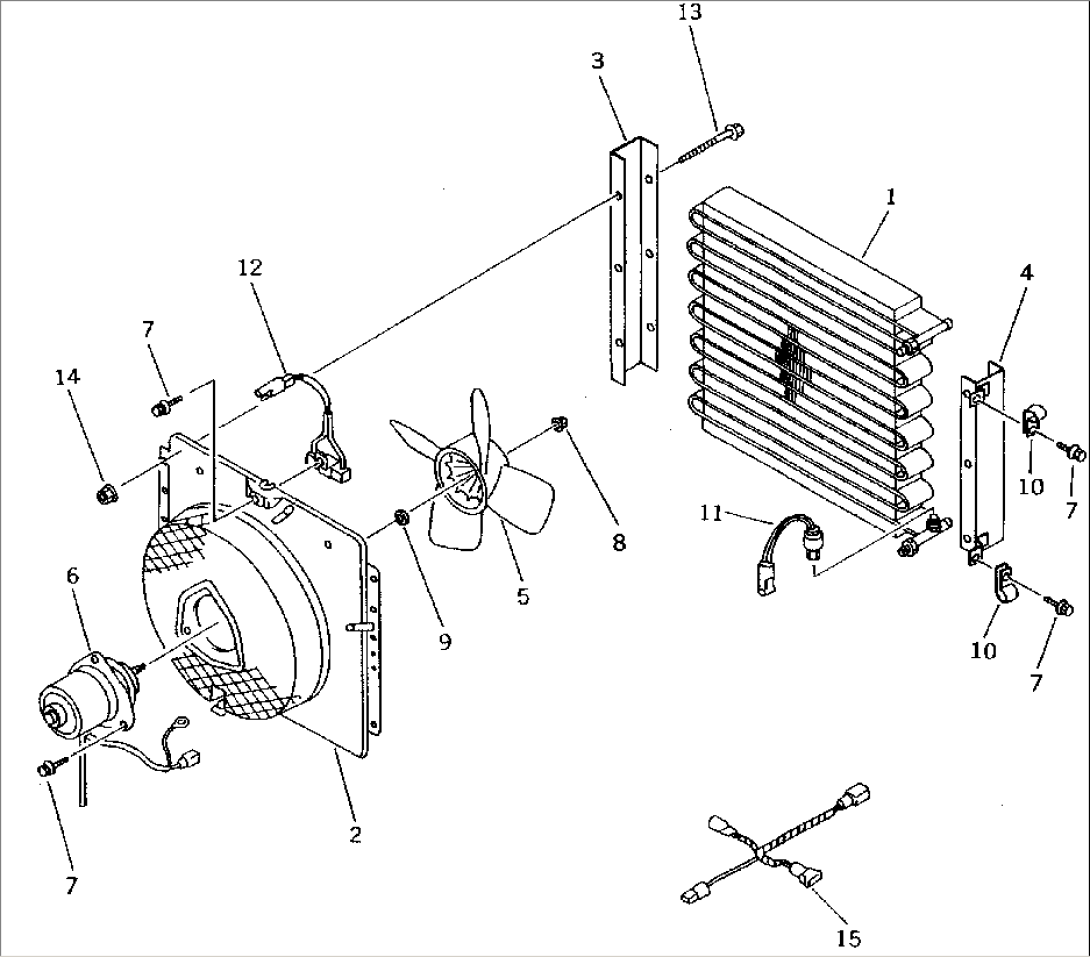

| 144-Y11-1850 | CONDENSER ASS'Y | 83403-83910 | ||
| THE DENSO PART NUMBER IS THAT ND IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| 1 | ND047710-5210 | CORE,CONDENSER | 83403-83910 | |
| 2 | 205-979-7560 | SHROUD,FAN | 83403-@ | |
| 3 | 205-979-7570 | BRACKET,CONDENSER | 83403-@ | |
| 4 | ND047750-4860 | BRACKET,CONDENSER | 83403-@ | |
| 5 | 205-979-7590 | FAN | 83403-@ | |
| 6 | ND162500-5720 | MOTOR ASS'Y | 83403-@ | |
| 7 | ND91570-06161 | BOLT,WITH WASHER | 83403-@ | |
| 8 | ND949056-2230 | NUT | 83403-@ | |
| 9 | ND949011-3040 | WASHER | 83403-@ | |
| 10 | 205-979-7630 | CLAMP,PIPING | 83403-@ | |
| 11 | ND113440-1521 | SWITCH,PRESSURE | 83403-83910 | |
| 12 | 205-979-7650 | RESISTOR,BLOWER | 83403-@ | |
| 13 | ND949047-2200 | BOLT,WITH WASHER | 83403-@ | |
| 14 | ND146982-0030 | NUT | 83403-@ | |
| 15 | 205-979-7660 | HARNESS ASS'Y | 83403-@ |
