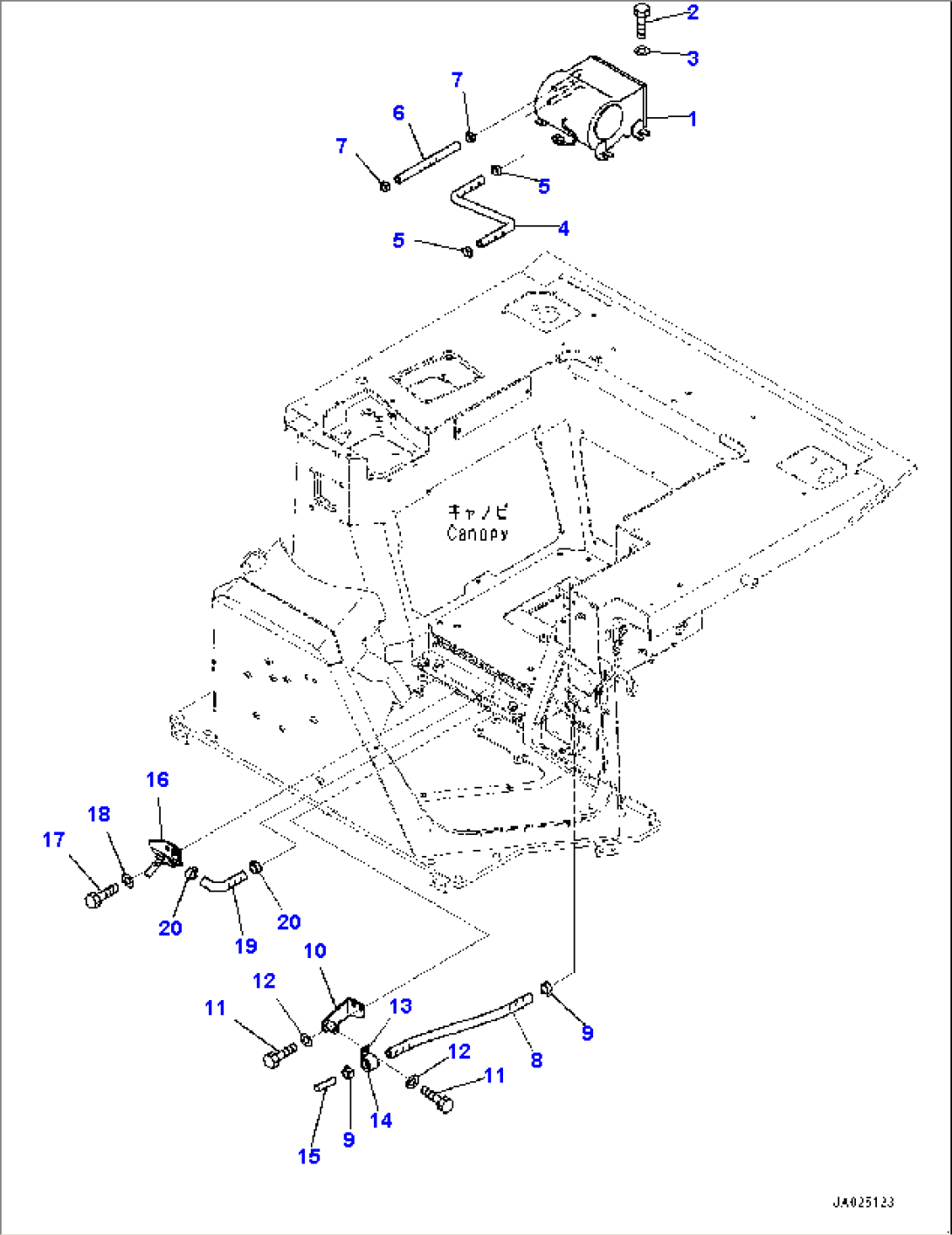

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-987-3680 | Heater Assembly | 85001- | |
| 2 | 01010-81020 | Bolt | 85001- | |
| 3 | 01643-31032 | Washer | 85001- | |
| 4 | 12Y-977-1150 | Hose | 85001- | |
| 5 | 11Y-09-11160 | Clip | 85001- | |
| 6 | 12Y-979-1380 | Hose | 85001- | |
| 7 | 11Y-09-11160 | Clip | 85001- | |
| 8 | 419-02-61290 | Hose | 85001- | |
| 9 | 09479-02400 | Clip | 85001- | |
| 10 | 11Y-Y79-3170 | Bracket | 85001- | |
| 11 | 01010-81020 | Bolt | 85001- | |
| 12 | 01643-31032 | Washer | 85001- | |
| 13 | 04434-53211 | Clip | 85001- | |
| 14 | 07095-20523 | Cushion | 85001- | |
| 15 | 09484-00560 | Connector | 85001- | |
| 16 | 11Y-Y79-3150 | Bracket | 85001- | |
| 17 | 01010-81020 | Bolt | 85001- | |
| 18 | 01643-31032 | Washer | 85001- | |
| 19 | 11Y-Y79-3160 | Hose | 85001- | |
| 20 | 09479-02400 | Clip | 85001- |
