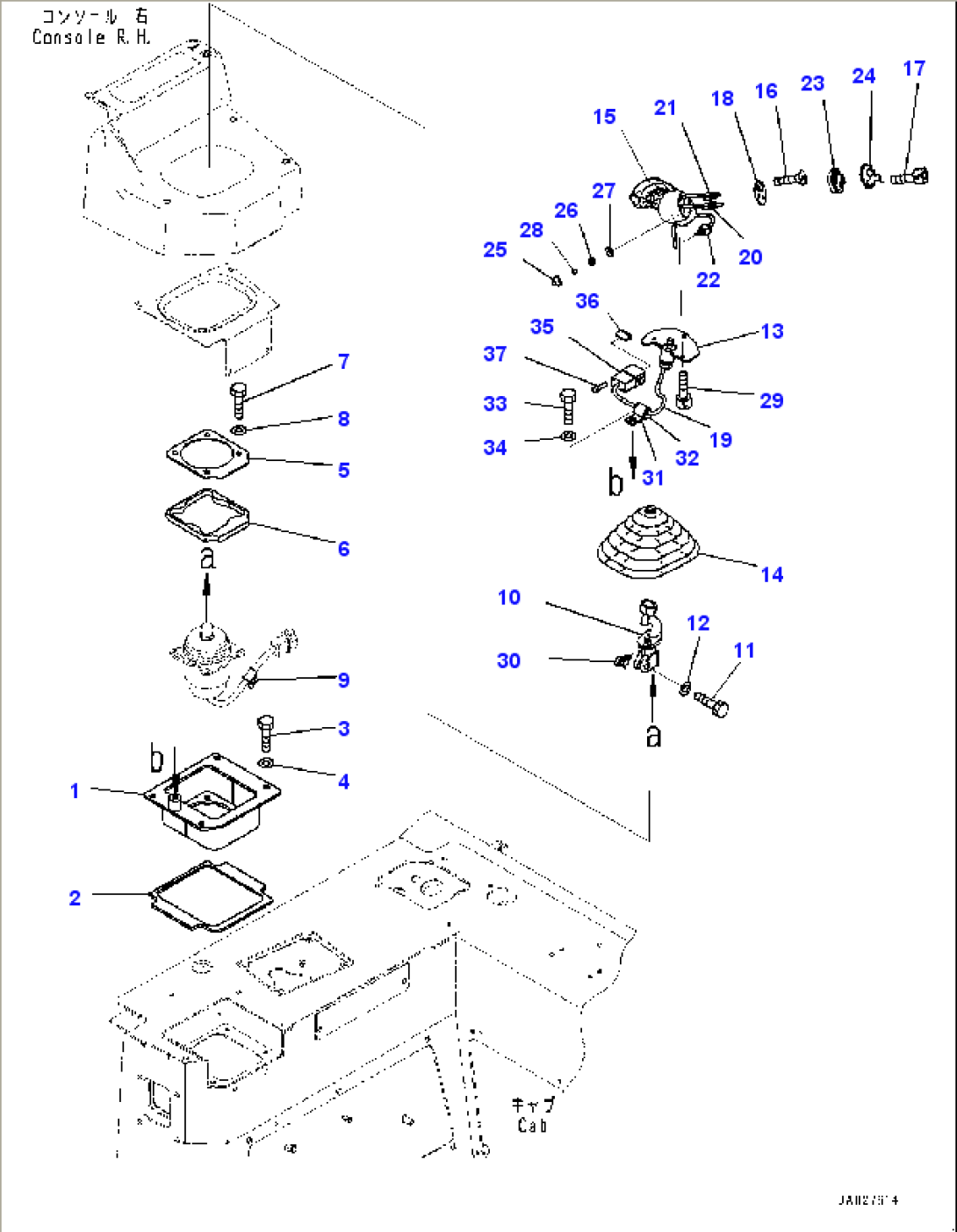

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-43-21630 | Bracket | 10001- | |
| 2 | 12Y-43-12470 | Sheet | 10001- | |
| 3 | 01010-80825 | Bolt | 10001- | |
| 4 | 01643-30823 | Washer | 10001- | |
| 5 | 12Y-43-12440 | Plate | 10001- | |
| 6 | 12Y-43-12480 | Sheet | 10001- | |
| 7 | 01010-80825 | Bolt | 10001- | |
| 8 | 01643-30823 | Washer | 10001- | |
| 9 | 04434-50810 | Clip | 10001- | |
| 10 | 12Y-43-21611 | Lever | 10001- | |
| 11 | 07372-21030 | Bolt | 10001- | |
| 12 | 01641-21016 | Washer | 10001- | |
| 13 | 12Y-43-21661 | Bracket | 10001- | |
| 14 | 17A-43-46270 | Boot | 10001- | |
| 15 | 12Y-43-31660 | Knob | 10001- | |
| 16 | Screw | 10001- | ||
| 17 | 19M-09-11510 | Bolt | 10001- | |
| 18 | 198-06-63441 | Bracket | 10001- | |
| 19 | 12Y-06-38670 | Wiring Harness | 10001- | |
| 20 | 17A-06-51330 | Switch, Blade Pitch | 10001- | |
| 21 | 17A-06-51351 | Switch, Blade Float | 10001- | |
| 22 | 17A-06-51360 | Switch, Blade Auto Pitch | 10001- | |
| 23 | 17A-43-46711 | Cover | 10001- | |
| 24 | 17A-43-46732 | Rubber | 10001- | |
| 25 | 198-06-59540 | Cover | 10001- | |
| 26 | 198-06-59311 | Nut | 10001- | |
| 27 | 198-06-59320 | Spacer | 10001- | |
| 28 | 198-06-59330 | Cap | 10001- | |
| 29 | 01252-B0510 | Bolt, Hexagon Socket Head | 10001- | |
| 30 | 20Y-06-23940 | Clip | 10001- | |
| 31 | 04434-51310 | Clip | 10001- | |
| 32 | 198-06-53520 | Cushion | 10001- | |
| 33 | 01010-81020 | Bolt | 10001- | |
| 34 | 01643-31032 | Washer | 10001- | |
| 35 | 08192-29102 | Connector Body | 10001- | |
| 36 | 08192-19300 | Wedge | 10001- | |
| 37 | 08191-00770 | Plug, Connector | 10001- |
