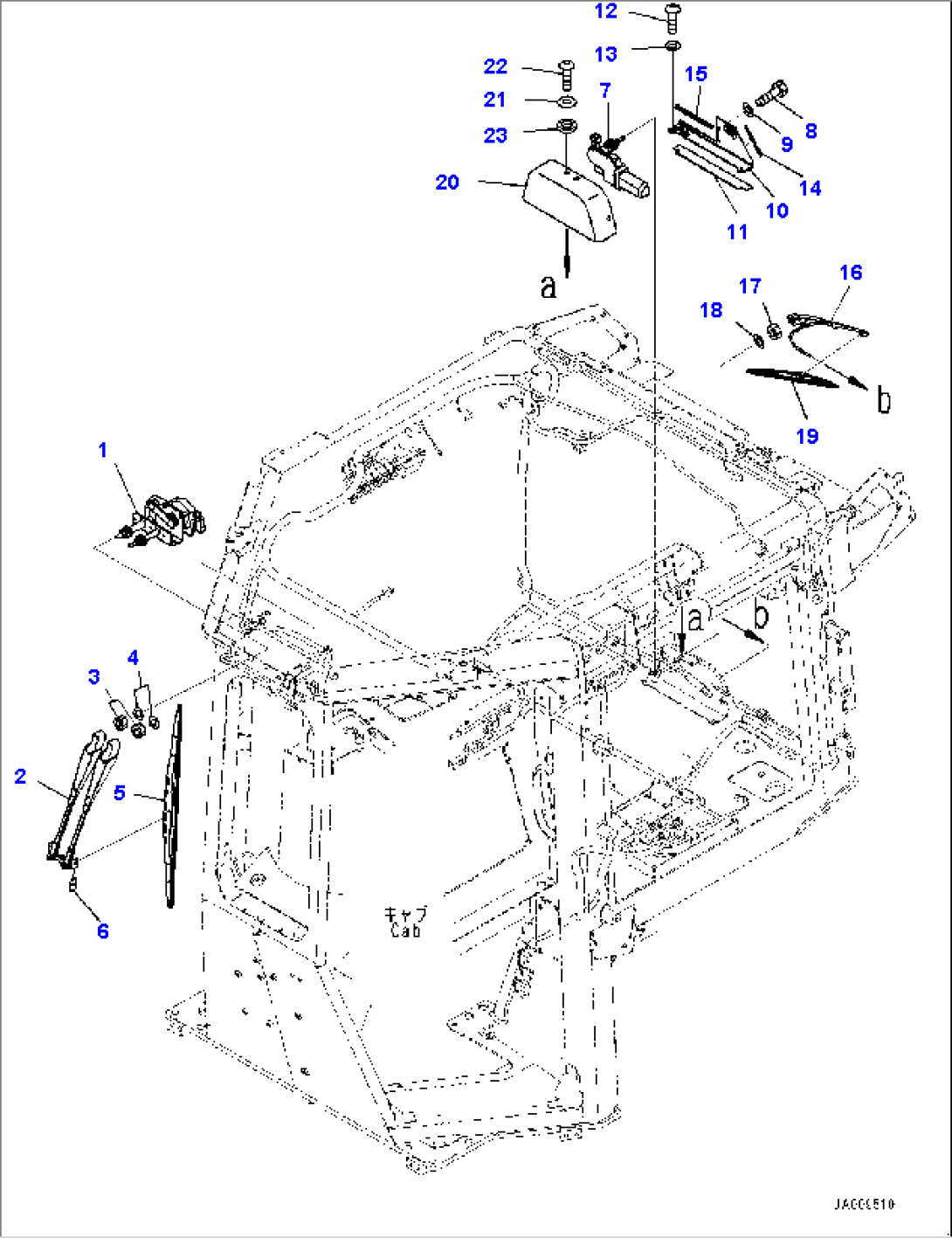

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-978-2411 | Wiper Motor | 31245- | |
| 2 | 12Y-978-2470 | Arm, Wiper | 31245- | |
| 3 | 01580-10806 | Nut | 31245- | |
| 4 | 01640-20816 | Washer | 31245- | |
| 5 | 12Y-978-2450 | Wiper Blade | 31245- | |
| 6 | 12Y-978-2460 | Shim, T=0.4mm | 31245- | |
| 7 | 12Y-978-2441 | Wiper Motor | 31245- | |
| 8 | 01010-80616 | Bolt | 31245- | |
| 9 | 01643-70623 | Washer | 31245- | |
| 10 | 12Y-978-2572 | Bracket | 31245- | |
| 11 | 12Y-978-2580 | Sheet | 31245- | |
| 12 | 01245-00825 | Screw | 31245- | |
| 13 | 01643-70823 | Washer | 31245- | |
| 14 | 12Y-06-13380 | Seal | 31245- | |
| 15 | 12Y-43-12861 | Seal | 31245- | |
| 16 | 17A-Z11-2570 | Arm, Wiper | 31245- | |
| 17 | 01580-10806 | Nut | 31245- | |
| 18 | 01640-20816 | Washer | 31245- | |
| 19 | 17A-Z11-2581 | Wiper Blade | 31245- | |
| 20 | 12Y-978-3391 | Cover | 31245- | |
| 21 | 17A-Z11-5651 | Sheet | 31245- | |
| 22 | 01245-00620 | Screw | 31245- | |
| 23 | 12Y-978-2660 | Collar | 31245- |
