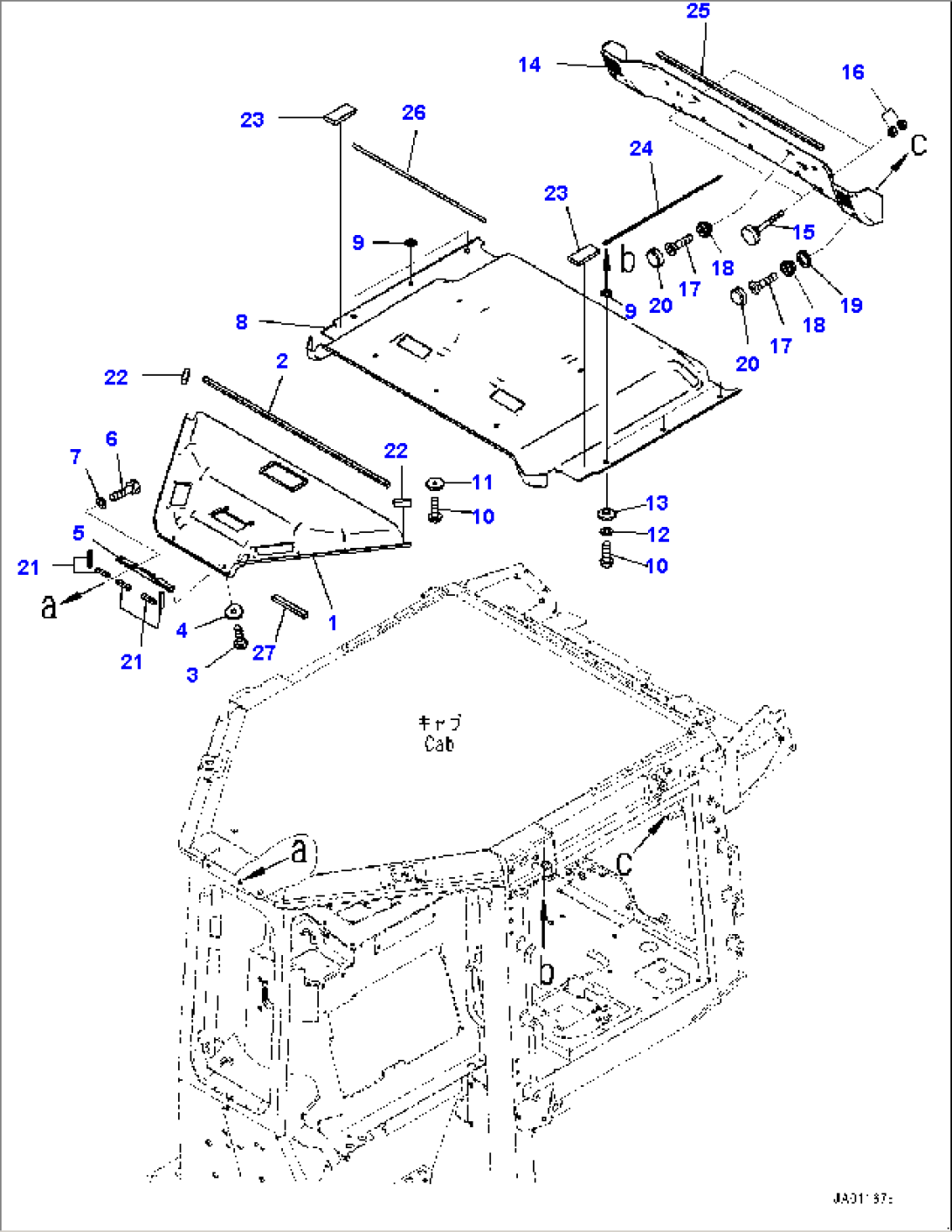

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-54-28611 | Cover | 31245- | |
| 2 | 12Y-54-28730 | Seal | 31245- | |
| 3 | 01245-00620 | Screw | 31245- | |
| 4 | 17A-Z11-2813 | Plate | 31245- | |
| 5 | 12Y-54-28580 | Plate | 31245- | |
| 6 | 01010-80616 | Bolt | 31245- | |
| 7 | 01643-30623 | Washer | 31245- | |
| 8 | 12Y-54-28621 | Cover | 31245- | |
| 9 | 17A-Z11-5651 | Sheet | 31245- | |
| 10 | 01245-00620 | Screw | 31245- | |
| 11 | 17A-Z11-2813 | Plate | 31245- | |
| 12 | 01643-70623 | Washer | 31245- | |
| 13 | 20Y-53-12310 | Collar | 31245- | |
| 14 | 12Y-54-28641 | Cover | 31245- | |
| 15 | 12Y-978-2340 | Knob | 31245- | |
| 16 | 01598-00608 | Nut | 31245- | |
| 17 | 01240-00620 | Screw | 31245- | |
| 18 | 12Y-54-28691 | Washer | 31245- | |
| 19 | 17A-Z11-5651 | Sheet | 31245- | |
| 20 | 423-925-5860 | Cap | 31245- | |
| 21 | 12Y-978-1840 | Seal | 31245- | |
| 22 | 12Y-54-28720 | Seal | 31245- | |
| 23 | 12Y-54-28740 | Seal | 31245- | |
| 24 | 12Y-54-28750 | Seal | 31245- | |
| 25 | 12Y-54-28760 | Seal | 31245- | |
| 26 | 12Y-54-28770 | Seal | 31245- | |
| 27 | 12Y-54-28790 | Seal | 31245- |
