| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-Z11-2180 | Mirror | 31245- | |
| 2 | 12Y-54-28510 | Bracket | 31245- | |
| 3 | 01245-00825 | Screw | 31245- | |
| 4 | 01643-70823 | Washer | 31245- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61pxi 23 s/n 30001 up
- Operator's compartment and control system
- Cab, rearview mirror (#31245 )
Поиск по каталогу

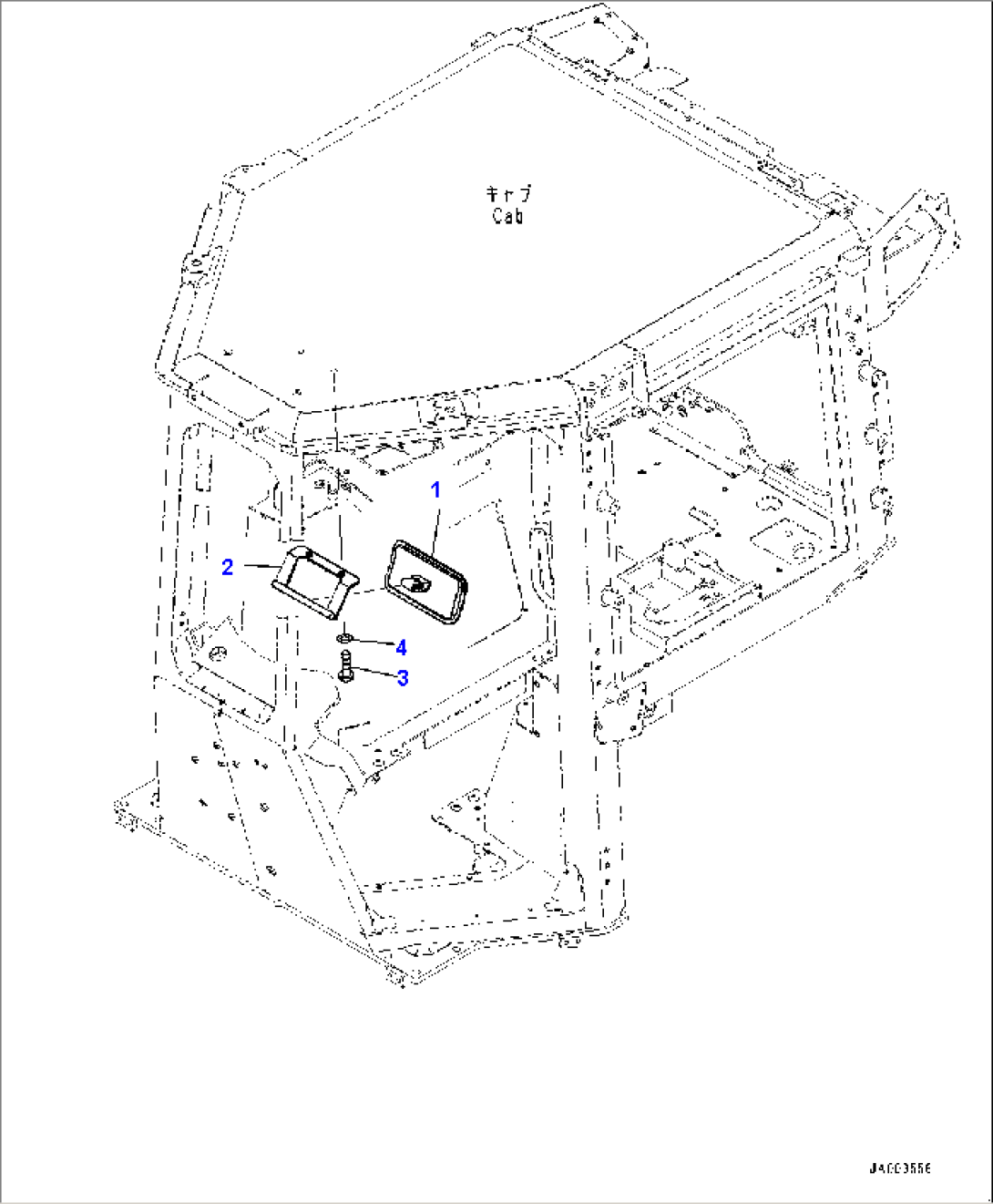

Cab, Rearview Mirror (#31245-)
