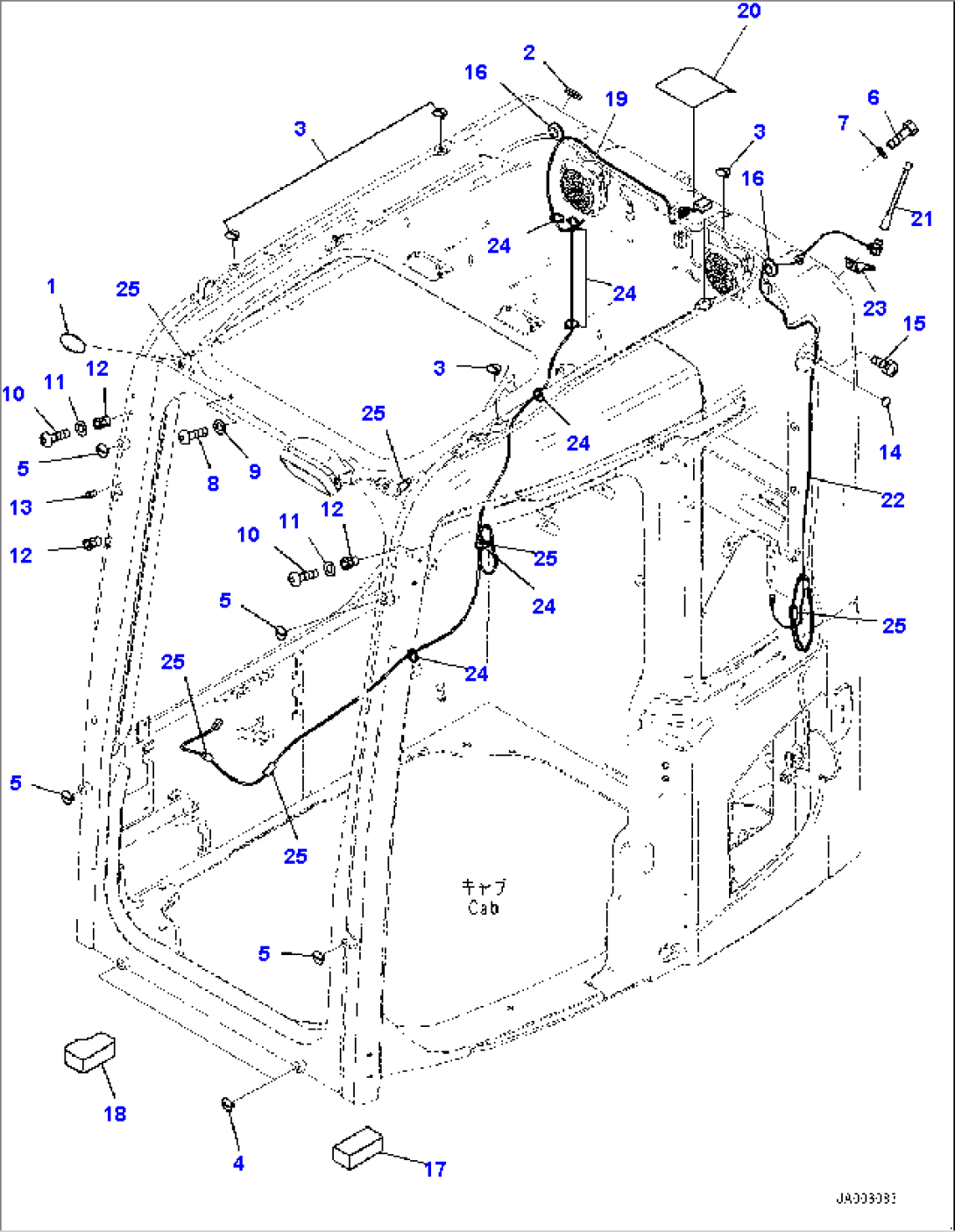

| Item | Part No. | Part Name | Qty | Serial No. |
| 22B-54-00864 | Cab Assembly | 24510-25327 | ||
| 1 | 22B-54-17282 | Cap | 24510-@ | |
| 2 | 09415-02512 | Cap | 24510-@ | |
| 3 | 20Y-53-11390 | Cap | 24510-@ | |
| 4 | 20Y-53-11390 | Cap | 24510-@ | |
| 5 | 20Y-53-11380 | Cap | 24510-@ | |
| 6 | 01010-D1220 | Bolt | 24510-@ | |
| 7 | 01643-71232 | Washer | 24510-@ | |
| 8 | 01245-01016 | Screw | 24510-@ | |
| 9 | 01643-71032 | Washer | 24510-@ | |
| 10 | 01245-00616 | Screw | 24510-@ | |
| 11 | 01643-70623 | Washer | 24510-@ | |
| 12 | 20Y-53-12260 | Nut | 24510-@ | |
| 13 | 20Y-53-12320 | Nut | 24510-@ | |
| 14 | 09415-01008 | Cap | 24510-@ | |
| 15 | 01023-20412 | Screw | 24510-@ | |
| 16 | 08037-02512 | Grommet | 24561-@ | |
| 16 | 207-54-16860 | Grommet | 24510-24560 | |
| 17 | 22B-54-28630 | Seal | 24510-@ | |
| 18 | 20Y-53-18880 | Seal | 24510-@ | |
| 19 | 8A13-10-4300 | Antenna | 24510-25327 | |
| 20 | 20Y-53-12951 | Cover | 24510-@ | |
| 21 | 8A13-10-2100 | Antenna | 24510-@ | |
| 22 | 8A13-10-2200 | Cable | 24510-@ | |
| 23 | 22B-54-28790 | Plate | 24510-@ | |
| 24 | 08034-20414 | Band, Black | 24510-@ | |
| 25 | 22B-54-28990 | Sheet | 24510-25327 | |
| 25 | 22B-54-28990 | Sheet | 24510-24510 |
