| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81270 | BOLT | 1201- | |
| 2 | 01010-81240 | BOLT | 1201- | |
| 3 | 124-54-26540 | WASHER | 1201- | |
| 4 | 01010-81230 | BOLT | 1201- | |
| 5 | 01643-31232 | WASHER | 1201- | |
| 6 | 20Y-00-11350 | PLATE | 1201- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85px 15e0 s/n 1201 11608 (ecot3) (for eu)
- Operator's compartment and control system
- Cab (installation parts)(#1201 )
Поиск по каталогу

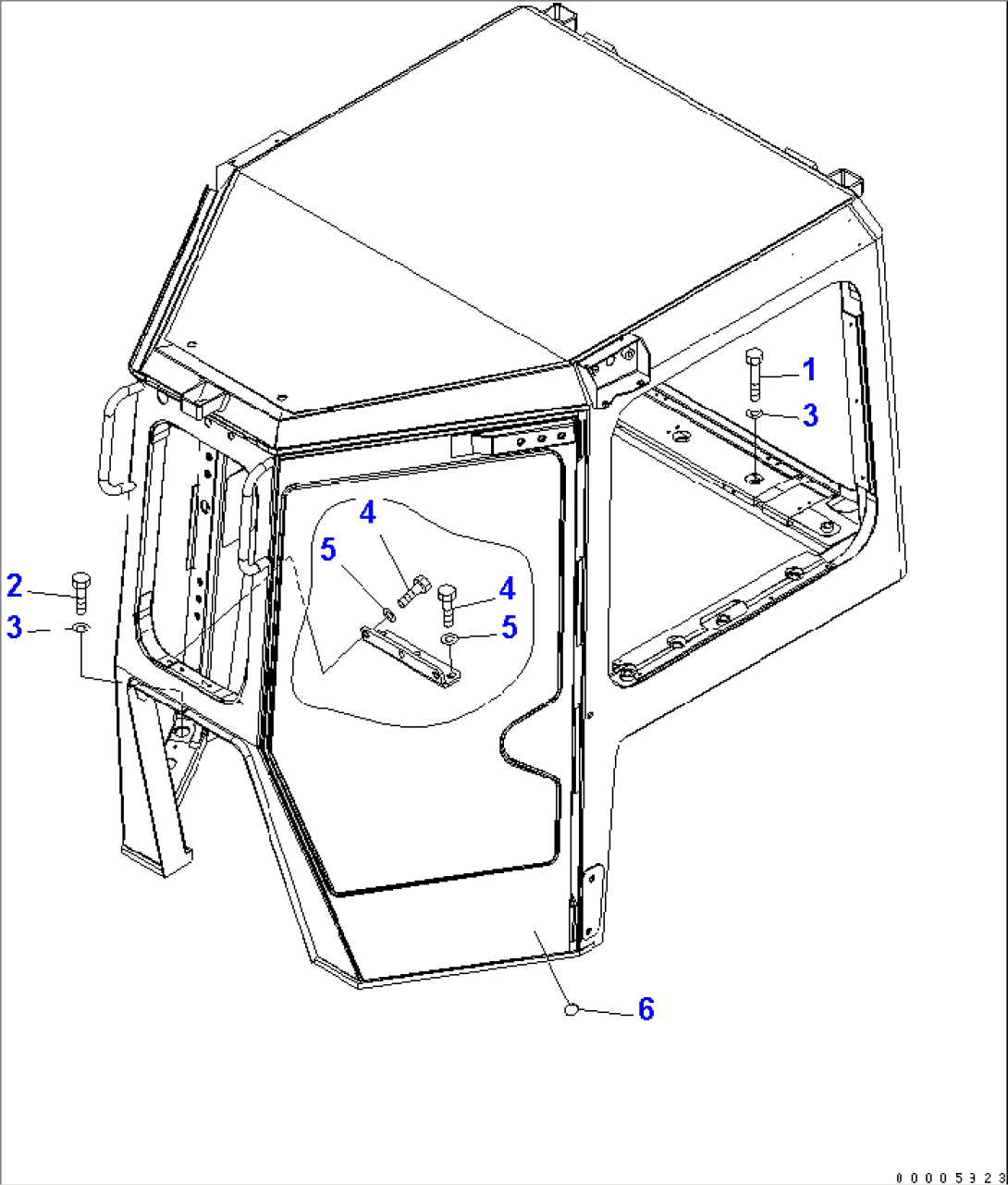

CAB (INSTALLATION PARTS)(#1201-)
