| Item | Part No. | Part Name | Qty | Serial No. |

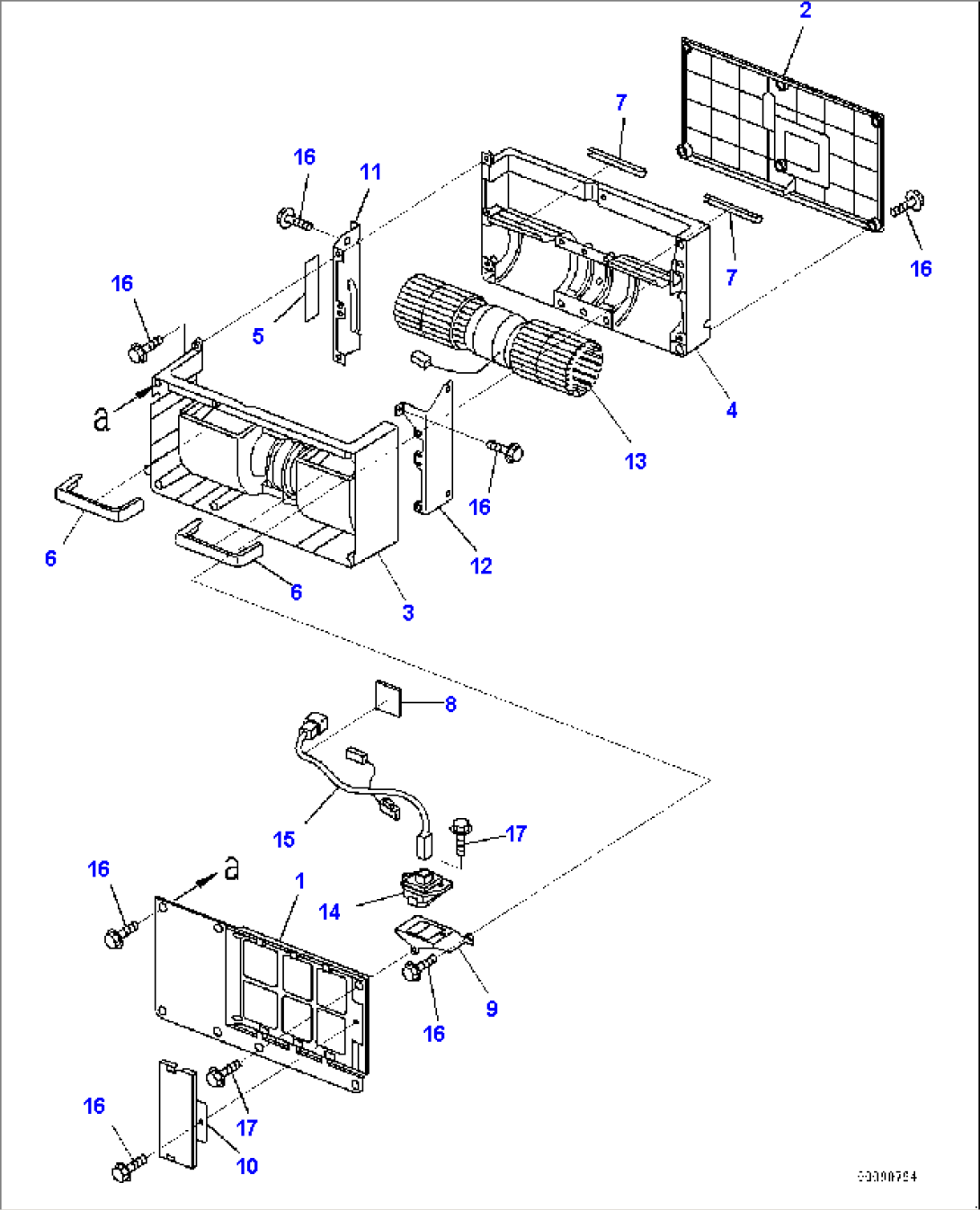

| 22M-979-3110 | Air Conditioner Assembly | 20509-21000 | ||
| 1 | AN51151-47530 | Cover | 20509-21000 | |
| 2 | AN51151-47540 | Cover | 20509-21000 | |
| 3 | AN51153-40550 | Case | 20509-21000 | |
| 4 | AN51153-40560 | Case | 20509-21000 | |
| 5 | AN51194-55050 | Insulator | 20509-21000 | |
| 6 | AN51194-55090 | Packing | 20509-21000 | |
| 7 | AN51194-55100 | Packing | 20509-21000 | |
| 8 | AN51194-55110 | Insulator | 20509-21000 | |
| 9 | AN51240-43670 | Resistor | 20509-21000 | |
| 10 | AN51240-43700 | Base | 20509-21000 | |
| 11 | AN51240-43720 | Mount | 20509-21000 | |
| 12 | AN51240-43730 | Mount | 20509-21000 | |
| 13 | AN51500-10870 | Motor Assembly | 20509-21000 | |
| 14 | AN51540-40640 | Resistor | 20509-21000 | |
| 15 | AN51552-28200 | Wiring Harness Assembly | 20509-21000 | |
| 16 | AN51852-40760 | Screw | 20509-21000 | |
| 17 | ANKB+0408BA1 | Screw | 20509-21000 |
