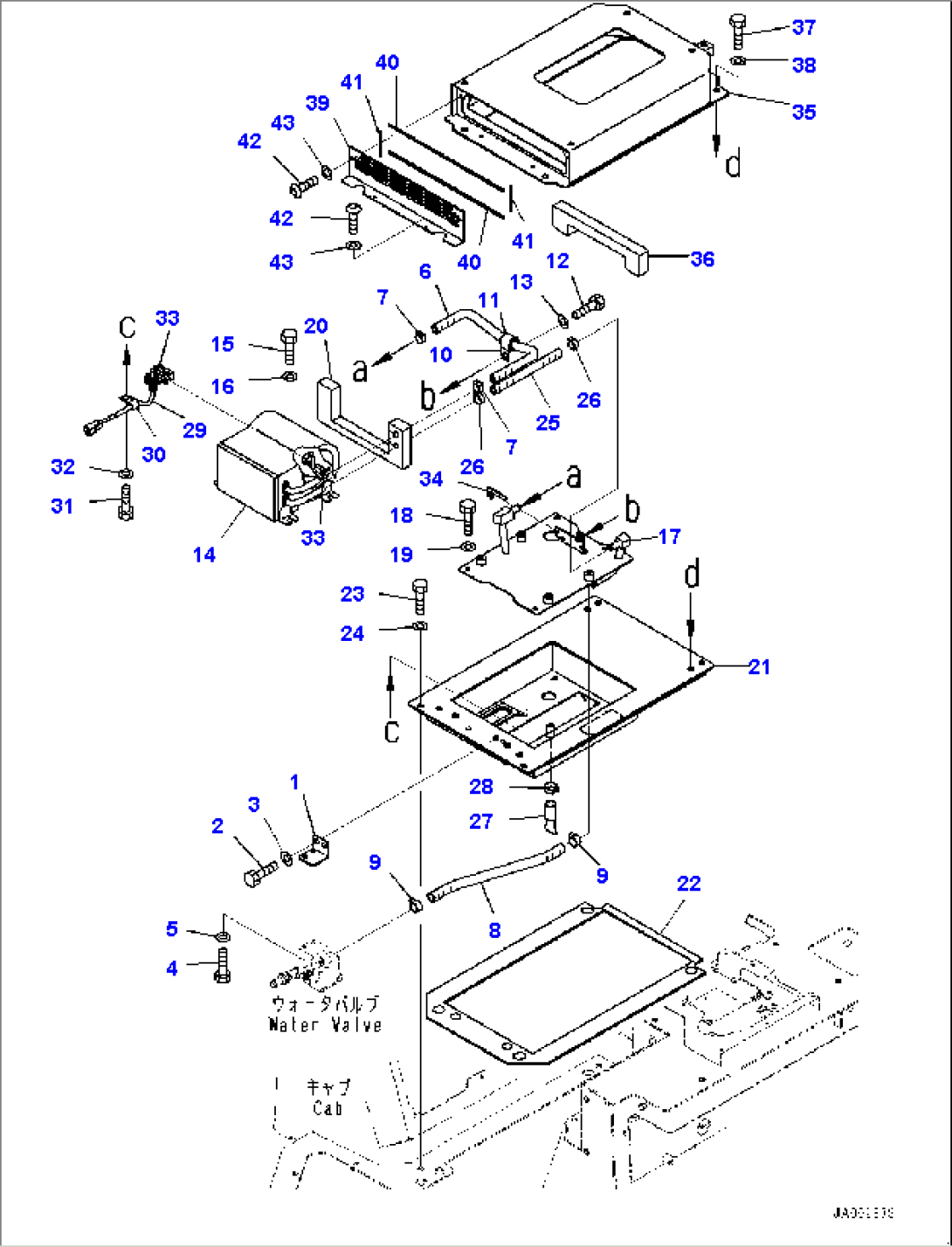

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-979-1350 | Bracket | 90001- | |
| 2 | 01010-81020 | Bolt | 90001- | |
| 3 | 01643-31032 | Washer | 90001- | |
| 4 | 01010-80616 | Bolt | 90001- | |
| 5 | 01643-30623 | Washer | 90001- | |
| 6 | 12Y-979-1361 | Hose | 90001- | |
| 7 | 11Y-09-11160 | Clip | 90001- | |
| 8 | 12Y-979-6350 | Hose | 90001- | |
| 9 | 09479-02400 | Clip | 90001- | |
| 10 | 04434-52711 | Clip | 90001- | |
| 11 | 07095-20420 | Cushion | 90001- | |
| 12 | 01010-81020 | Bolt | 90001- | |
| 13 | 01643-31032 | Washer | 90001- | |
| 14 | 208-987-3680 | Heater Assembly | 90001- | |
| 15 | 01010-81020 | Bolt | 90001- | |
| 16 | 01643-31032 | Washer | 90001- | |
| 17 | 12Y-Z79-3320 | Bracket | 91081- | |
| 17 | 12Y-979-6320 | Bracket | 90001-91080 | |
| 18 | 01010-81020 | Bolt | 90001- | |
| 19 | 01643-31032 | Washer | 90001- | |
| 20 | 12Y-977-1121 | Seal | 90001- | |
| 21 | 12Y-Z79-3311 | Bracket | 91081- | |
| 21 | 12Y-979-6311 | Bracket | 90001-91080 | |
| 22 | 12Y-979-6360 | Seal | 90001- | |
| 23 | 01010-81230 | Bolt | 90001- | |
| 24 | 01643-31232 | Washer | 90001- | |
| 25 | 12Y-979-6340 | Hose | 90001- | |
| 26 | 11Y-09-11160 | Clip | 90001- | |
| 27 | 22B-979-1880 | Connector | 90001- | |
| 28 | 07285-00230 | Clip | 90001- | |
| 29 | 12Y-977-1193 | Wiring Harness | 90001- | |
| 30 | 04434-51410 | Clip | 90001- | |
| 31 | 01010-81020 | Bolt | 90001- | |
| 32 | 01643-31032 | Washer | 90001- | |
| 33 | 08034-20519 | Band | 90001- | |
| 34 | 12Y-06-13380 | Seal | 90001- | |
| 35 | 12Y-57-21231 | Bracket | 90001- | |
| 36 | 12Y-57-11131 | Seal | 90001- | |
| 37 | 01010-81230 | Bolt | 90001- | |
| 38 | 01643-31232 | Washer | 90001- | |
| 39 | 12Y-57-21251 | Cover | 90001- | |
| 40 | 12Y-57-11170 | Seal | 90001- | |
| 41 | 12Y-57-11181 | Seal | 90001- | |
| 42 | 01245-00620 | Screw | 90001- | |
| 43 | 01643-70623 | Washer | 90001- |
