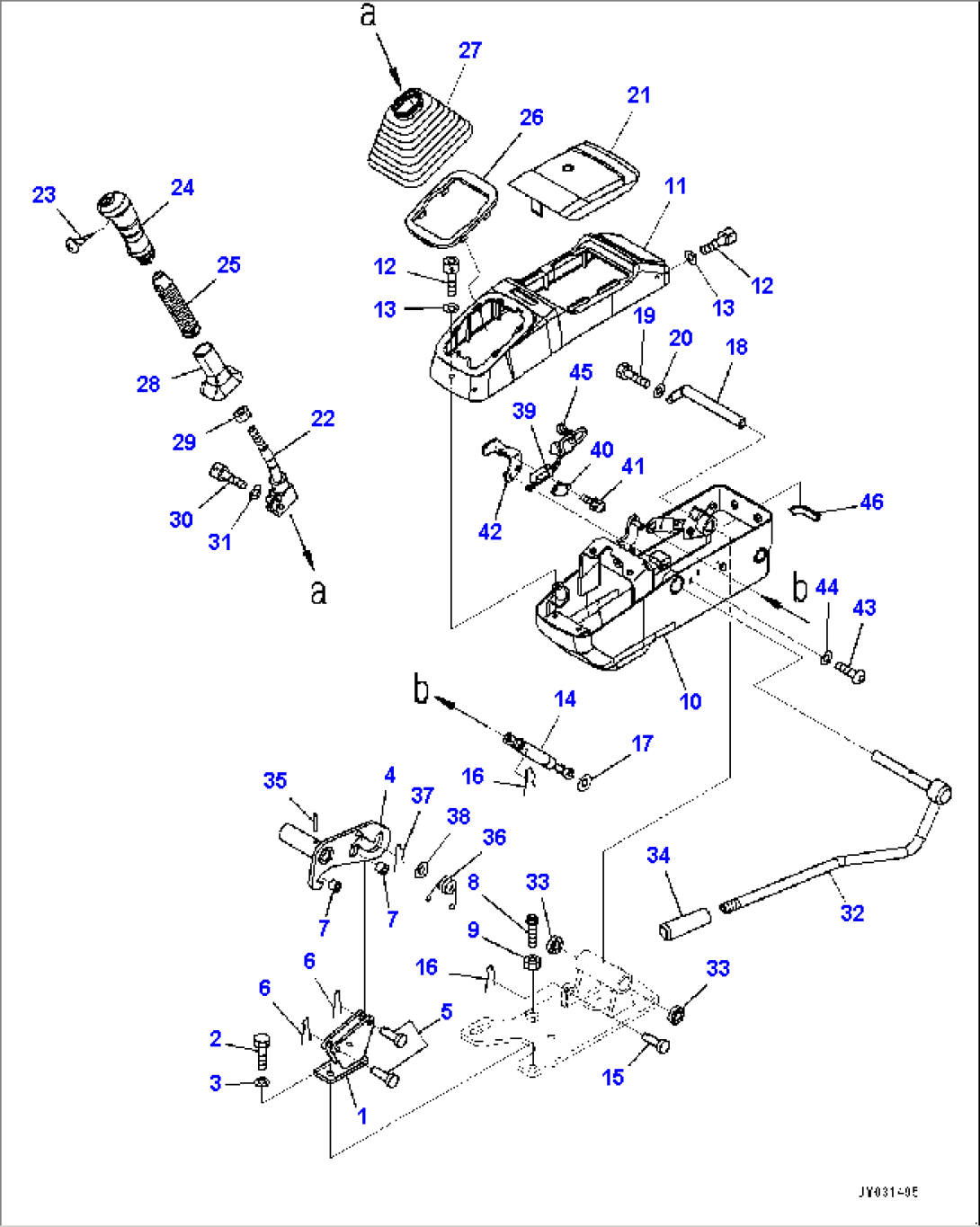

Cab, Floor, Console, L.H. (#30001-)

Item	Part No.	Part Name	Qty	Serial No.
1	22M-43-21291	Stopper		30001-
2	01010-D0825	Bolt		30001-
3	01643-70823	Washer		30001-
4	22N-43-51550	Guide		30001-
5	04205-30832	Pin		30001-
6	04050-12015	Pin, Cotter		30001-
7	21U-43-32430	Collar		30001-
8	22B-54-15560	Stopper		30001-
9	01580-11008	Nut		30001-
10	22N-43-51150	Bracket		30001-
11	22N-54-52170	Cover		30001-
12	01252-B0616	Bolt, Hexagon Socket Head		30001-
13	01643-70623	Washer		30001-
14	22M-43-21660	Spring, Gas		30001-
15	04205-30822	Pin		30001-
16	04052-20833	Pin, Snap		30001-
17	01643-70823	Washer		30001-
18	22M-43-21151	Pin		30001-
19	01010-D0616	Bolt		30001-
20	01643-70623	Washer		30001-
21	22M-54-22131	Cover		30001-
21	22M-43-21630	Lever Assembly		30001-
22	22M-43-21640	Lever		30001-
22	20Y-43-22620	Knob		30001-
23	01370-10308	Screw		30001-
24	20Y-43-22630	Knob		30001-
25	20Y-43-22421	Insert		30001-
26	20Y-43-22250	Plate		30001-
27	20Y-43-22261	Boot		30001-
28	20Y-43-22370	Boot		30001-
29	600-411-1280	Nut		30001-
30	01252-71025	Bolt, Hexagon Socket Head		30001-
31	01643-51032	Washer		30001-
32	22N-43-59210	Lever		30001-
33	06124-01616	Bearing		30001-
34	22M-43-21470	Knob		30001-
35	20T-43-71280	Pin		30001-
36	22M-43-21560	Spring		30001-
37	04052-20833	Pin, Snap		30001-
38	01643-70823	Washer		30001-
39	22N-06-54210	Switch Assembly, PPC Hydraulic Lock		30001-
40	22U-06-22490	Plate		30001-
41	01023-60320	Screw		30001-
42	22N-43-51510	Bracket		30001-
43	01245-00616	Screw		30001-
44	01643-70623	Washer		30001-
45	08034-40521	Band		30001-
46	22N-43-51160	Seal		30001-
