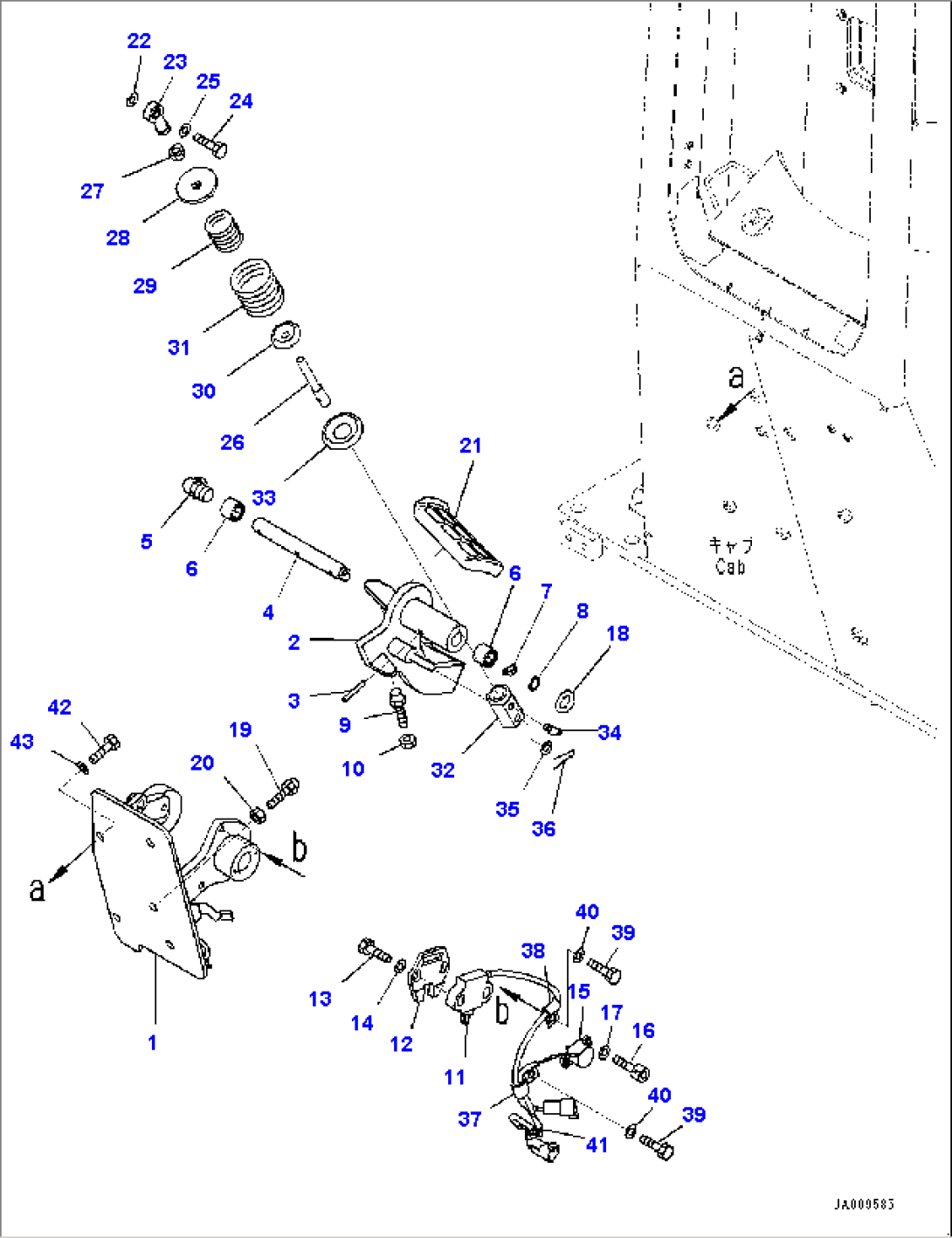

| Item | Part No. | Part Name | Qty | Serial No. |
| 12Y-43-31200 | Pedal Assembly | 91081- | ||
| 12Y-43-21201 | Pedal Assembly | 90001-91080 | ||
| 1 | 12Y-43-21111 | Bracket | 90001- | |
| 2 | 12Y-43-21121 | Pedal | 90001- | |
| 3 | 14X-43-14520 | Pin | 90001- | |
| 4 | 12Y-43-21130 | Shaft | 90001- | |
| 5 | 07020-00900 | Fitting, Grease | 90001- | |
| 6 | 06124-02020 | Bearing | 90001- | |
| 7 | 142-43-13180 | Spring | 90001- | |
| 8 | 04064-01610 | Ring, Snap | 90001- | |
| 9 | 09311-41237 | Bumper, Pedal | 90001- | |
| 10 | 01580-11210 | Nut | 90001- | |
| 11 | 11Y-06-22150 | Switch, Brake Limit | 90001- | |
| 12 | 12Y-43-21141 | Stopper | 90001- | |
| 13 | 01010-81040 | Bolt | 90001- | |
| 14 | 01643-31032 | Washer | 90001- | |
| 15 | 17A-06-41981 | Sensor, Potentiometer | 90001- | |
| 16 | 01252-60416 | Bolt, Hexagon Socket Head | 90001- | |
| 17 | 01640-20408 | Washer | 90001- | |
| 18 | 12Y-43-12160 | Plate | 90001- | |
| 19 | 09311-41237 | Bumper, Pedal | 90001- | |
| 20 | 01580-11210 | Nut | 90001- | |
| 21 | 14X-43-13760 | Cap | 90001- | |
| 22 | 01643-31032 | Washer | 90001- | |
| 23 | 04250-81056 | End | 90001- | |
| 24 | 01010-81040 | Bolt | 90001- | |
| 25 | 01643-31032 | Washer | 90001- | |
| 26 | 12Y-43-21231 | Rod | 90001- | |
| 27 | 01582-11008 | Nut | 90001- | |
| 28 | 12Y-43-21241 | Guide | 90001- | |
| 29 | 12Y-43-31270 | Spring | 91081- | |
| 29 | 12Y-43-21271 | Spring | 90001-91080 | |
| 30 | 12Y-43-21250 | Guide | 90001- | |
| 31 | 12Y-43-21261 | Spring | 90001- | |
| 32 | 12Y-43-21210 | Yoke | 90001- | |
| 33 | 12Y-43-21220 | Guide | 90001- | |
| 34 | 07020-00900 | Fitting, Grease | 90001- | |
| 35 | 01640-21016 | Washer | 90001- | |
| 36 | 04050-13020 | Pin, Cotter | 90001- | |
| 37 | 04435-50810 | Clip | 90001- | |
| 38 | 04434-50810 | Clip | 90001- | |
| 39 | 01010-81020 | Bolt | 90001- | |
| 40 | 01643-31032 | Washer | 90001- | |
| 41 | 08034-40521 | Band | 90001- | |
| 42 | 01010-81030 | Bolt | 90001- | |
| 43 | 01643-31032 | Washer | 90001- |
