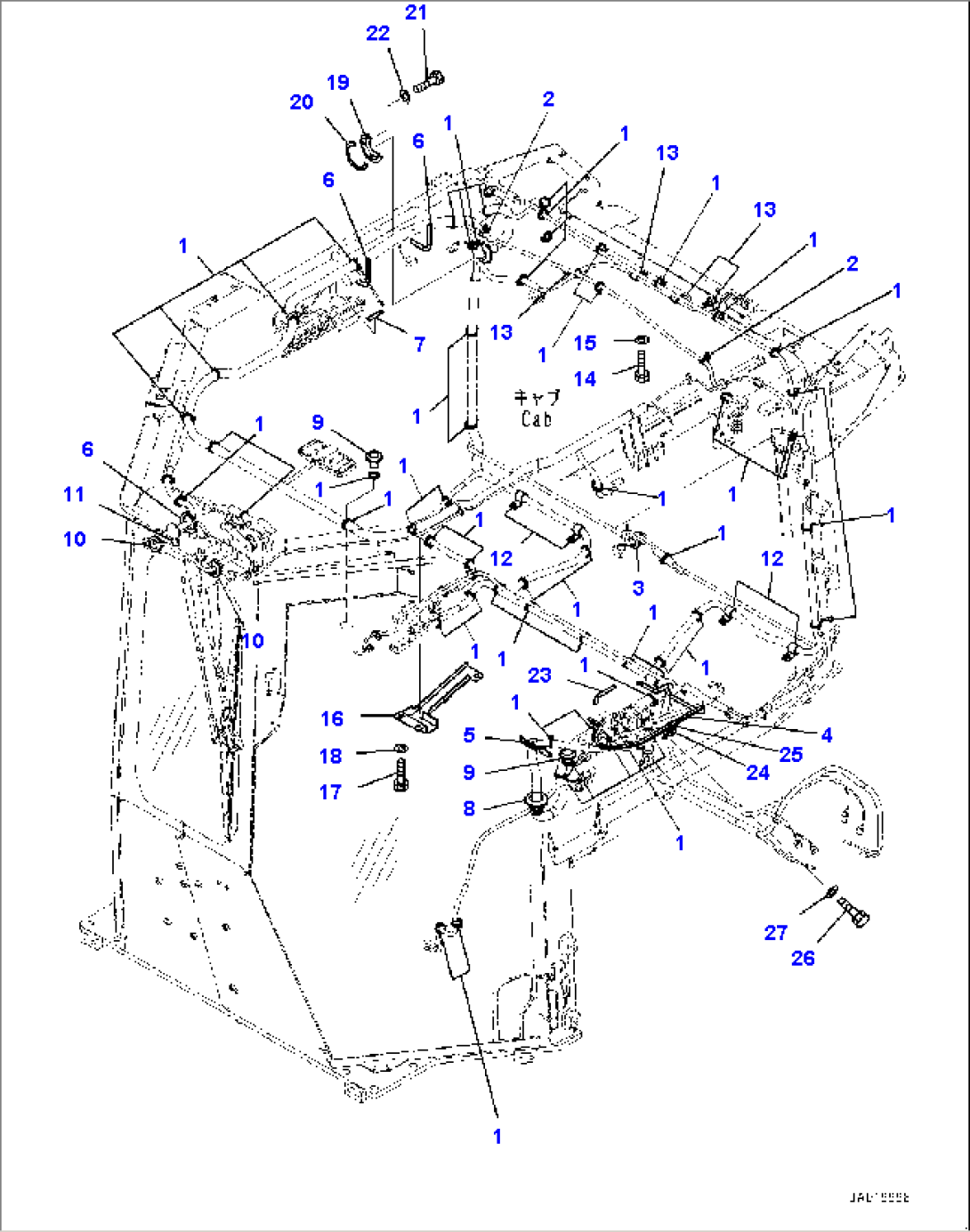

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08034-20536 | Band | 40001- | |
| 2 | 08059-00310 | Clip | 40001- | |
| 3 | 08037-11025 | Grommet | 40001- | |
| 4 | 12Y-978-2184 | Seal | 40001- | |
| 5 | 12Y-978-2192 | Seal | 40001- | |
| 6 | 12Y-06-13151 | Seal | 40001- | |
| 7 | 12Y-978-2160 | Seal | 40001- | |
| 8 | 08037-12536 | Grommet | 40001- | |
| 9 | 08037-11425 | Grommet | 40001- | |
| 10 | 08037-02512 | Grommet | 40001- | |
| 11 | 09415-01008 | Cap | 40001- | |
| 12 | 04434-51710 | Clip | 40001- | |
| 13 | 04434-51008 | Clip | 40001- | |
| 14 | 01010-D0816 | Bolt | 40001- | |
| 15 | 01643-70823 | Washer | 40001- | |
| 16 | 12Y-06-36380 | Cover | 40001- | |
| 17 | 01010-81020 | Bolt | 40001- | |
| 18 | 01643-31032 | Washer | 40001- | |
| 19 | 12Y-06-36360 | Cover | 40001- | |
| 20 | 12Y-06-26170 | Sheet | 40001- | |
| 21 | 01010-80616 | Bolt | 40001- | |
| 22 | 01643-30623 | Washer | 40001- | |
| 23 | 12Y-978-2172 | Seal | 40001- | |
| 24 | 04434-51610 | Clip | 40001- | |
| 25 | 07095-20211 | Cushion | 40001- | |
| 26 | 01010-81020 | Bolt | 40001- | |
| 27 | 01643-31032 | Washer | 40001- |
