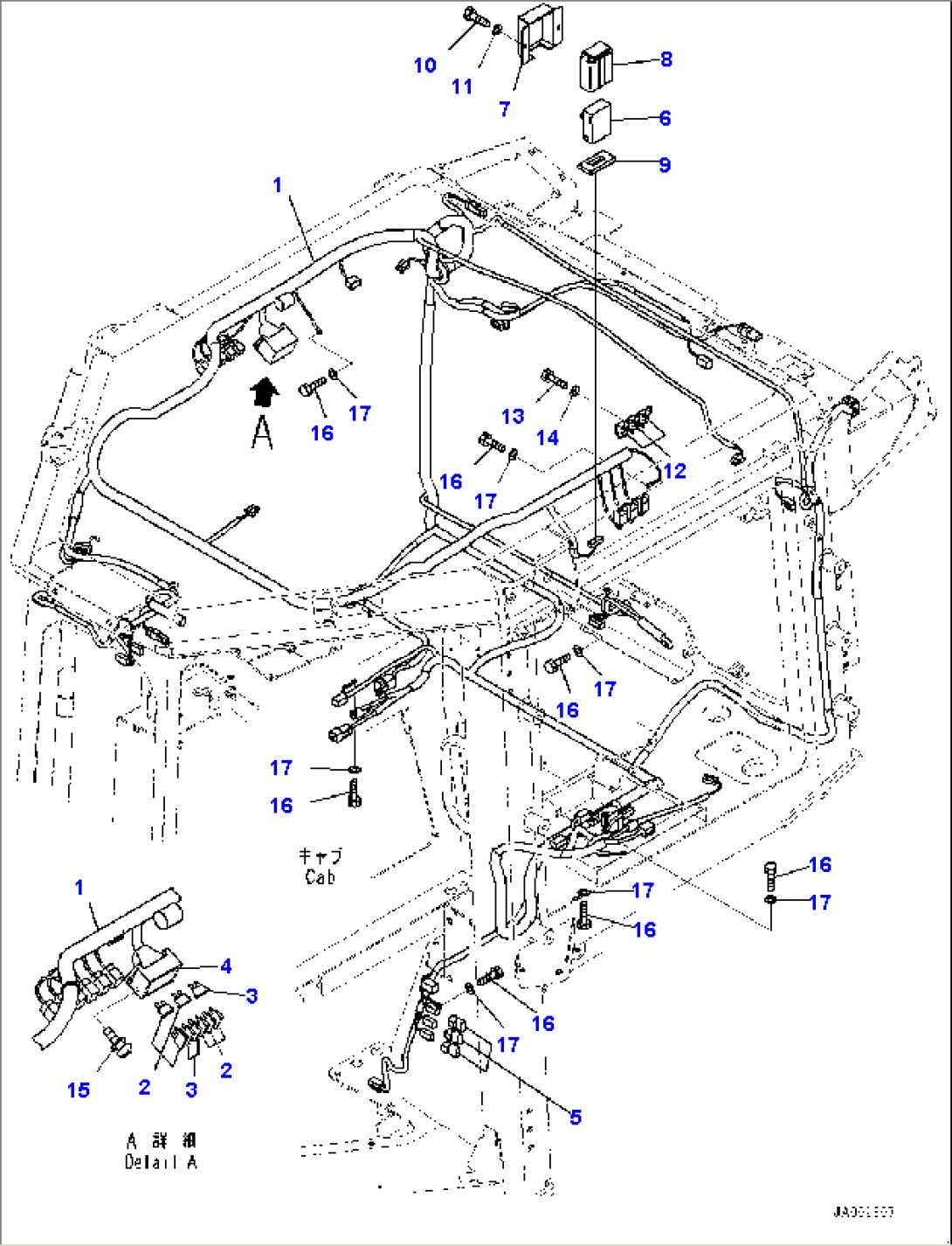

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-06-26122 | Wiring Harness | 30001-31244 | |
| 2 | 08041-01000 | Fuse, 10Amp. | 30001-31244 | |
| 3 | 08041-02000 | Fuse, 20Amp. | 30001-31244 | |
| 4 | 08044-00600 | Box Assembly, Fuse | 30001-31244 | |
| 5 | 21J-06-13661 | Diode | 30001-31244 | |
| 6 | 14X-06-51710 | Relay | 30001-31244 | |
| 7 | 14X-06-52631 | Bracket | 30001-31244 | |
| 8 | 14X-06-52661 | Sheet | 30001-31244 | |
| 9 | 14X-06-52740 | Sheet | 30001-31244 | |
| 10 | 01010-80616 | Bolt | 30001-31244 | |
| 11 | 01643-30623 | Washer | 30001-31244 | |
| 12 | 7861-74-5100 | Relay | 30001-31244 | |
| 13 | 01010-80616 | Bolt | 30001-31244 | |
| 14 | 01643-30623 | Washer | 30001-31244 | |
| 15 | 01023-10520 | Screw | 30001-31244 | |
| 16 | 01010-80616 | Bolt | 30001-31244 | |
| 17 | 01643-30623 | Washer | 30001-31244 |
