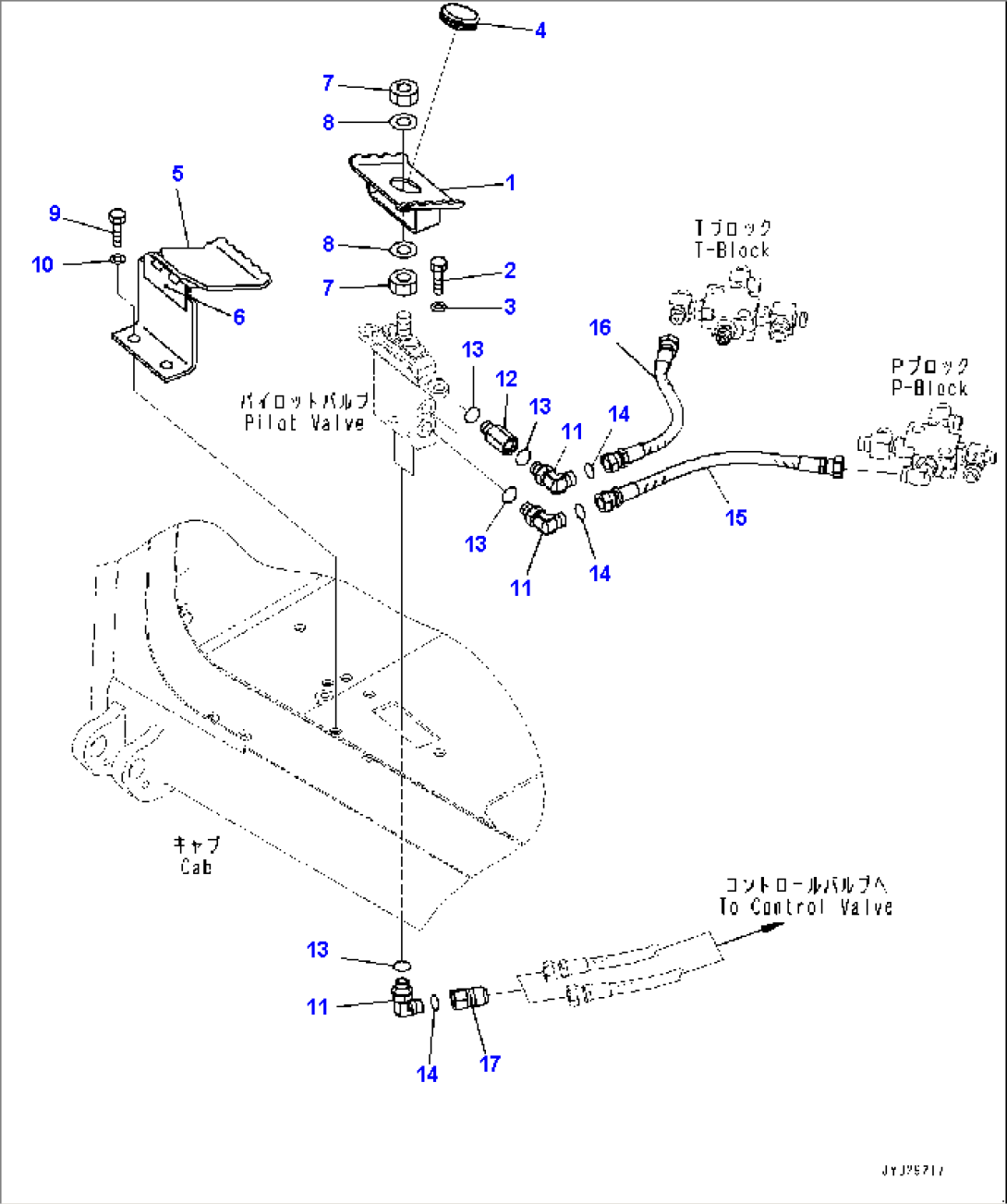

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22M-43-21341 | Pedal | 30001- | |
| 2 | 01010-81025 | Bolt | 30001- | |
| 3 | 01643-31032 | Washer | 30001- | |
| 4 | 09415-02512 | Cap | 30001- | |
| 5 | 22M-43-21351 | Cover | 30001- | |
| 6 | 22M-43-11510 | Hinge, Welded | 30001- | |
| 7 | 01583-11408 | Nut | 30001- | |
| 8 | 01641-21423 | Washer, Flat | 30001- | |
| 9 | 01010-81025 | Bolt | 30001- | |
| 10 | 01643-31032 | Washer | 30001- | |
| 11 | 21K-62-73110 | Elbow | 30001- | |
| 12 | 20T-910-8660 | Nipple | 30001- | |
| 13 | 07000-12011 | O-ring | 30001- | |
| 14 | 02896-11008 | O-ring | 30001- | |
| 15 | 22N-62-53910 | Hose | 30001- | |
| 15 | 21U-62-34760 | Band, Red | 30001- | |
| 15 | 21U-62-34730 | Band, Green | 30001- | |
| 16 | 22N-62-53910 | Hose | 30001- | |
| 16 | 21U-62-34770 | Band, White | 30001- | |
| 16 | 21U-62-34750 | Band, Blue | 30001- | |
| 17 | 22M-62-23330 | Joint | 30001- |
