| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-Z11-0010 | CAB ASS'Y | B40001- | ||

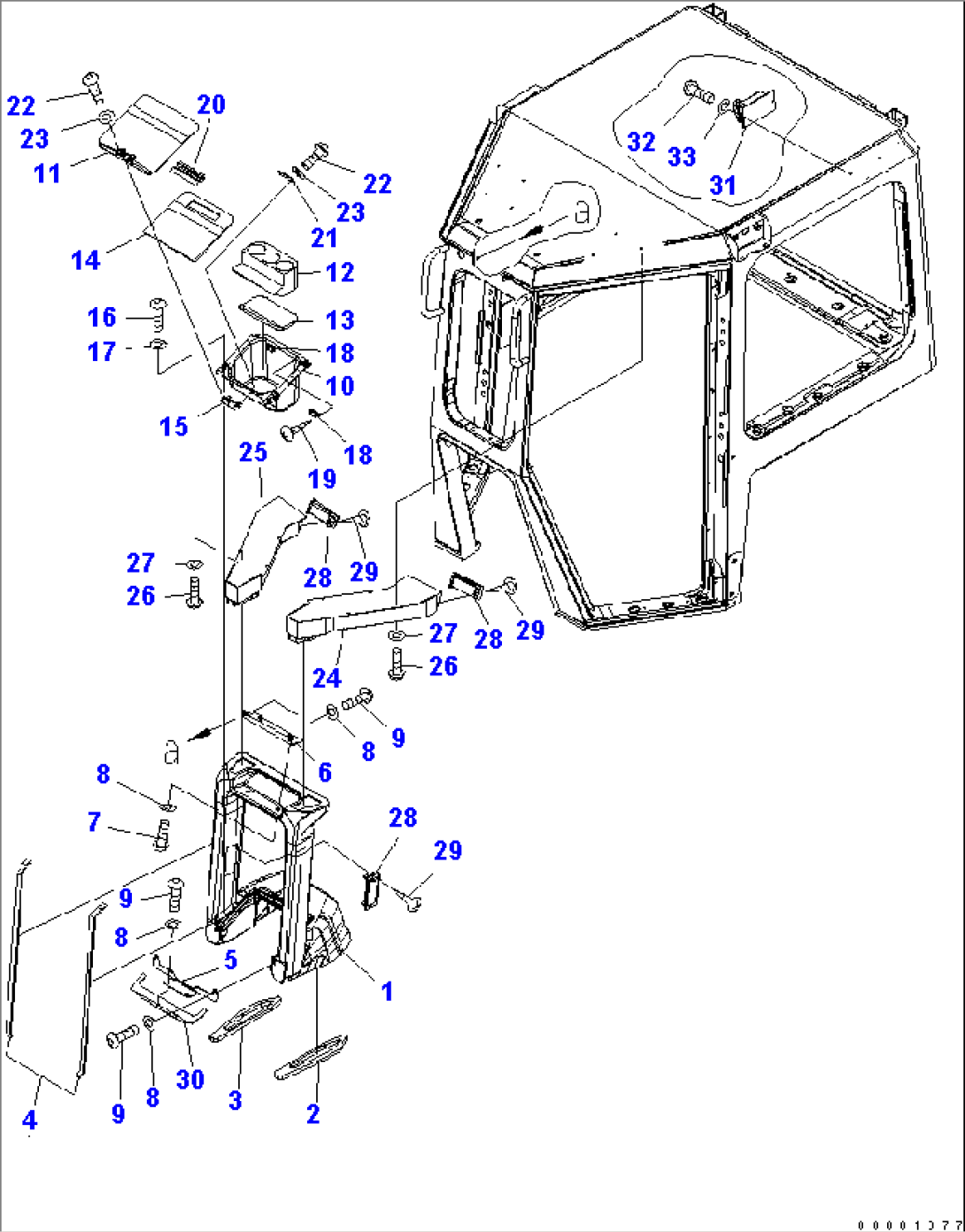

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-14A0. | ||||
| 1 | 17A-Z11-3811 | DUCT | B40001- | |
| 2 | 17A-Z11-3821 | SEAL | B40001- | |
| 3 | 17A-Z11-3831 | SEAL | B40001- | |
| 4 | 17A-Z11-3780 | SHEET | B40001- | |
| 5 | 17A-Z11-3841 | PLATE | B40001- | |
| 6 | 17A-Z11-3890 | BRACKET | B40001- | |
| 7 | 01245-00840 | SCREW | B40001- | |
| 8 | 01643-70823 | WASHER | B40001- | |
| 9 | 01245-00816 | SCREW | B40001- | |
| 10 | 17A-Z11-3931 | BOX | B40001- | |
| 11 | 17A-Z11-3941 | PLATE | B40001- | |
| 12 | 17A-Z11-2960 | CUSHION | B40001- | |
| 13 | 17A-Z11-2970 | CUSHION | B40001- | |
| 14 | 17A-Z11-2991 | SHEET | B40001- | |
| 15 | 17A-Z11-3981 | HINGE | B40001- | |
| 16 | 01245-00616 | SCREW | B40001- | |
| 17 | 01643-70623 | WASHER | B40001- | |
| 18 | 17A-Z11-3970 | LOCK ASS'Y | B40001- | |
| 19 | 01370-10308 | SCREW | B40001- | |
| 20 | 17A-Z11-2590 | PLATE | B40001- | |
| 21 | 17A-Z11-2890 | PLATE | B40001- | |
| 22 | 01245-00616 | SCREW | B40001- | |
| 23 | 01643-70623 | WASHER | B40001- | |
| 24 | 17A-Z11-3871 | DUCT | B40001- | |
| 25 | 17A-Z11-3881 | DUCT | B40001- | |
| 26 | 01245-00616 | SCREW | B40001- | |
| 27 | 01643-70623 | WASHER | B40001- | |
| 28 | 17A-Z11-7161 | LOUVER | B40001- | |
| 29 | 01370-40308 | SCREW | B40001- | |
| 30 | 17A-Z11-3961 | PLATE | B40001- | |
| 31 | 22U-06-22250 | CONVERTER | B40001- | |
| 32 | 01245-00620 | SCREW | B40001- | |
| 33 | 01643-70623 | WASHER | B40001- |
