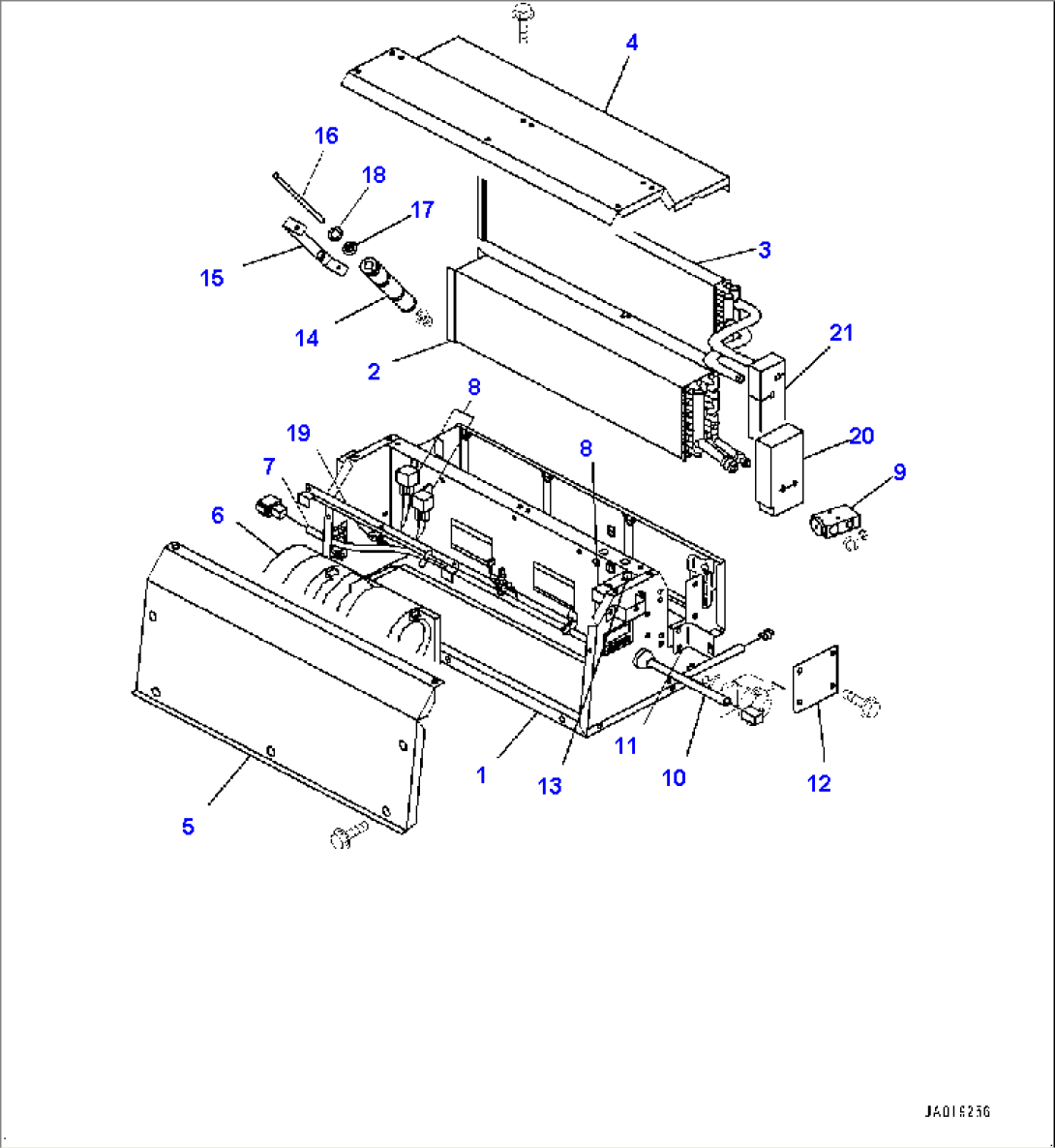

| Item | Part No. | Part Name | Qty | Serial No. |
| 12Y-979-6190 | Air Conditioner Assembly | 40001- | ||
| 1 | RD-3-16677-0 | Housing Assembly | 40001- | |
| 2 | RD-2-4087-0 | Evaporator Assembly | 40001- | |
| 3 | RD-1-2567-0 | Heater Core Assembly | 40001- | |
| 4 | RD-3-11518-0 | Cover | 40001- | |
| 5 | RD-3-11519-0 | Cover | 40001- | |
| 6 | RD-5-9204-3 | Motor Assembly | 40001- | |
| 7 | RD-3-14894-0 | Wiring Harness | 40001- | |
| 8 | RD-5-4417-0 | Relay | 40001- | |
| 9 | RD-5-9513-0 | Valve, Expansion | 40001- | |
| 10 | RD-3-11536-0 | Bracket Assembly | 40001- | |
| 11 | RD-3-11753-0 | Seal | 40001- | |
| 12 | RD-3-11485-0 | Seal | 40001- | |
| 13 | RD-5-4531-24 | Thermostat | 40001- | |
| 14 | RD-5-9062-0 | Resistor | 40001- | |
| 15 | RD-3-12262-0 | Bracket Assembly | 40001- | |
| 16 | RD-5-4601-0-7.500 | Screw | 40001- | |
| 17 | RD-5-8666-00 | Washer | 40001- | |
| 18 | RD-5-8351-0 | Washer | 40001- | |
| 19 | RD-3-11762-0 | Support | 40001- | |
| 20 | RD-3-11763-0 | Gasket | 40001- | |
| 21 | RD-3-11764-0 | Gasket | 40001- | |
| 21 | RD-5-11988-64.40 | Tube | 40001- | |
| 21 | RD-5-7710-0 | Grommet | 40001- | |
| 21 | RD-5-8222-1-22 | Screw | 40001- | |
| 21 | RD-5-4017-013 | O-ring | 40001- | |
| 21 | RD-5-4017-015 | O-ring | 40001- |
