| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-D0816 | Bolt | 20509-21000 | |
| 2 | 01643-70823 | Washer | 20509-21000 | |
| 3 | 01010-D1025 | Bolt | 20509-21000 | |
| 4 | 01643-71032 | Washer | 20509-21000 | |
| 5 | 22M-979-2290 | Connector | 20509-21000 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc27mr 3 s/n 20509 up (for north america)
- Operator's compartment and control system
- Cab, air conditioner unit (2/3) (#20509 21000)
Поиск по каталогу

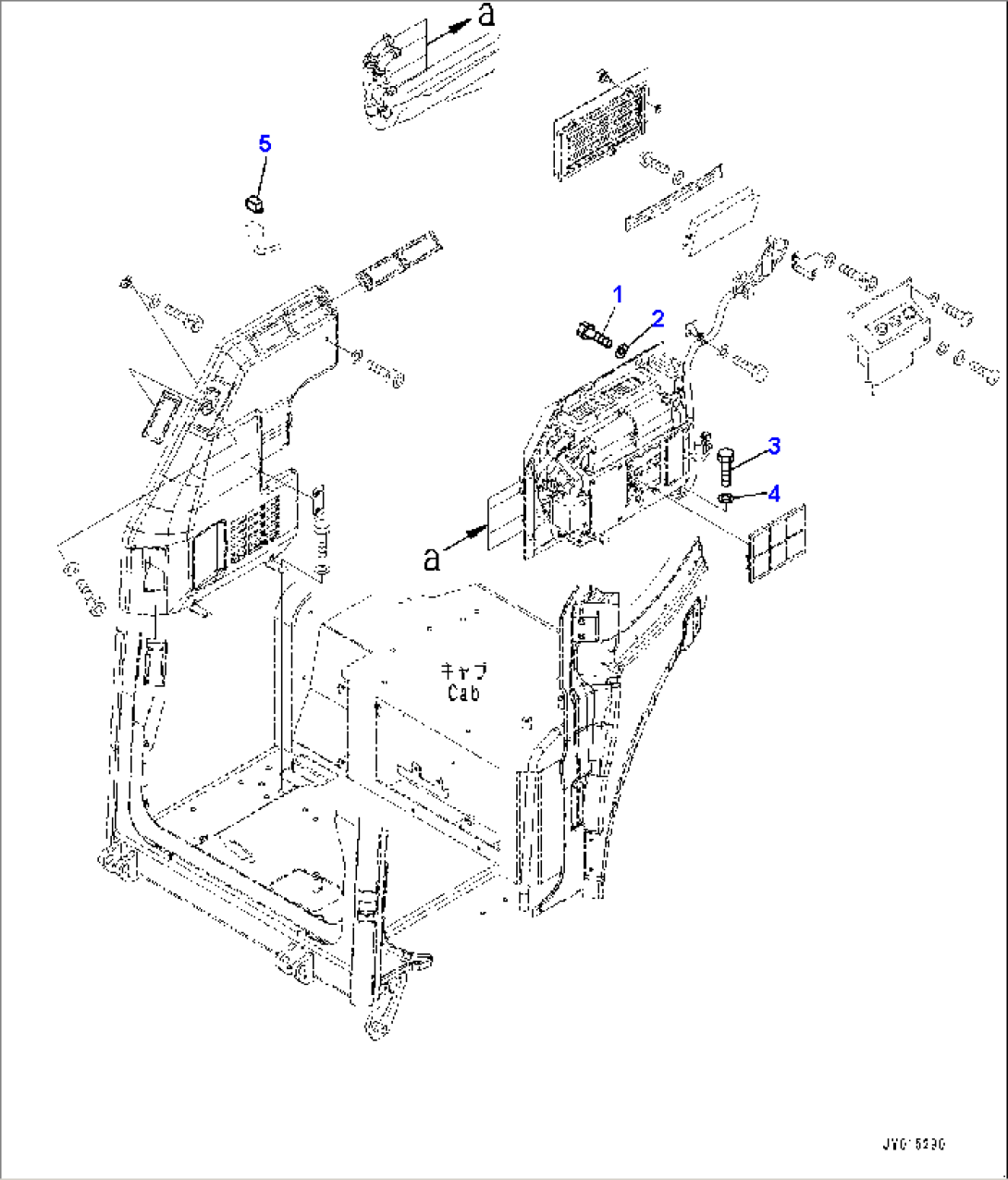

Cab, Air Conditioner Unit (2/3) (#20509-21000)
