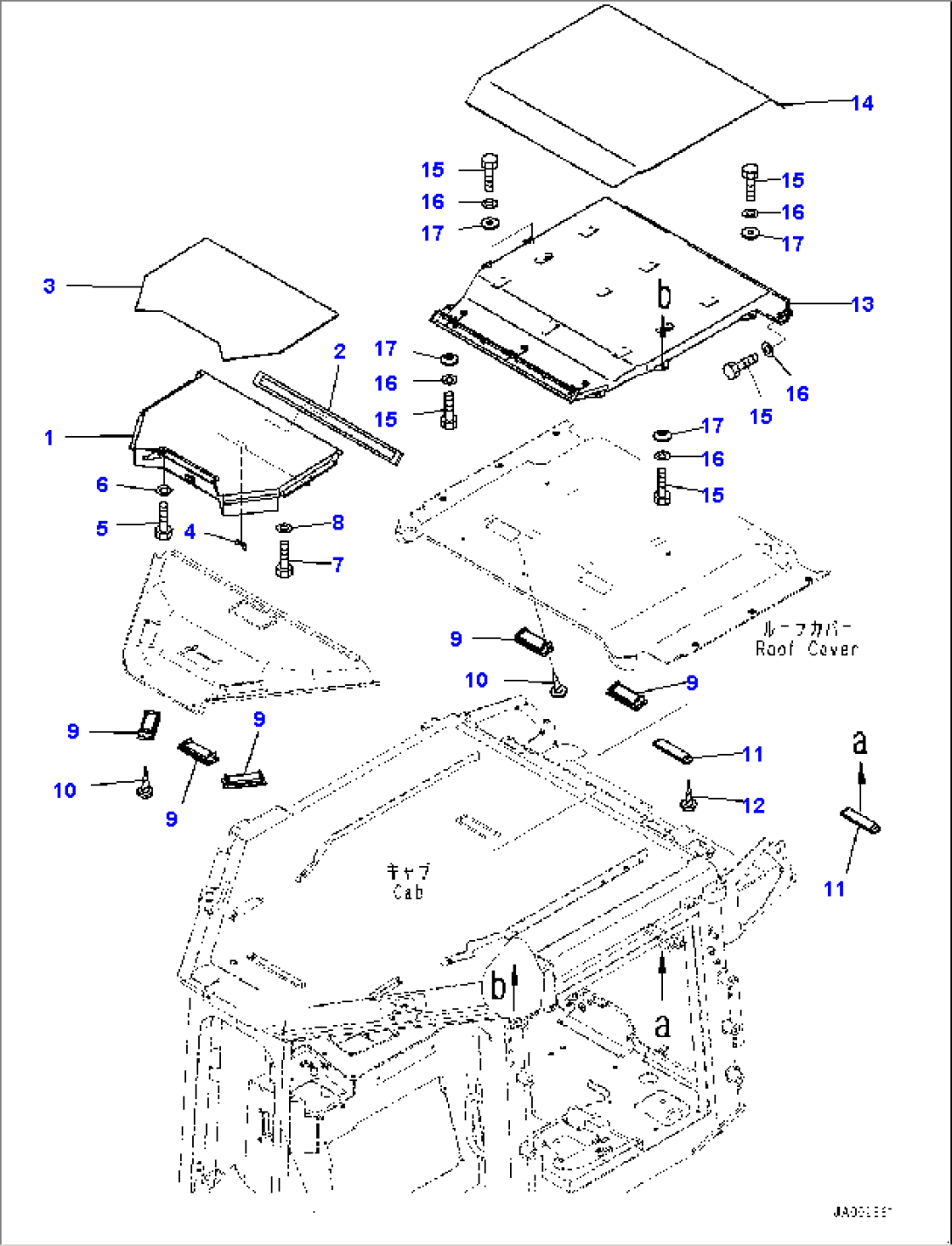

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-54-47710 | Duct | 90001- | |
| 2 | 12Y-978-1751 | Seal | 90001- | |
| 3 | 12Y-978-1810 | Sheet | 90001- | |
| 4 | 12Y-978-2160 | Seal | 90001- | |
| 5 | 01010-80612 | Bolt | 90001- | |
| 6 | 01643-30623 | Washer | 90001- | |
| 7 | 01010-80620 | Bolt | 90001- | |
| 8 | 01643-30623 | Washer | 90001- | |
| 9 | 17A-Z11-7161 | Louver | 90001- | |
| 10 | 01370-40412 | Screw | 90001- | |
| 11 | 12Y-978-2320 | Louver | 90001- | |
| 12 | 01370-40412 | Screw | 90001- | |
| 13 | 12Y-54-27712 | Duct | 90001- | |
| 14 | 12Y-54-27780 | Sheet | 90001- | |
| 15 | 01010-80620 | Bolt | 90001- | |
| 16 | 01643-30623 | Washer | 90001- | |
| 17 | 20Y-53-12310 | Collar | 90001- |
