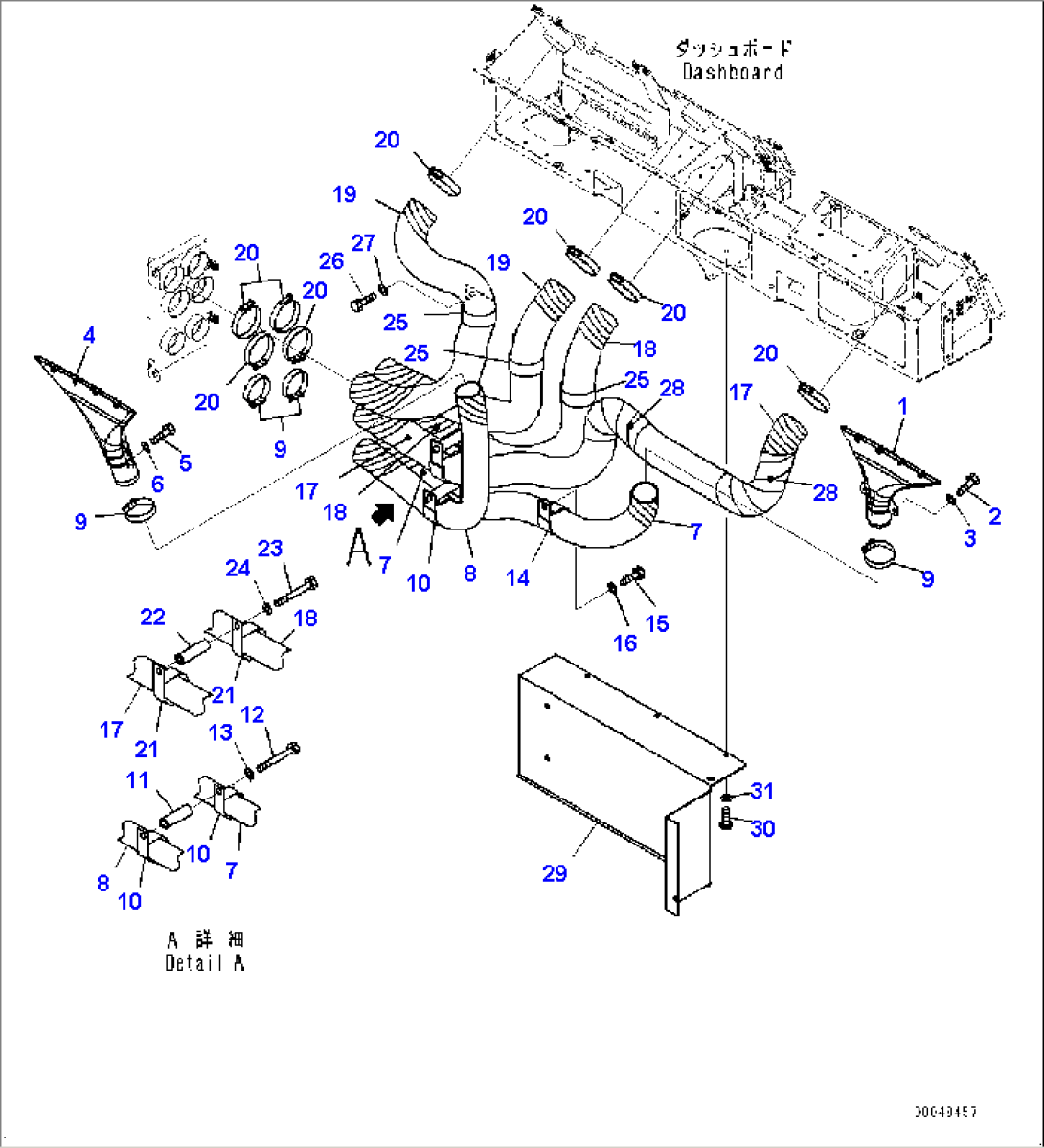

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56E-07-22210 | Nozzle | 2848- | |
| 2 | 01010-80612 | Bolt | 2848- | |
| 3 | 01643-30623 | Washer | 2848- | |
| 4 | 56E-07-22220 | Nozzle | 2848- | |
| 5 | 01010-80612 | Bolt | 2848- | |
| 6 | 01643-30623 | Washer | 2848- | |
| 7 | 56E-07-22310 | Hose | 2848- | |
| 8 | 56E-07-22320 | Hose | 2848- | |
| 9 | 07281-00489 | Clamp, Hose | 2848- | |
| 10 | 234-885-3660 | Clip | 2848- | |
| 11 | 424-Z84-2720 | Spacer | 2848- | |
| 12 | 01010-81095 | Bolt | 2848- | |
| 13 | 01643-31032 | Washer | 2848- | |
| 14 | 234-885-3660 | Clip | 2848- | |
| 15 | 01010-81020 | Bolt | 2848- | |
| 16 | 01643-31032 | Washer | 2848- | |
| 17 | 56E-07-22331 | Hose | 2848- | |
| 18 | 56E-07-22341 | Hose | 2848- | |
| 19 | 56E-07-22351 | Hose | 2848- | |
| 20 | 07281-00709 | Clamp | 2848- | |
| 21 | 23S-61-12230 | Clip | 2848- | |
| 22 | 415-S62-2380 | Collar | 2848- | |
| 23 | 01010-81095 | Bolt | 2848- | |
| 24 | 01643-31032 | Washer | 2848- | |
| 25 | 23S-61-12230 | Clip | 2848- | |
| 26 | 01010-81020 | Bolt | 2848- | |
| 27 | 01643-31032 | Washer | 2848- | |
| 28 | 08210-02901 | Spiral Tube | 2848- | |
| 29 | 56E-07-22413 | Cover | 2848- | |
| 30 | 01245-00616 | Screw | 2848- | |
| 31 | 01643-70623 | Washer | 2848- |
