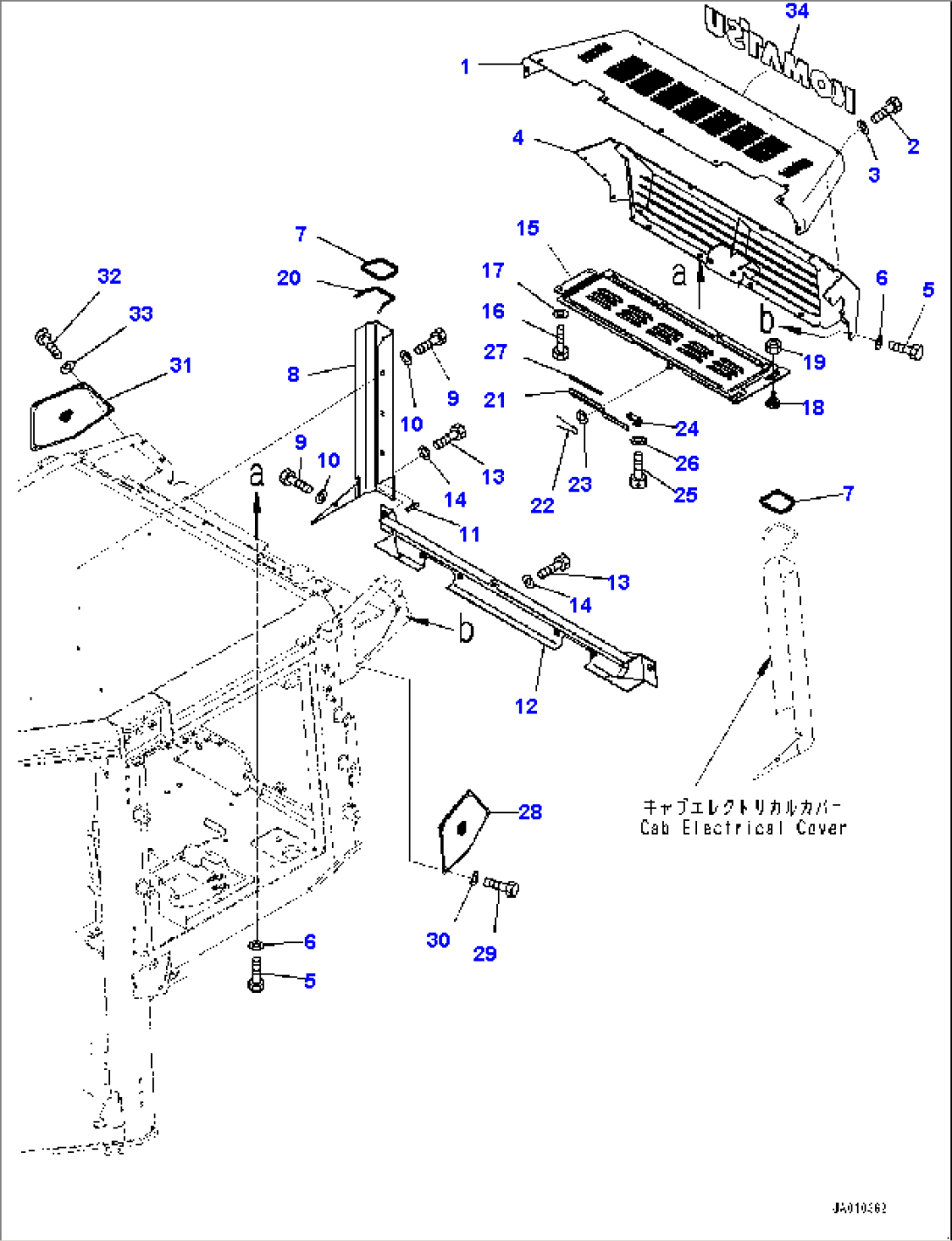

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-979-6610 | Cover | 80001- | |
| 2 | 01010-D0820 | Bolt | 80001- | |
| 3 | 01643-70823 | Washer | 80001- | |
| 4 | 12Y-979-6621 | Cover | 80001- | |
| 5 | 01010-D0820 | Bolt | 80001- | |
| 6 | 01643-70823 | Washer | 80001- | |
| 7 | 12Y-979-1690 | Trim | 80001- | |
| 8 | 12Y-979-1652 | Cover | 80001- | |
| 9 | 01010-D0820 | Bolt | 80001- | |
| 10 | 01643-70823 | Washer | 80001- | |
| 11 | 12Y-979-1860 | Seal | 80001- | |
| 12 | 11Y-Z79-3611 | Cover | 80001- | |
| 13 | 01010-D0820 | Bolt | 80001- | |
| 14 | 01643-70823 | Washer | 80001- | |
| 15 | 12Y-979-6660 | Cover | 80001- | |
| 16 | 01010-D0830 | Bolt | 80001- | |
| 17 | 01643-70823 | Washer | 80001- | |
| 18 | 12Y-979-1782 | Knob | 80001- | |
| 19 | 01598-00809 | Nut | 80001- | |
| 20 | 12Y-978-3492 | Trim | 80001- | |
| 21 | 12Y-979-6711 | Plate | 80001- | |
| 22 | 04050-11612 | Pin, Cotter | 80001- | |
| 23 | 01643-30623 | Washer | 80001- | |
| 24 | 12Y-979-1751 | Plate | 80001- | |
| 25 | 01252-80514 | Bolt | 80001- | |
| 26 | 01641-50508 | Washer | 80001- | |
| 27 | 12Y-06-13380 | Seal | 80001- | |
| 28 | 12Y-979-6630 | Cover | 80001- | |
| 29 | 01010-D0820 | Bolt | 80001- | |
| 30 | 01643-70823 | Washer | 80001- | |
| 31 | 12Y-979-6640 | Cover | 80001- | |
| 32 | 01010-D0820 | Bolt | 80001- | |
| 33 | 01643-70823 | Washer | 80001- | |
| 34 | 09690-F0710 | Plate, Komatsu Logo | 80001- |
