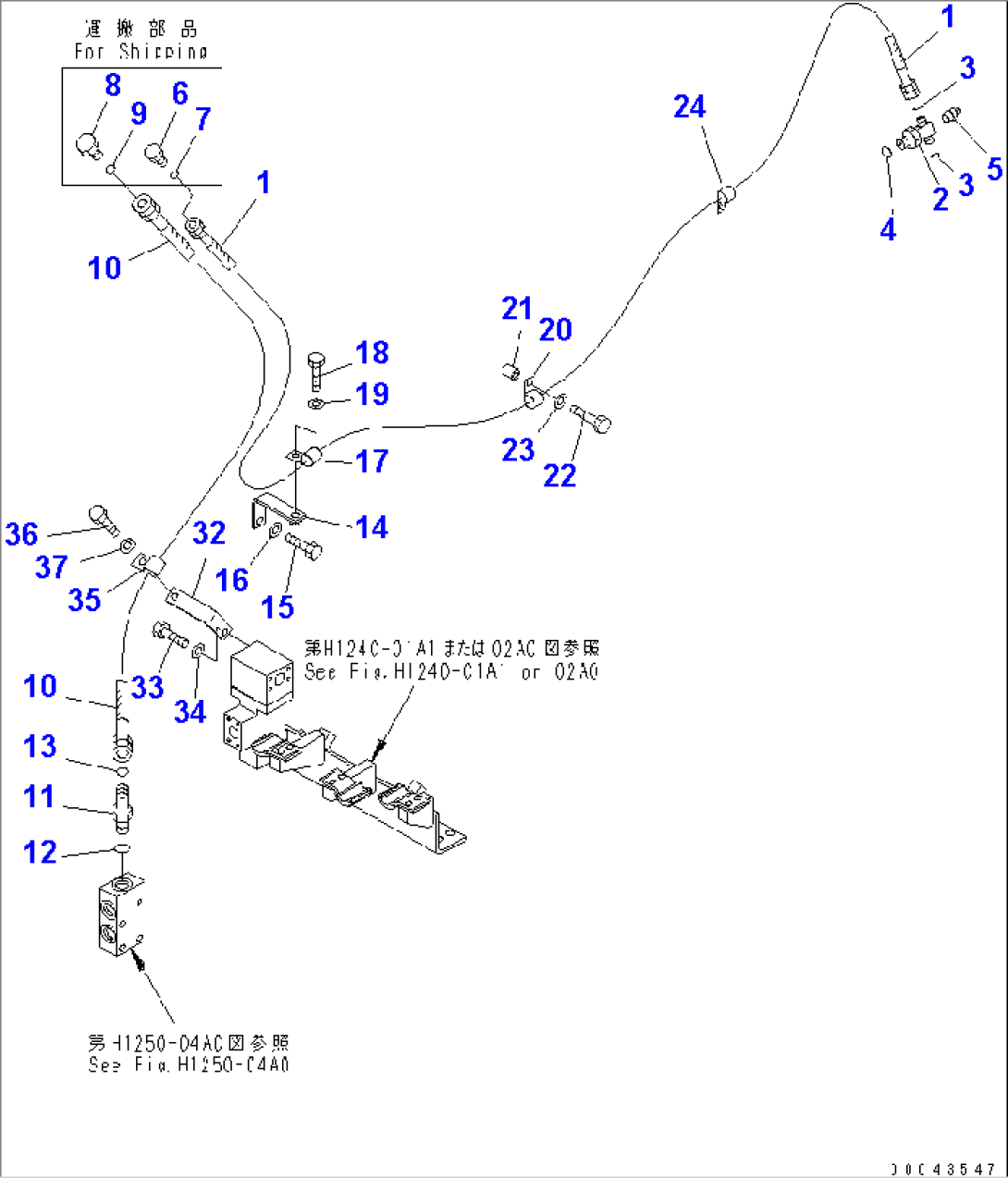

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02762-00328 | HOSE | K50001- | |
| 2 | 21M-62-14890 | TEE | K50001- | |
| 3 | 02896-11009 | O-RING | K50001- | |
| 4 | 07002-12034 | O-RING | K50001- | |
| 5 | 07042-30108 | PLUG | K50001- | |
| 6 | 07376-70315 | PLUG | K50001- | |
| 7 | 02896-11009 | O-RING | K50001- | |
| 8 | 07376-70628 | PLUG | K50001- | |
| 9 | 02896-11018 | O-RING | K50001- | |
| 10 | 02762-00615 | HOSE | K50001- | |
| 11 | 02782-10628 | ELBOW | K50001- | |
| 12 | 07002-12434 | O-RING | K50001- | |
| 13 | 02896-11018 | O-RING | K50001- | |
| 14 | 21M-62-18180 | BRACKET | K50001- | |
| 15 | 01010-81235 | BOLT | K50001- | |
| 16 | 01643-31232 | WASHER | K50001- | |
| 17 | 04434-51912 | CLIP | K50001- | |
| 18 | 01010-81230 | BOLT | K50001- | |
| 19 | 01643-31232 | WASHER | K50001- | |
| 20 | 04434-51912 | CLIP | K50001- | |
| 21 | 120-54-42430 | SPACER | K50001- | |
| 22 | 01010-81255 | BOLT | K50001- | |
| 23 | 01643-31232 | WASHER | K50001- | |
| 24 | 04434-51912 | CLIP | K50001- | |
| 32 | 21M-62-18180 | BRACKET | K50001- | |
| 33 | 01010-81225 | BOLT | K50001- | |
| 34 | 01643-31232 | WASHER | K50001- | |
| 35 | 04434-53212 | CLIP | K50001- | |
| 36 | 01010-81230 | BOLT | K50001- | |
| 37 | 01643-31232 | WASHER | K50001- |
