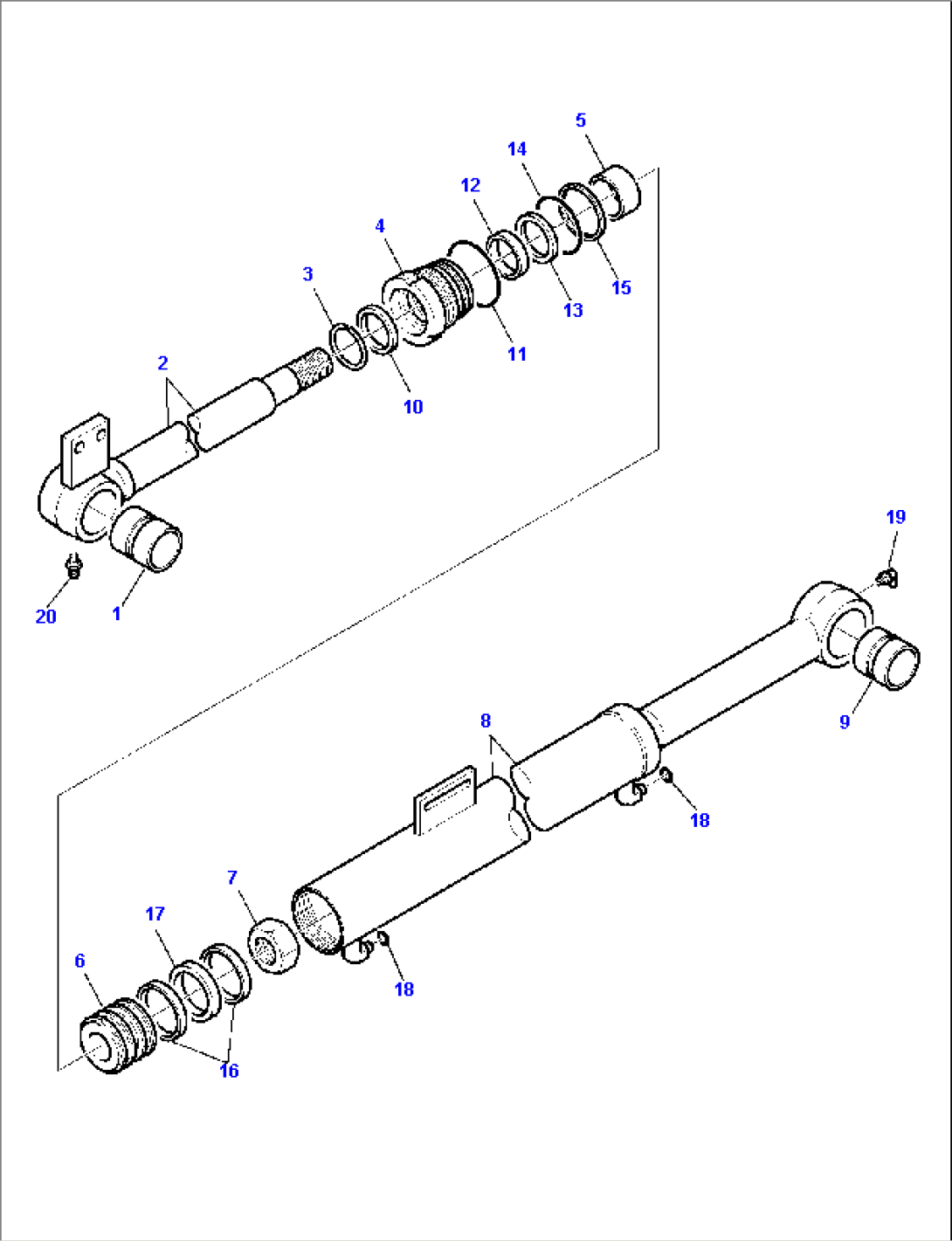

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | 707-00-0Y930 | CYLINDER, ASSY. | F10003- | |
| 1 | 707-76-45550 | BUSHING | F10003- | |
| 2 | 721-58-45610 | PISTON ROD | F10003- | |
| 3 | 07179-12057 | RING, WEAR | F10003- | |
| 4 | 707-29-70641 | CYLINDER HEAD | F10003- | |
| 5 | 707-52-90210 | BUSHING | F10003- | |
| 6 | 707-36-70620 | PISTON | F10003- | |
| 7 | 707-67-33010 | NUT | F10003- | |
| 8 | 707-11-70A30 | CYLINDER | F10003- | |
| 9 | 07144-10505 | BUSHING | F10003- | |
| \9 | 707-99-15730 | KIT, GASKET | F10003- | |
| 10 | 112-63-15370 | SEAL | F10003- | |
| 11 | 07000-12070 | O-RING | F10003- | |
| 12 | 707-51-45030 | GASKET | F10003- | |
| 13 | 707-51-45640 | GASKET | F10003- | |
| 14 | 07000-12065 | O-RING | F10003- | |
| 15 | 07146-02066 | RING, WEAR | F10003- | |
| 16 | 07158-00710 | PACKING ROD | F10003- | |
| 17 | 707-44-70110 | GASKET | F10003- | |
| 18 | 02896-11012 | O-RING | F10003- | |
| 19 | 21D-09-89300 | FITTING, GREASE | F10003- | |
| 20 | 21D-09-89140 | GREASE NIPPLE | F10003- |
