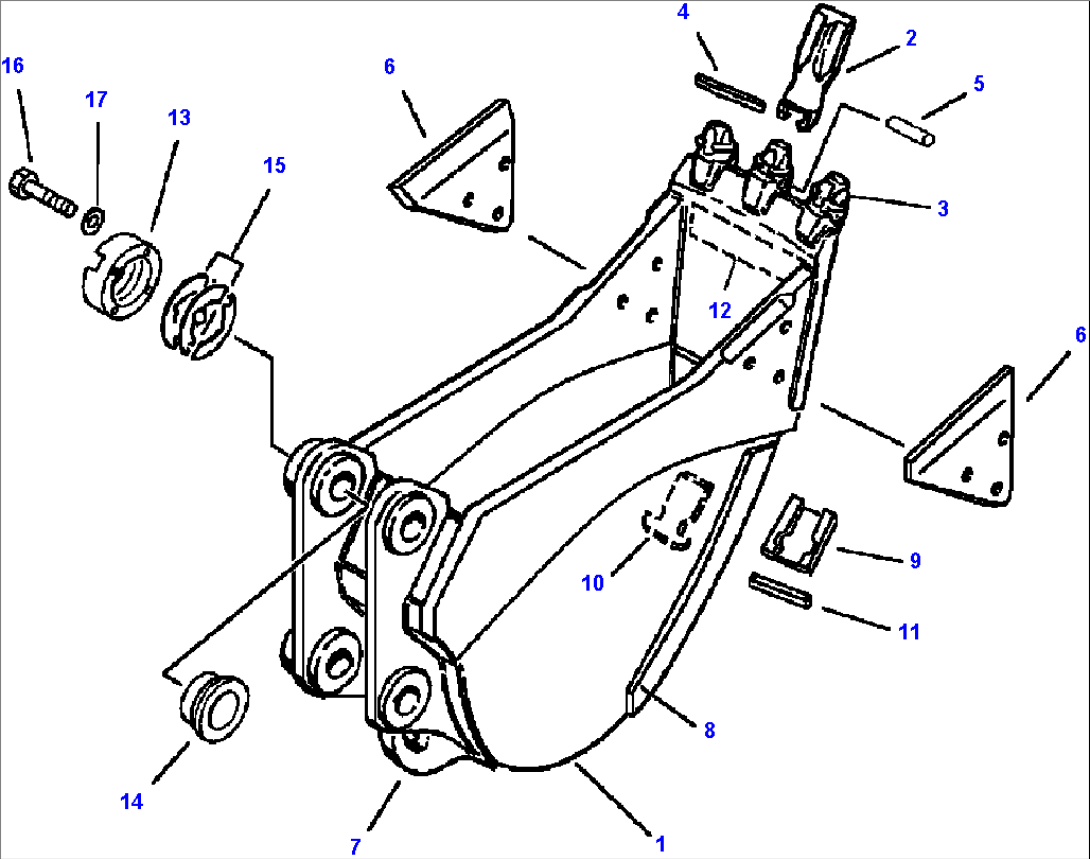

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-70-AX310 | BUCKET, ESCO - HDCL - 1.00 CU. YD | ||
| 2 | 208-913-A210 | TOOTH (47SYL) | ||
| 3 | 207-913-A350 | ADAPTER, TOOTH (47V) | ||
| 4 | 208-913-A230 | PIN (47V) | ||
| 5 | 208-913-A240 | PLUG (47V) | ||
| 6 | 20Y-913-A110 | CUTTERS, SIDE | ||
| 20Y-913-A140 | BOLT | |||
| 7 | LIFTING EYE, BUCKET (SEE PG 07-098) | |||
| 8 | 206-913-A390 | KIT, SIDE WEAR | ||
| 9 | 20Y-913-A120 | RUNNER KWIK LOK WEAR PROTECTOR | ||
| 10 | 20Y-913-A160 | BASE KWIK LOK WEAR PROTECTOR | ||
| 11 | 20Y-913-A170 | BLOCK, KWIK LOK WEAR PROTECTOR STOP | ||
| 12 | (NSS) | BAR, KWIK LOK WEAR PROTECTOR | ||
| DEVICE, ADJUSTABLE (OPTION) | ||||
| 13 | 207-70-34240 | COVER | ||
| 14 | 207-70-34230 | BUSHING | ||
| 15 | 207-70-00060 | SHIM ASSEMBLY | ||
| 207-70-34250 | SHIM - 0.039 IN. (1.0 MM) | |||
| 207-70-34260 | SHIM - 0.020 IN. (0.5 MM) | |||
| 16 | 01010-82065 | BOLT | ||
| 17 | 01643-32060 | WASHER |
