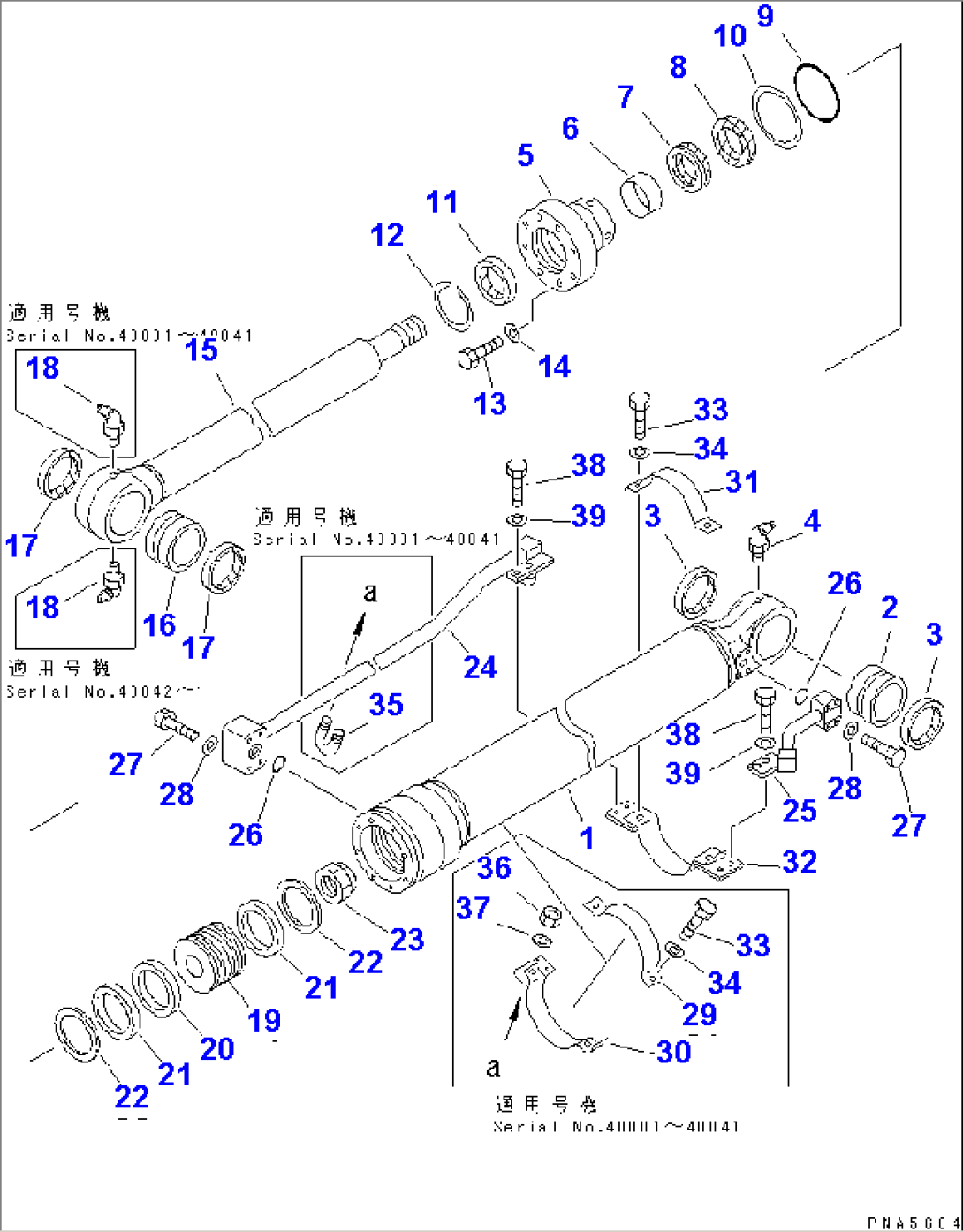

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\202-63-X2332) | CYLINDER GROUP | 40624-44999 | |
| (\8\202-63-X2331) | CYLINDER GROUP | 40001-40623 | ||
| ==================== | ||||
| 202-63-02332 | CYLINDER ASS'Y,BUCKET | 40624-44999 | ||
| \0\202-63-02331 | CYLINDER ASS'Y,BUCKET | 40001-40623 | ||
| 1 | 202-63-74542 | CYLINDER,BUCKET | 40624-44999 | |
| \0\202-63-74541 | CYLINDER,BUCKET | 40001-40623 | ||
| 2 | 707-76-65210 | BUSHING | 40001-44999 | |
| 3 | 07145-00065 | SEAL,DUST (KIT) | 40001-@ | |
| 4 | 07020-00675 | FITTING,GREASE | 40001-@ | |
| 5 | 707-27-90620 | HEAD,CYLINDER | 40001-44999 | |
| 6 | 707-52-90350 | BUSHING | 40001-44999 | |
| 7 | 707-51-60030 | PACKING,ROD (KIT) | 40001-@ | |
| 8 | 707-51-60630 | RING,BUFFER (KIT) | 40001-@ | |
| 9 | 07000-15085 | O-RING (KIT) | 40001-44999 | |
| 10 | 707-35-90960 | RING,BACK-UP (KIT) | 40001-44999 | |
| 11 | 141-63-93270 | SEAL,DUST (KIT) | 40001-@ | |
| 12 | 07179-12074 | RING,SNAP | 40001-@ | |
| 13 | 01010-81465 | BOLT | 40001-@ | |
| 14 | 705-17-04980 | WASHER | 40001-@ | |
| 15 | 202-63-74320 | ROD | 40001-44999 | |
| 16 | 707-76-65220 | BUSHING | 40001-@ | |
| 17 | 707-77-65110 | SEAL,DUST (KIT) | 40001-@ | |
| 18 | 07020-00675 | FITTING,GREASE | 40001-@ | |
| 19 | 707-36-90300 | PISTON | 40001-44999 | |
| 20 | 707-44-90180 | RING,PISTON (KIT) | 40001-@ | |
| 21 | 707-39-90110 | RING,WEAR (KIT) | 40001-@ | |
| 22 | 707-44-90911 | RING | 40001-@ | |
| 23 | 07165-14244 | NUT,NYLON | 40001-44999 | |
| 24 | 202-63-74373 | TUBE | 40001-44999 | |
| 25 | 202-63-74580 | TUBE | 40001-@ | |
| 26 | 07000-13025 | O-RING (KIT) | 40001-@ | |
| 27 | 01010-50850 | BOLT | 40001-44999 | |
| 28 | 01643-50823 | WASHER | 40001-@ | |
| 29 | 707-88-96280 | BAND | 40001-40419 | |
| 30 | 707-88-95522 | BRACKET | 40001-40419 | |
| 31 | 707-88-96280 | BAND | 40001-@ | |
| 32 | 202-63-74390 | BRACKET | 40001-@ | |
| 33 | 01010-51035 | BOLT | 40420-44999 | |
| \0\01010-51035 | BOLT | 40001-40419 | ||
| 34 | 01643-51032 | WASHER | 40420-@ | |
| \0\01643-51032 | WASHER | 40001-40419 | ||
| 35 | 07283-22236 | CLIP | 40001-40419 | |
| 36 | 01599-01011 | NUT | 40001-40419 | |
| 37 | 01643-31032 | WASHER | 40001-40419 | |
| 38 | 01010-51025 | BOLT | 40001-44999 | |
| 39 | 01643-31032 | WASHER | 40001-@ | |
| ==================== | ||||
| 707-98-27600 | SERVICE KIT | 40001-44999 |
