| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07098-21217 | HOSE | ||
| 2 | 07371-51260 | FLANGE | ||
| 3 | 01010-31245 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 07000-13038 | O-RING | ||
| 6 | TUBE (SEE PG T-0020) | |||
| 7 | BUCKET CYLINDER (SEE PG T-0080) | |||
| 8 | ARM, SHORT (SEE PG T-0062) |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc650 5/pc650lc 5 s/n a25001 up
- Work equipment
- Bucket cylinder piping 2.9m short arm
Поиск по каталогу

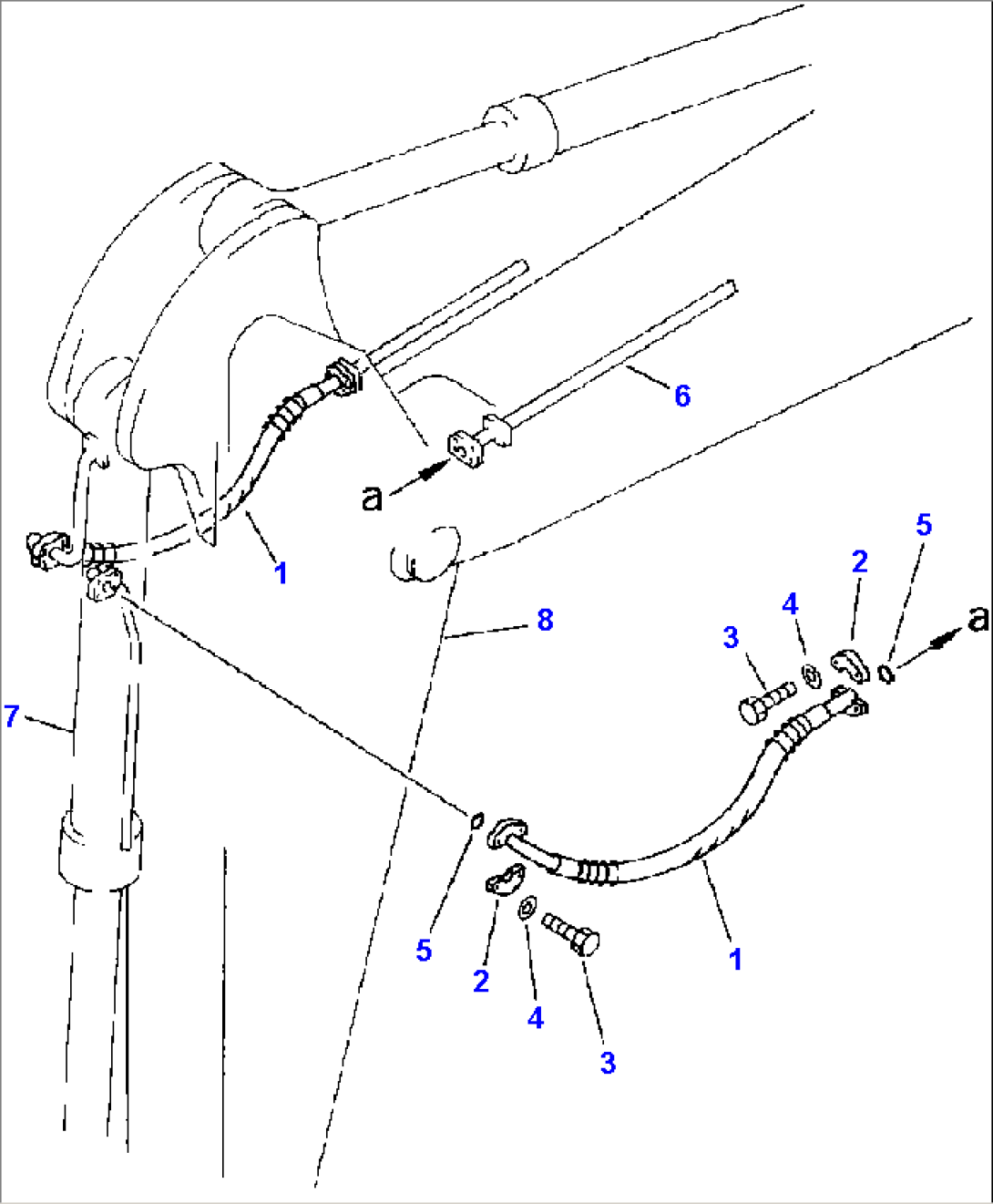

BUCKET CYLINDER PIPING 2.9M SHORT ARM
