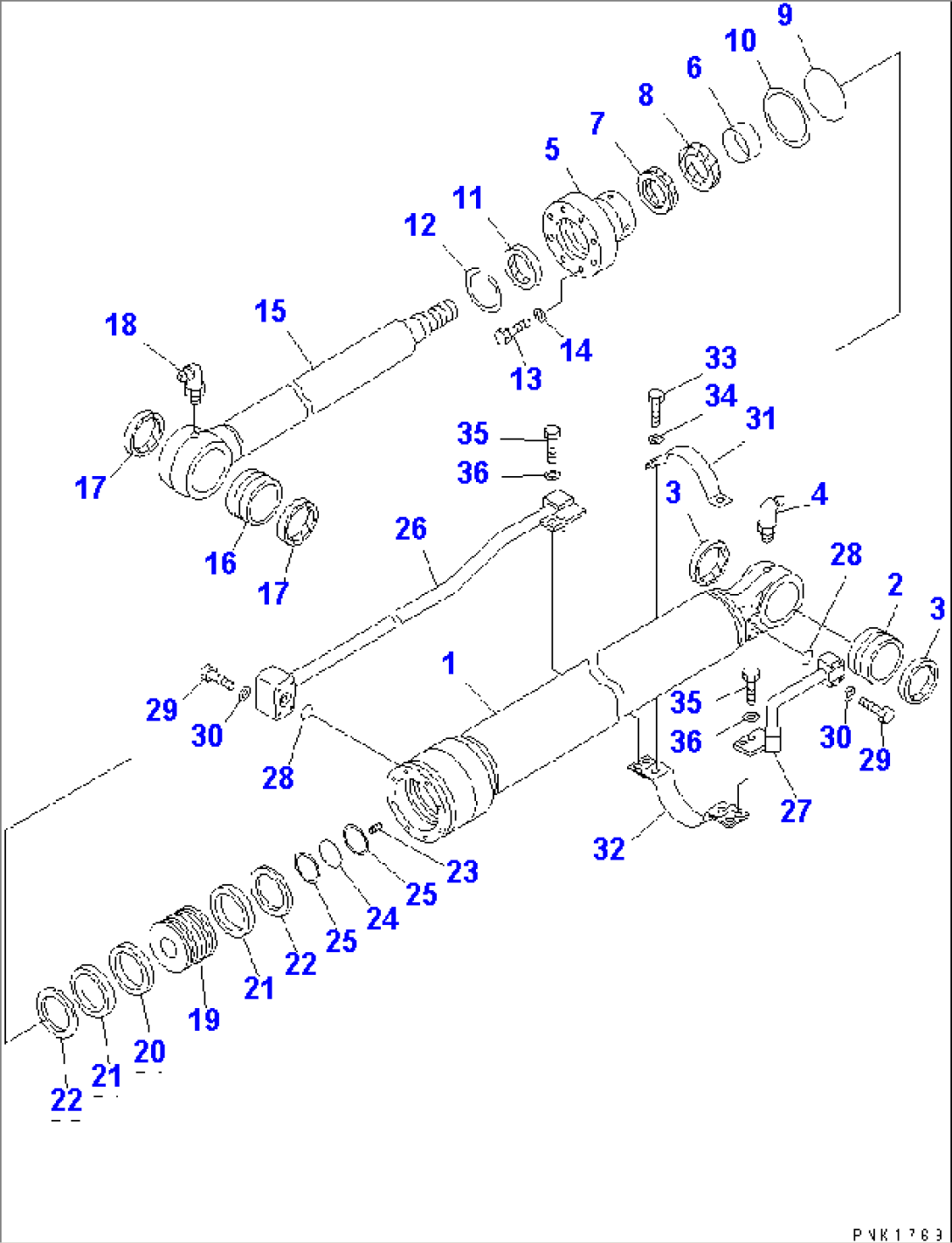

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\202-63-X9080) | CYLINDER GROUP | 46473- | |
| G1 | (\8\202-63-X7730) | CYLINDER GROUP | 45000-46472 | |
| ==================== | ||||
| 202-63-07730 | CYLINDER ASS'Y,BUCKET | 45000- | ||
| 1 | 202-63-75140 | CYLINDER,BUCKET | 45000- | |
| 2 | 203-70-66150 | BUSHING | 45000- | |
| 3 | 07145-00065 | SEAL,DUST (KIT) | 40001- | |
| 4 | 07020-00675 | FITTING,GREASE | 40001- | |
| 5 | 707-27-90920 | HEAD,CYLINDER | 45000- | |
| 6 | 707-52-90360 | BUSHING | 45000- | |
| 7 | 707-51-60030 | PACKING,ROD (KIT) | 40001- | |
| 8 | 707-51-60630 | RING,BUFFER (KIT) | 40001- | |
| 9 | 07000-15080 | O-RING (KIT) | 45000- | |
| 10 | 707-35-90980 | RING,BACK-UP (KIT) | 45000- | |
| 11 | 141-63-93270 | SEAL,DUST (KIT) | 40001- | |
| 12 | 07179-12074 | RING,SNAP | 40001- | |
| 13 | 01010-81465 | BOLT | 40001- | |
| 14 | 705-17-04980 | WASHER | 40001- | |
| 15 | 202-63-75120 | ROD | 45000- | |
| 16 | 707-76-65220 | BUSHING | 40001- | |
| 17 | 707-77-65110 | SEAL,DUST (KIT) | 40001- | |
| 18 | 07020-00675 | FITTING,GREASE | 40001- | |
| 19 | 707-36-90350 | PISTON | 45000- | |
| 20 | 707-44-90180 | RING,PISTON (KIT) | 40001- | |
| 21 | 707-39-90110 | RING,WEAR (KIT) | 40001- | |
| 22 | 707-44-90911 | RING | 40001- | |
| 23 | 01310-01016 | SCREW | 45000- | |
| 24 | 07000-15055 | O-RING (KIT) | 45000- | |
| 25 | 707-35-90920 | RING,BACK-UP (KIT) | 45000- | |
| 26 | 202-63-75170 | TUBE | 45000- | |
| 27 | 202-63-74580 | TUBE | 40001- | |
| 28 | 07000-13025 | O-RING (KIT) | 40001- | |
| 29 | 01010-80850 | BOLT | 45000- | |
| 30 | 01643-50823 | WASHER | 40001- | |
| 31 | 707-88-96280 | BAND | 40001- | |
| 32 | 202-63-74390 | BRACKET | 40001- | |
| 33 | 01010-81035 | BOLT | 45000- | |
| 34 | 01643-51032 | WASHER | 40420- | |
| 35 | 01010-81025 | BOLT | 45000- | |
| 36 | 01643-31032 | WASHER | 40001- | |
| ==================== | ||||
| 707-98-27620 | SERVICE KIT | 45000- |
