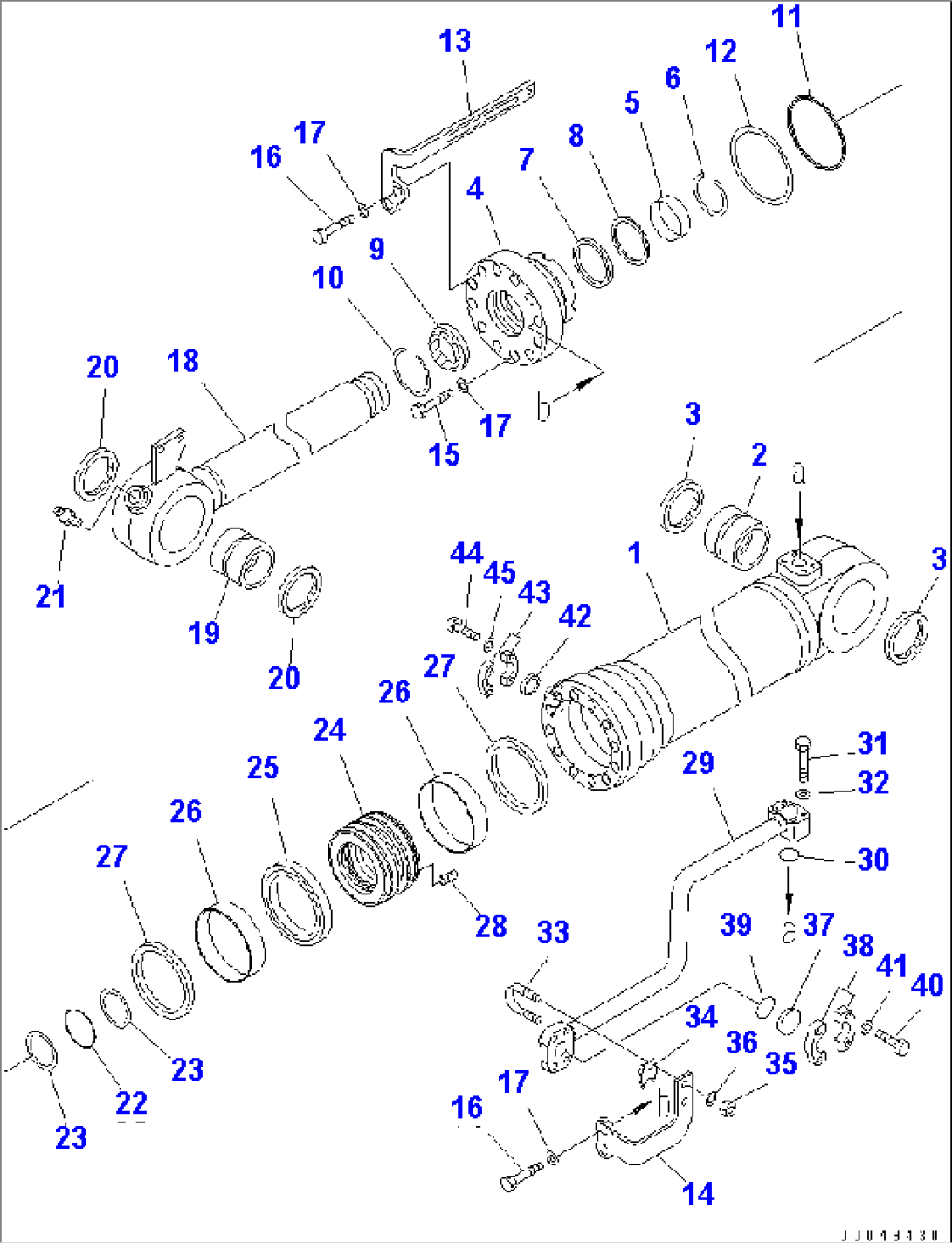

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-XP550) | CYLINDER,(FINAL COATING) | 85001- | |
| ==================== | ||||
| 707-01-0K630 | CYLINDER ASS'Y,DUMP | 85001- | ||
| 1 | 721-13-16190 | CYLINDER | 85001- | |
| 2 | 707-76-12110 | BUSHING | 85001- | |
| 3 | 421-09-11350 | SEAL,DUST (KIT) | 85001- | |
| 4 | 707-27-16950 | HEAD,CYLINDER | 85001- | |
| 5 | 707-52-90780 | BUSHING | 85001- | |
| 6 | 707-75-10160 | RING,SNAP | 85001- | |
| 7 | 707-51-10030 | PACKING,ROD (KIT) | 85001- | |
| 8 | 707-51-10650 | RING,BUFFER (KIT) | 85001- | |
| 9 | 176-63-56170 | SEAL,DUST (KIT) | 85001- | |
| 10 | 07179-13114 | RING,SNAP | 85001- | |
| 11 | 07000-15150 | O-RING (KIT) | 85001- | |
| 12 | 707-35-91640 | RING,BACK-UP (KIT) | 85001- | |
| 13 | 707-88-27960 | PLATE | 85001- | |
| 14 | 707-88-28560 | BRACKET | 85001- | |
| 15 | 01010-82085 | BOLT | 85001- | |
| 16 | 01010-82095 | BOLT | 85001- | |
| 17 | 707-88-75310 | WASHER | 85001- | |
| 18 | 721-58-10170 | ROD,PISTON | 85001- | |
| 19 | 707-76-12030 | BUSHING | 85001- | |
| 20 | 421-09-11350 | SEAL,DUST (KIT) | 85001- | |
| 21 | 07020-00000 | FITTING,GREASE | 85001- | |
| 22 | 07000-B5100 | O-RING (KIT) | 85001- | |
| 23 | 07001-05100 | RING,BACK-UP (KIT) | 85001- | |
| 24 | 707-36-16580 | PISTON | 85001- | |
| 25 | 707-44-16190 | RING,PISTON (KIT) | 85001- | |
| 26 | 707-39-16120 | RING,WEAR (KIT) | 85001- | |
| 27 | 707-44-16910 | RING | 85001- | |
| 28 | 01310-01216 | SCREW | 85001- | |
| 29 | 707-86-13660 | TUBE | 85001- | |
| 30 | 07000-13035 | O-RING (KIT) | 85001- | |
| 31 | 07372-21060 | BOLT | 85001- | |
| 32 | 01643-51032 | WASHER | 85001- | |
| 33 | 07283-33450 | CLIP | 85001- | |
| 34 | 07283-53444 | SEAT | 85001- | |
| 35 | 01597-01009 | NUT | 85001- | |
| 36 | 01643-31032 | WASHER | 85001- | |
| 37 | 07378-11210 | HEAD | 85001- | |
| 38 | 07371-51260 | FLANGE,SPLIT | 85001- | |
| 39 | 07000-13038 | O-RING | 85001- | |
| 40 | 01010-81245 | BOLT | 85001- | |
| 41 | 01643-31232 | WASHER | 85001- | |
| 42 | 707-88-33040 | CAP | 85001- | |
| 43 | 07371-31049 | FLANGE,SPLIT | 85001- | |
| 44 | 07372-21035 | BOLT | 85001- | |
| 45 | 01643-51032 | WASHER | 85001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-99-66360 | SERVICE KIT,DUMP CYLINDER | 85001- |
