| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-XG210) | CYLINDER GROUP | 9501- | |
| ==================== | ||||

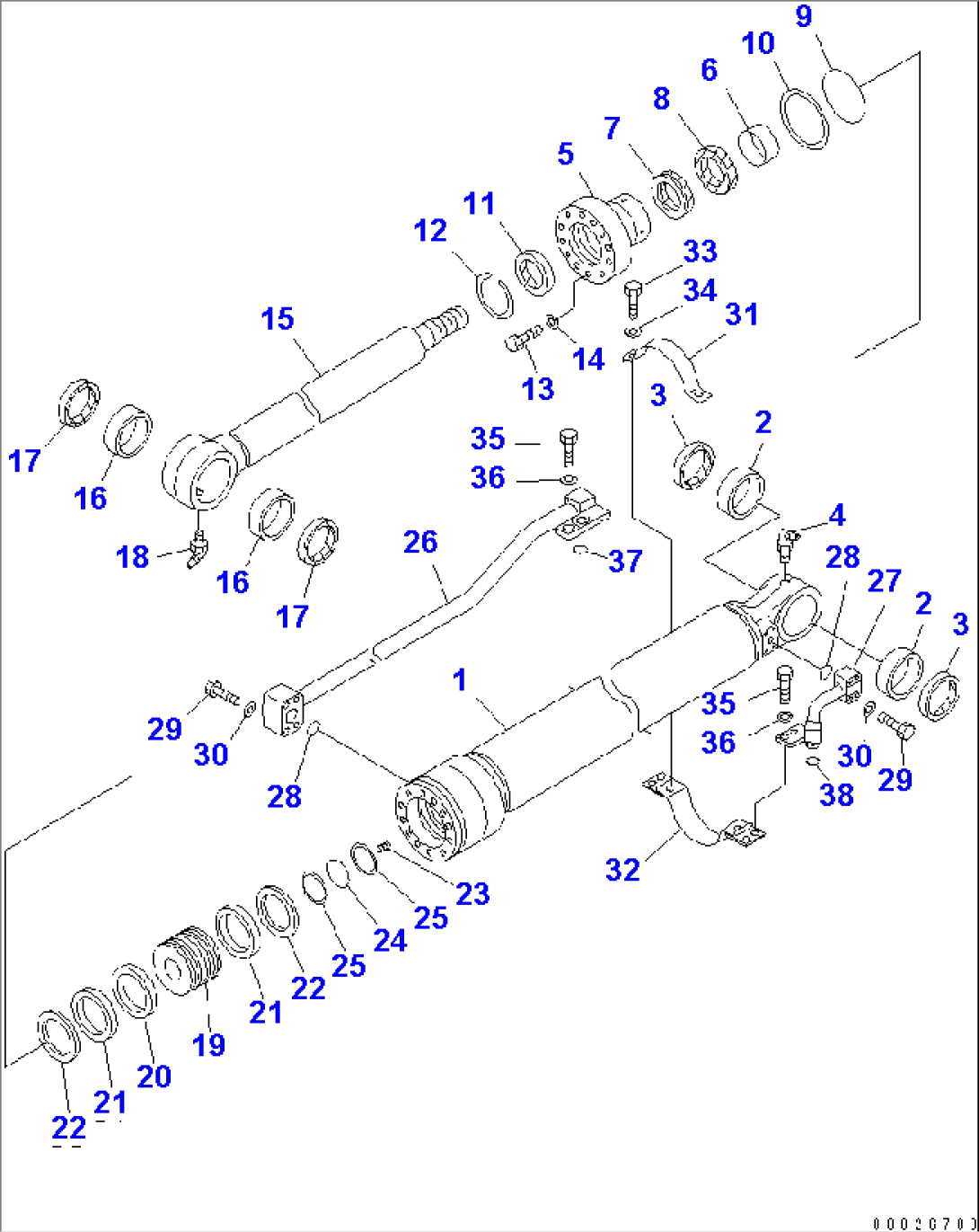

| 707-01-0G210 | CYLINDER ASS'Y,BUCKET | 9501- | ||
| 1 | 707-13-95080 | CYLINDER | 9501- | |
| 2 | 707-76-65590 | BUSHING | 9501- | |
| 3 | 07145-00065 | SEAL,DUST (KIT) | 9501- | |
| 4 | 07020-00675 | FITTING,GREASE | 9501- | |
| 5 | 707-27-95921 | HEAD,CYLINDER | 9501- | |
| 6 | 707-52-90420 | BUSHING | 9501- | |
| 7 | 707-51-65030 | PACKING,ROD (KIT) | 9501- | |
| 8 | 707-51-65640 | RING,BUFFER (KIT) | 9501- | |
| 9 | 07000-15085 | O-RING (KIT) | 9501- | |
| 10 | 707-35-90970 | RING,BACK-UP (KIT) | 9501- | |
| 11 | 144-63-92170 | SEAL,DUST (KIT) | 9501- | |
| 12 | 07179-12079 | RING,SNAP | 9501- | |
| 13 | 01010-81465 | BOLT | 9501- | |
| 14 | 705-17-04980 | WASHER | 9501- | |
| 15 | 203-63-75121 | ROD | 9501- | |
| 16 | 707-76-65590 | BUSHING | 9501- | |
| 17 | 707-77-65110 | SEAL,DUST (KIT) | 9501- | |
| 18 | 07020-00675 | FITTING,GREASE | 9501- | |
| 19 | 707-36-95040 | PISTON | 9501- | |
| 20 | 707-44-95911 | RING,PISTON | 9501- | |
| 21 | 707-39-95030 | RING,WEAR (KIT) | 9501- | |
| 22 | 707-44-95180 | RING (KIT) | 9501- | |
| 23 | 01310-01016 | SCREW | 9501- | |
| 24 | 707-34-55020 | O-RING (KIT) | 9501- | |
| 25 | 707-35-90610 | RING,BACK-UP (KIT) | 9501- | |
| 26 | 707-86-47920 | TUBE | 9501- | |
| 27 | 707-86-55230 | TUBE | 9501- | |
| 28 | 07000-13025 | O-RING (KIT) | 9501- | |
| 29 | 01010-80850 | BOLT | 9501- | |
| 30 | 01643-50823 | WASHER | 9501- | |
| 31 | 707-88-21730 | BAND | 9501- | |
| 32 | 707-88-25120 | BRACKET | 9501- | |
| 33 | 01010-81035 | BOLT | 9501- | |
| 34 | 01643-31032 | WASHER | 9501- | |
| 35 | 01010-81025 | BOLT | 9501- | |
| 36 | 01643-31032 | WASHER | 9501- | |
| 37 | 02896-11012 | O-RING (KIT) | 9501- | |
| 38 | 02896-11015 | O-RING (KIT) | 9501- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-99-25800 | SERVICE KIT,BUCKET CYLINDER | 9501- |
