| Item | Part No. | Part Name | Qty | Serial No. |

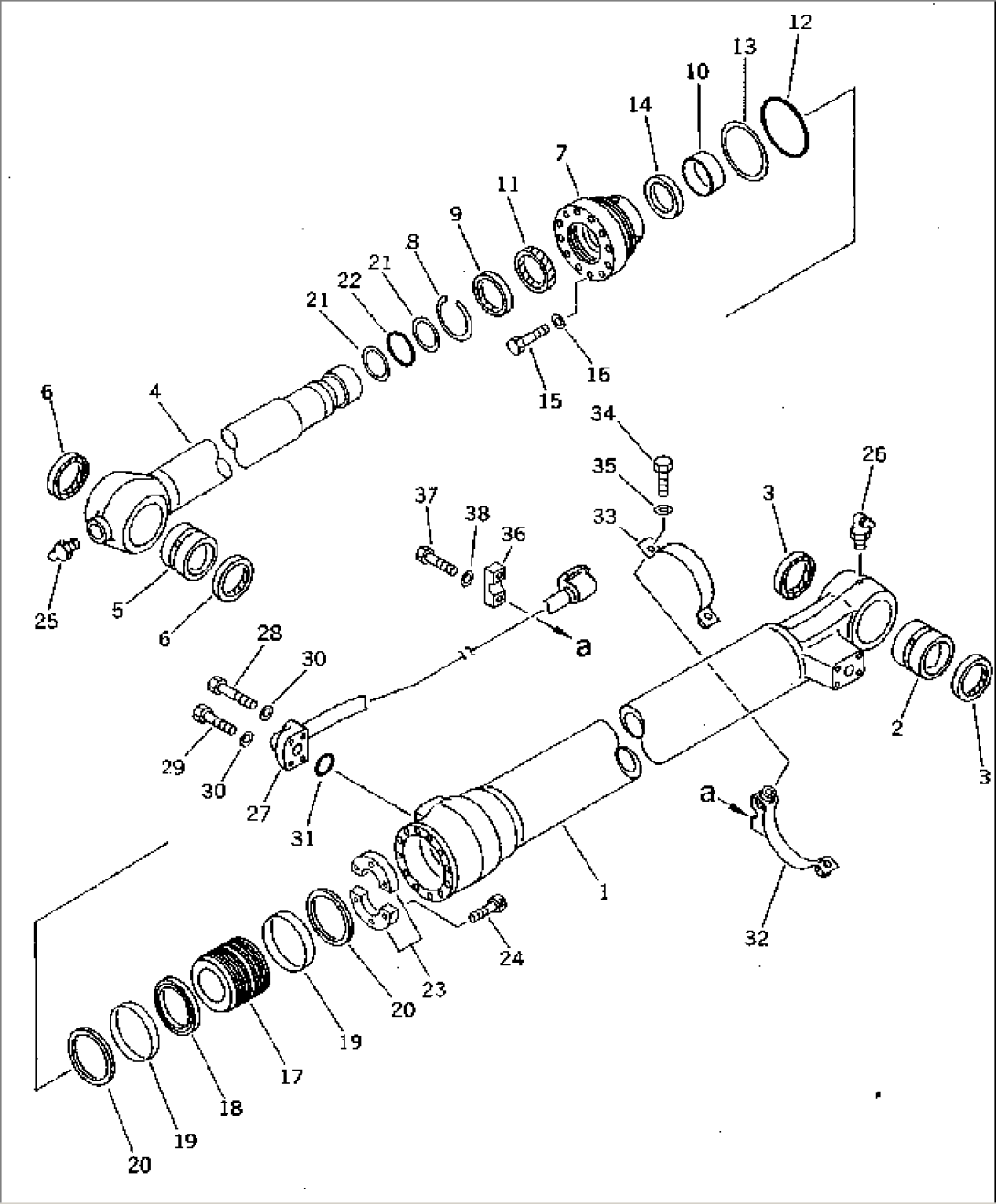

| G-1 | (\8\206-63-X2140) | BUCKET CYLINDER G. | 50001-52851 | |
| ==================== | ||||
| 206-63-02140 | CYLINDER ASS'Y | 50001-52851 | ||
| 1 | 206-63-73540 | CYLINDER | 50001-52851 | |
| 2 | 707-76-80010 | BUSHING | 50001-@ | |
| 3 | 07145-00080 | SEAL,DUST (KIT) | 50001-@ | |
| 4 | 206-63-73520 | ROD,PISTON | 50001-52851 | |
| 5 | 707-76-80020 | BUSHING | 50001-@ | |
| 6 | 205-70-62140 | SEAL,DUST (KIT) | 50001-@ | |
| 7 | 707-27-14620 | HEAD,CYLINDER | 50001-52851 | |
| 8 | 07179-13114 | RING,SNAP | 50001-@ | |
| 9 | 176-63-56170 | SEAL,DUST (KIT) | 50001-@ | |
| 10 | 707-52-90750 | BUSHING | 50001-52851 | |
| 11 | 707-51-10030 | PACKING,ROD (KIT) | 50001-@ | |
| 12 | 07000-15135 | O-RING (KIT) | 50001-52851 | |
| 13 | 07001-05135 | RING,BACK-UP (KIT) | 50001-52851 | |
| 14 | 707-51-10630 | RING,BUFFER (KIT) | 50001-@ | |
| 15 | 01010-81875 | BOLT | 50001-@ | |
| 16 | 707-41-11840 | WASHER | 50001-@ | |
| 17 | 707-36-14340 | PISTON | 50001-52851 | |
| 18 | 707-44-14180 | RING,PISTON (KIT) | 50001-@ | |
| 19 | 707-39-14820 | RING,WEAR (KIT) | 50001-@ | |
| 20 | 707-44-14910 | RING | 50001-@ | |
| 21 | 707-35-52920 | RING,BACK-UP (KIT) | 50001-52851 | |
| 22 | 07000-12080 | O-RING (KIT) | 50001-52851 | |
| 23 | 707-40-14870 | SPACER | 50001-52851 | |
| 24 | 01252-31250 | BOLT | 50001-52851 | |
| 25 | 07020-00000 | FITTING,GREASE | 50001-@ | |
| 26 | 07020-00900 | FITTING,GREASE | 50001-@ | |
| 27 | 206-63-73570 | TUBE | 50001-52851 | |
| 28 | 07372-21060 | BOLT | 50001-52851 | |
| 29 | 07372-21045 | BOLT | 50001-52851 | |
| 30 | 01643-51032 | WASHER | 50001-52851 | |
| 31 | 07000-13030 | O-RING (KIT) | 50001-@ | |
| 32 | 707-88-87100 | BRACKET | 50001-@ | |
| 33 | 707-88-87160 | BAND | 50001-@ | |
| 34 | 01010-51035 | BOLT | 50001-@ | |
| 35 | 01643-51032 | WASHER | 50001-@ | |
| 36 | 707-88-13590 | CLAMP | 50001-@ | |
| 37 | 01010-51040 | BOLT | 50001-52851 | |
| 38 | 01643-31032 | WASHER | 50001-@ | |
| ==================== |
