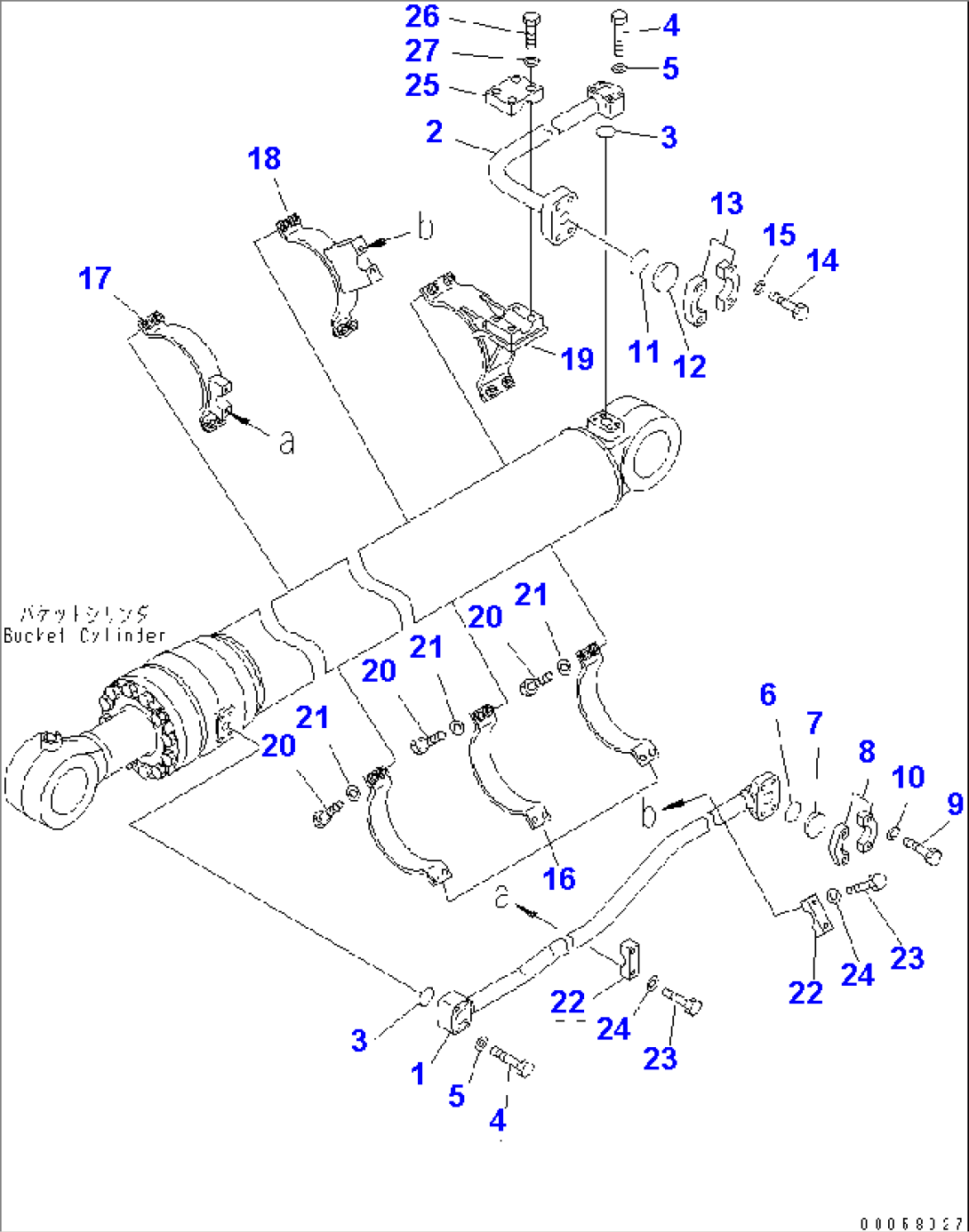

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-XR701) | CYLINDER GROUP,L.H. (FINAL COATING) | 30015- | |
| G2 | (\8\707-01-XR711) | CYLINDER GROUP,R.H. (FINAL COATING) | 30015- | |
| ==================== | ||||
| 1 | 707-86-13360 | TUBE,L.H. | 30001- | |
| 1 | 707-86-13370 | TUBE,R.H. | 30001- | |
| 2 | 21N-63-72580 | TUBE,L.H. | 30001- | |
| 2 | 21N-63-72680 | TUBE,R.H. | 30001- | |
| 3 | 07000-13035 | O-RING (KIT) | 30001- | |
| 4 | 07372-21060 | BOLT | 30001- | |
| 5 | 01643-51032 | WASHER | 30001- | |
| 6 | 07000-13038 | O-RING | 30001- | |
| 7 | 07378-11210 | HEAD | 30001- | |
| 8 | 07371-51260 | FLANGE | 30001- | |
| 9 | 01010-81245 | BOLT | 30001- | |
| 10 | 01643-31232 | WASHER | 30001- | |
| 11 | 07000-13048 | O-RING | 30001- | |
| 12 | 07378-11410 | HEAD | 30001- | |
| 13 | 07371-51470 | FLANGE | 30001- | |
| 14 | 01010-81455 | BOLT | 30001- | |
| 15 | 01643-31445 | WASHER | 30001- | |
| 16 | 707-88-26160 | BAND | 30001- | |
| 17 | 707-88-28330 | BRACKET | 30001- | |
| 18 | 707-88-28340 | BRACKET | 30001- | |
| 19 | 707-88-28930 | BRACKET | 30015- | |
| 20 | 07372-21245 | BOLT | 30001- | |
| 21 | 01643-51232 | WASHER | 30001- | |
| 22 | 707-88-10150 | CLAMP | 30001- | |
| 23 | 01010-81245 | BOLT | 30001- | |
| 24 | 01643-31232 | WASHER | 30001- | |
| 25 | 707-88-28940 | SEAT | 30015- | |
| 26 | 01010-81655 | BOLT | 30015- | |
| 27 | 01643-51645 | WASHER | 30015- | |
| ==================== | ||||
| K | 707-99-72390 | SERVICE KIT | 30001- |
