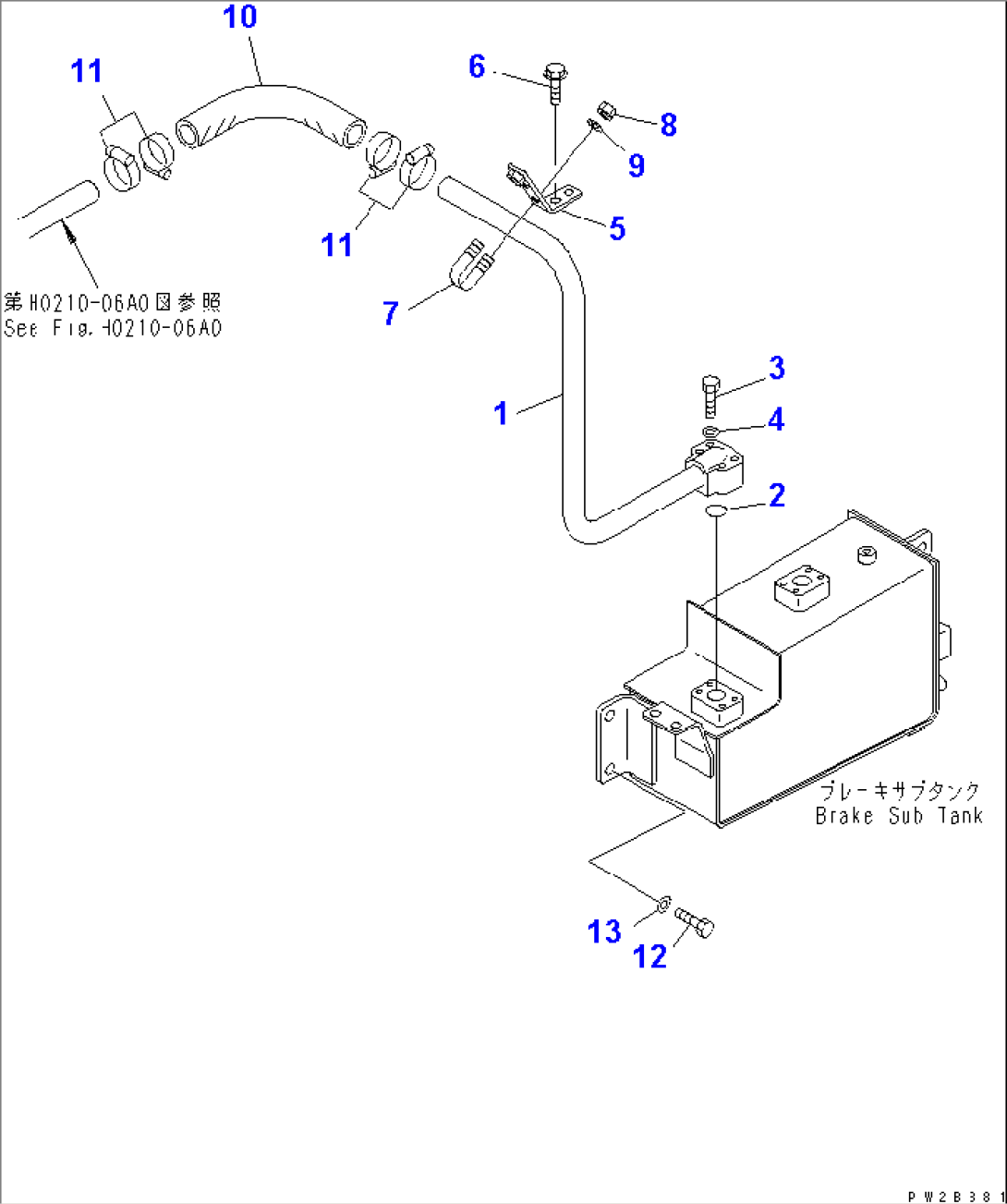

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-43-17510 | TUBE | 1001- | |
| 2 | 07000-F3035 | O-RING | 1001- | |
| 3 | 07372-21060 | BOLT | 1001- | |
| 4 | 01643-51032 | WASHER | 1001- | |
| 5 | 56C-43-17531 | BRACKET | 1001- | |
| 6 | 01435-01025 | BOLT | 1001- | |
| 7 | 07283-33442 | CLIP | 1001- | |
| 8 | 01597-01009 | NUT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 56C-43-17540 | HOSE | 1001- | |
| 11 | 07289-00045 | CLAMP | 1001- | |
| 12 | 01010-81635 | BOLT | 1001- | |
| 13 | 01643-31645 | WASHER | 1001- |
