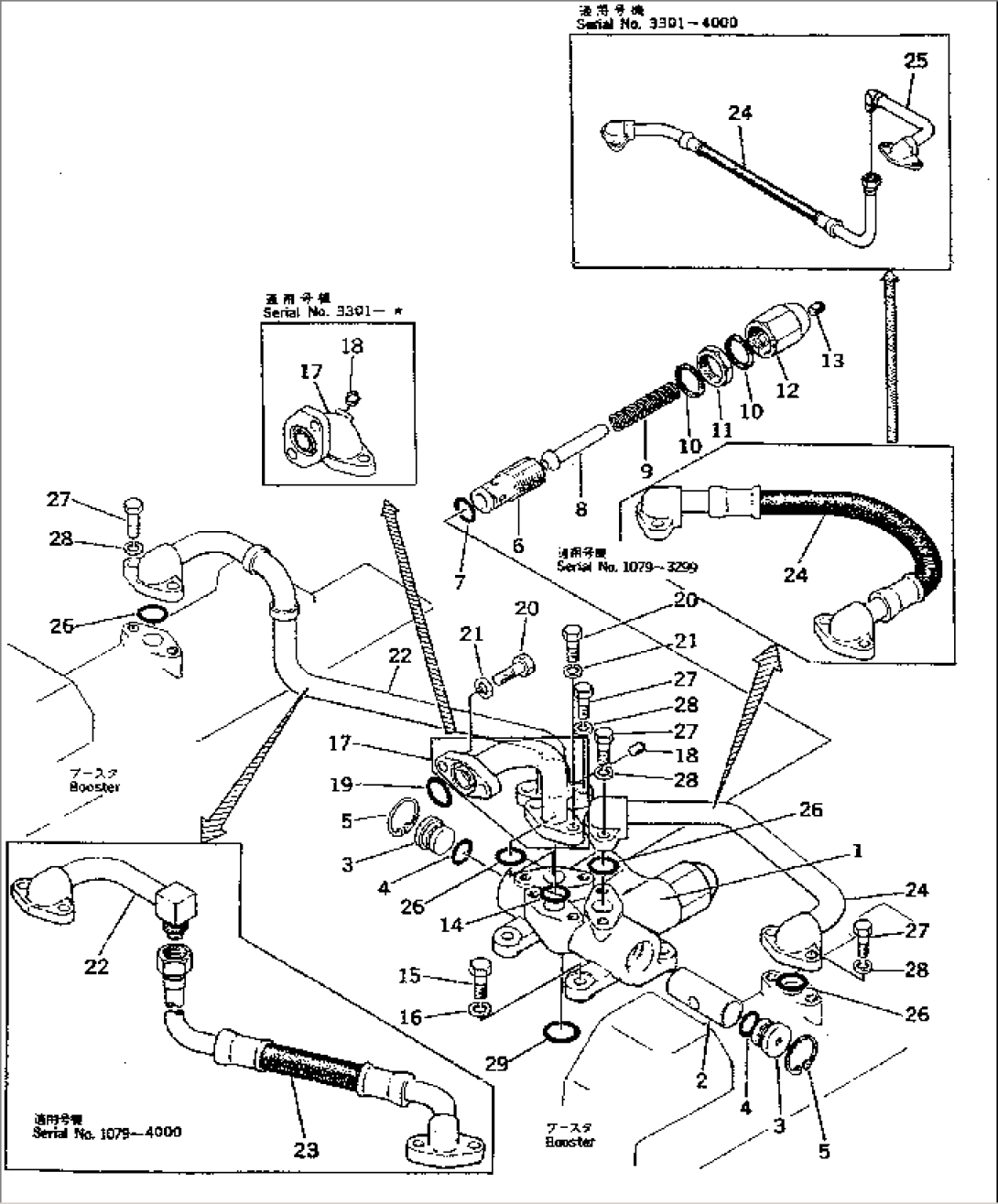

| Item | Part No. | Part Name | Qty | Serial No. |
| 170-33-00041 | RELIEF VALVE ASS'Y | 1010-@ | ||
| 1 | 170-33-13510 | HOUSING | 1010-@ | |
| 2 | 170-33-13520 | PISTON | 1010-@ | |
| 3 | 170-33-13530 | STOPPER | 1010-@ | |
| 4 | 07000-03025 | O-RING | 1010-@ | |
| 5 | 04065-03515 | RING | 1010-@ | |
| 6 | 170-33-13550 | SEAT | 1010-@ | |
| 7 | 07000-03020 | O-RING | 1010-@ | |
| 8 | 175-33-13230 | PLUNGER | 1010-@ | |
| 9 | 170-33-13572 | SPRING | 1010-@ | |
| 10 | 07003-03036 | GASKET | 1010-@ | |
| 11 | 170-33-13580 | NUT | 1010-@ | |
| 12 | 170-33-13592 | NUT | 1010-@ | |
| 13 | 07042-00108 | PLUG | 1010-@ | |
| 14 | 07000-03028 | O-RING | 1010-@ | |
| 15 | 01010-31235 | BOLT | 1010-@ | |
| 16 | 01602-01236 | WASHER | 1010-@ | |
| 154-40-00040 | TUBE ASS'Y | 3301-@ | ||
| 195-33-00080 | TUBE ASS'Y | 1010-3299 | ||
| 17 | \6\ | TUBE | 3301-@ | |
| \6\ | TUBE | 1010-3299 | ||
| 18 | 07042-00108 | PLUG | 1010-@ | |
| 19 | 07000-03028 | O-RING | 1010-@ | |
| 20 | 01010-31030 | BOLT | 1010-@ | |
| 21 | 01602-01030 | WASHER | 1010-@ | |
| 22 | 195-33-12113 | TUBE,R.H. | 1079-4000 | |
| \3\195-33-12112 | TUBE,R.H. | 1010-1078 | ||
| (195-33-12113{195-33-12150)} | ||||
| 23 | 195-33-12150 | HOSE ASS'Y | 1079-4000 | |
| 24 | 195-33-12260 | HOSE ASS'Y | 3301-4000 | |
| \3\195-33-12123 | HOSE ASS'Y | 1079-3299 | ||
| (195-33-12260{195-33-12270)} | ||||
| \0\195-33-12122 | TUBE,L.H. | 1010-1078 | ||
| 25 | 195-33-12270 | TUBE,L.H. | 3301-4000 | |
| 26 | 07000-03025 | O-RING (KIT) | 1010-@ | |
| 27 | 01010-31030 | BOLT | 1010-4000 | |
| 28 | 01602-01030 | WASHER | 1010-@ | |
| 29 | 07000-03032 | O-RING (KIT) | 1010-@ |
