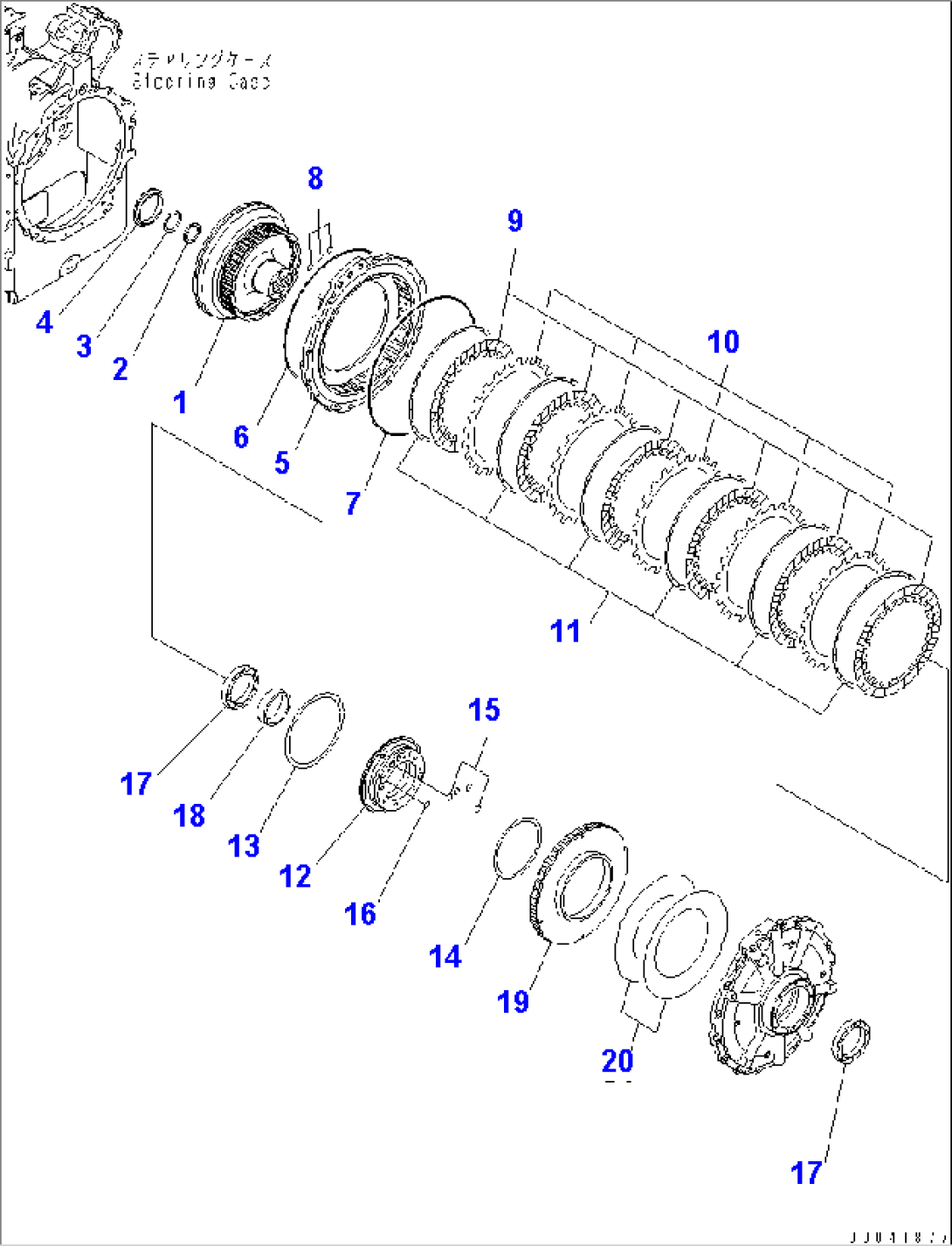

| Item | Part No. | Part Name | Qty | Serial No. |
| (17A-22-41000) | STEERING ASS'Y | 80001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2370-51A0 TO F2370-59A0. | ||||
| 17A-22-00091 | BRAKE ASS'Y | 80001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2370-52A0 AND F2370-53A0. | ||||
| 1 | 17A-22-12111 | HUB | 80001- | |
| 2 | 17A-22-18121 | SPACER | 80001- | |
| 3 | 04065-07225 | RING | 80001- | |
| 4 | 17A-22-12251 | BUSHING | 80001- | |
| 5 | 17A-22-41180 | DRUM | 80001- | |
| 6 | 07000-75465 | O-RING | 80001- | |
| 7 | 07000-75490 | O-RING | 80001- | |
| 8 | 07000-73025 | O-RING | 80001- | |
| 9 | 17A-22-11170 | DISC | 80001- | |
| 10 | 17A-22-12120 | PLATE | 80001- | |
| 11 | 17A-22-12130 | SPRING | 80001- | |
| 12 | 17A-22-12162 | CYLINDER | 80001- | |
| 13 | 113-15-12840 | RING | 80001- | |
| 14 | 103-15-29210 | SEAL | 80001- | |
| 15 | 07000-72018 | O-RING | 80001- | |
| 16 | 07000-72021 | O-RING | 80001- | |
| 17 | 569-15-39620 | BEARING | 80001- | |
| 18 | 17A-22-12190 | SPACER | 80001- | |
| 19 | 17A-22-12150 | PISTON | 80001- | |
| 20 | 17M-22-43430 | SPRING ASS'Y | 80001- |
