| Item | Part No. | Part Name | Qty | Serial No. |

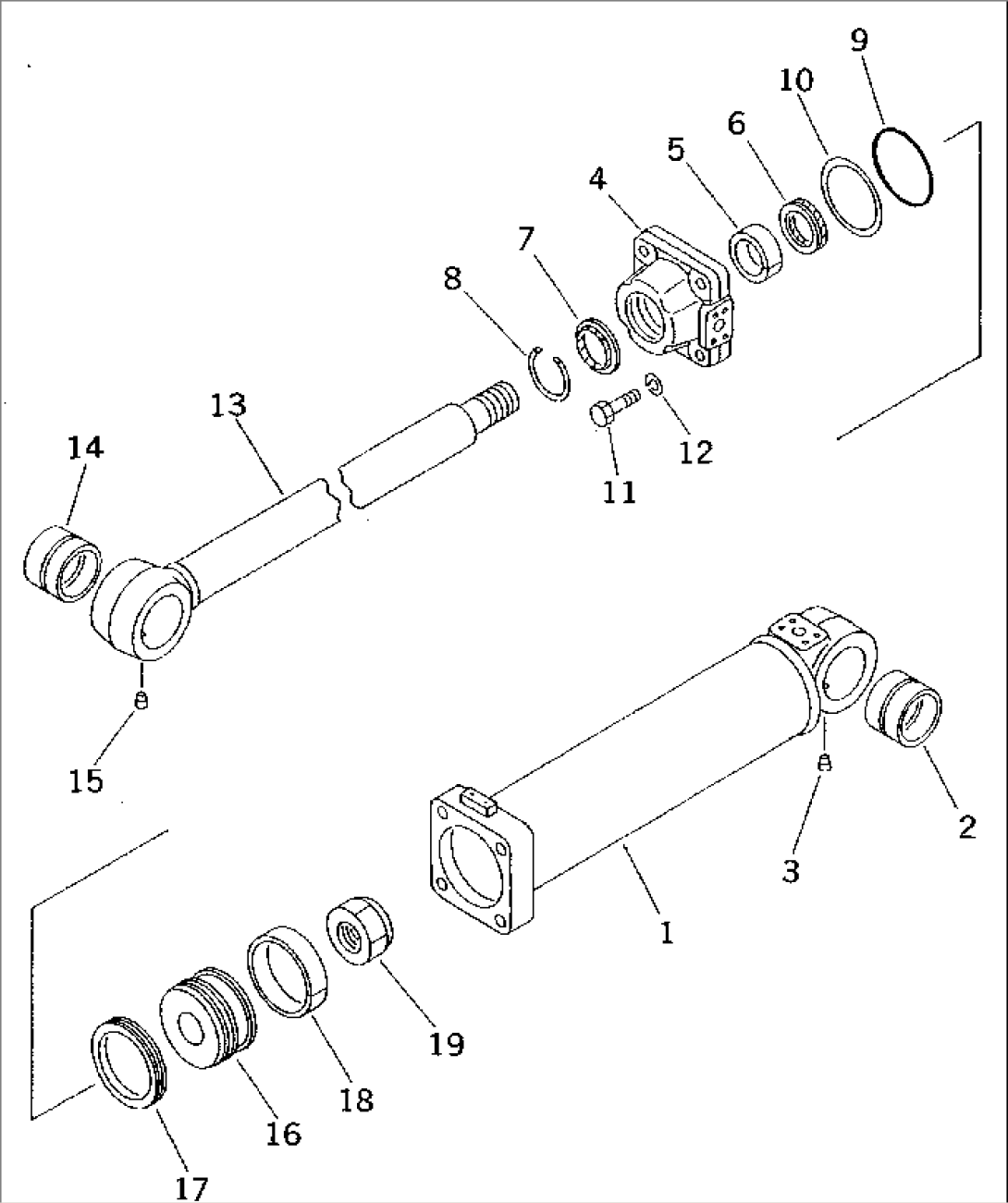

| 707-01-13270 | CYLINDER ASS'Y | 10001- | ||
| 1 | 707-13-13130 | CYLINDER | 10001- | |
| 2 | 707-76-75040 | BUSHING | 10001- | |
| 3 | 07043-00108 | PLUG | 10001- | |
| 4 | 707-27-13391 | HEAD,CYLINDER | 10001- | |
| 5 | 07177-07030 | BUSHING | 10001- | |
| 6 | 707-51-70030 | PACKING,ROD | 10001- | |
| 7 | 144-63-95170 | SEAL,DUST | 10001- | |
| 8 | 07179-00093 | RING,SNAP | 10001- | |
| 9 | 07000-12125 | O-RING | 10001- | |
| 10 | 07146-02126 | RING,BACK-UP | 10001- | |
| 11 | 01010-82275 | BOLT | 10001- | |
| 12 | 01602-22268 | WASHER,SPRING | 10001- | |
| 13 | 707-58-70330 | ROD,PISTON | 10001- | |
| 14 | 707-76-75040 | BUSHING | 10001- | |
| 15 | 07043-00108 | PLUG | 10001- | |
| 16 | 707-36-13280 | PISTON | 10001- | |
| 17 | 707-44-13180 | RING,PISTON | 10001- | |
| 18 | 07155-01330 | RING,WEAR | 10001- | |
| 19 | 07165-15252 | NUT | 10001- |
