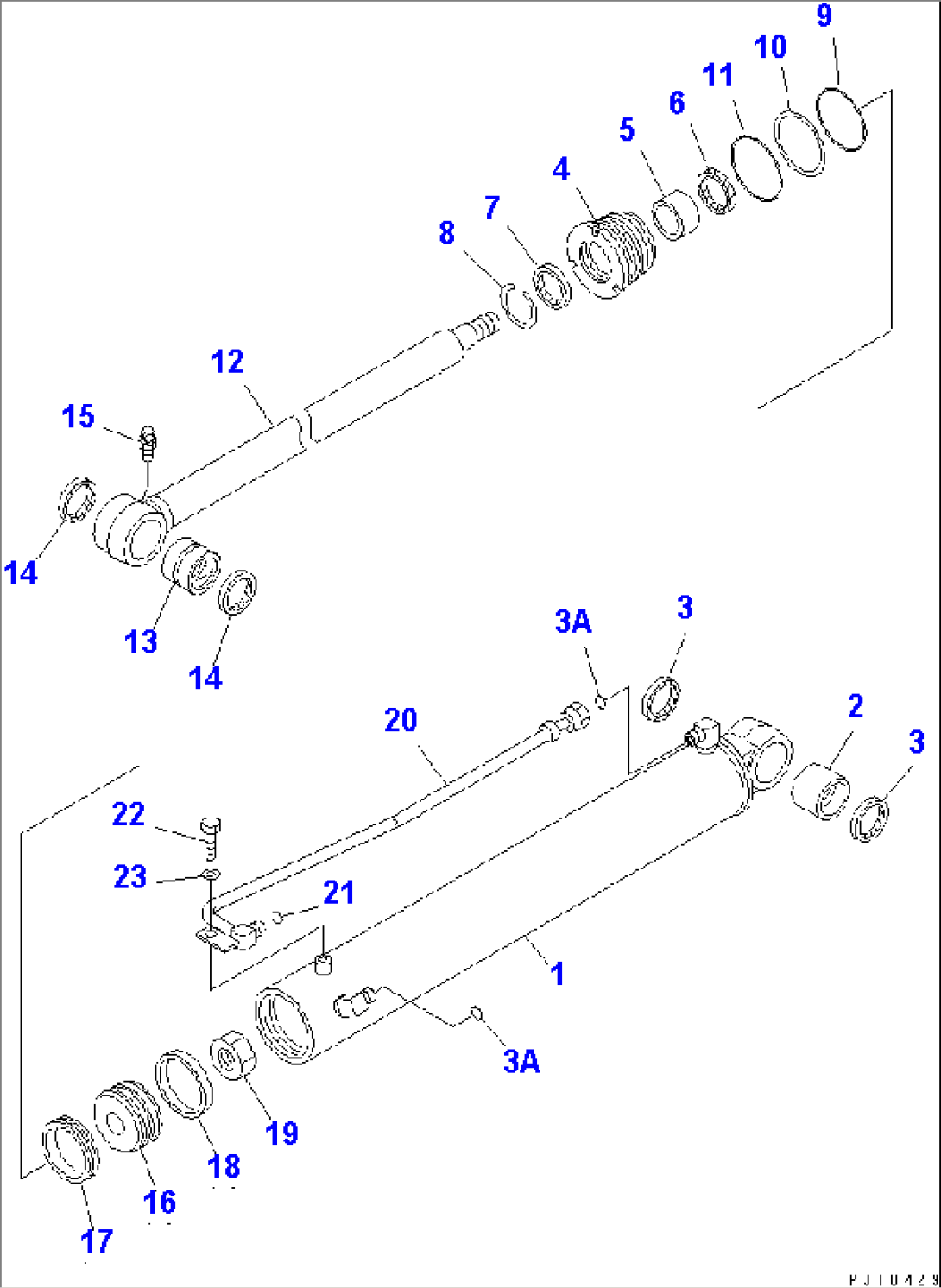

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-XC490) | SWING CYLINDER GROUP,(SUMMER GREEN) | | 5501- |
| G1 | (\8\707-00-XC620) | SWING CYLINDER GROUP,(NATURAL YELLOW) | | 5501- |
| | ==================== | | |
| 707-00-0C490 | CYLINDER ASS'Y,BOOM SWING | | 5501- |
| 1 | 707-11-90980 | CYLINDER | | 5501- |
| 2 | 07144-10505 | BUSHING | | 1001- |
| 3 | 07145-00050 | SEAL,DUST (KIT) | | 1001- |
| 3A | 02896-11009 | O-RING (KIT) | | 5501- |
| 4 | 707-29-90730 | HEAD,CYLINDER | | 1001- |
| 5 | 07177-05030 | BUSHING | | 1001- |
| 6 | 707-51-50211 | PACKING,ROD (KIT) | | 1001- |
| 7 | 176-63-92240 | SEAL,DUST (KIT) | | 1001- |
| 8 | 07179-12062 | RING,SNAP | | 1001- |
| 9 | 07000-12085 | O-RING (KIT) | | 1001- |
| 10 | 07146-02086 | RING,BACK-UP (KIT) | | 1001- |
| 11 | 07000-12090 | O-RING (KIT) | | 1001- |
| 12 | 22N-63-86121 | ROD,PISTON | | 1001- |
| 13 | 20T-870-1290 | BUSHING | | 1001- |
| 14 | 07145-00050 | SEAL,DUST (KIT) | | 1001- |
| 15 | 07020-00675 | FITTING,GREASE | | 1001- |
| 16 | 707-36-90260 | PISTON | | 1001- |
| 17 | 707-44-90180 | RING,PISTON (KIT) | | 1001- |
| 18 | 07156-00912 | RING,WEAR (KIT) | | 1001- |
| 19 | 707-67-36010 | NUT | | 5501- |
| 20 | 707-86-39010 | TUBE | | 5501- |
| 21 | 02896-11009 | O-RING (KIT) | | 5501- |
| 22 | 01010-81020 | BOLT | | 1001- |
| 23 | 01643-31032 | WASHER | | 1001- |
| | ==================== | | |
| | SERVICE KIT | | |
| K | 707-98-25710 | SERVICE KIT,SWING CYLINDER | | 5501- |
